AH20.10-P-0001-02RVK Notes on Application of Sealant to Coolant Pump Housing

Notes on Coolant Level

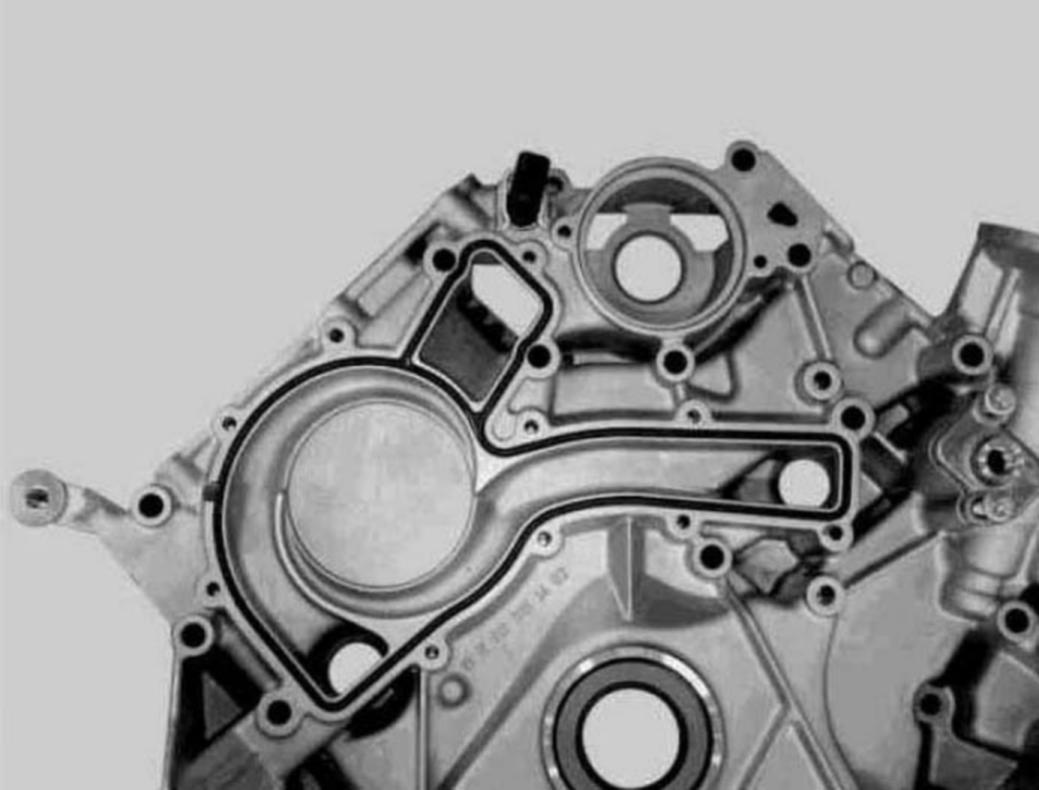

Application of sealant to timing case cover

The sealing surface must be cleaned. The sealant must be applied only to the timing case cover at the specified surfaces with a bead of 2.0 mm (0.5 mm). The sealant must be processed within 10 min. The sealing compound bead must not be spread. Only the sealing compound listed in the section Repair products may be used.
