AR01.20-P-5014RVK Remove/Install Cylinder Head Cover



AR01.20-P-5014RVK Remove/install cylinder head cover

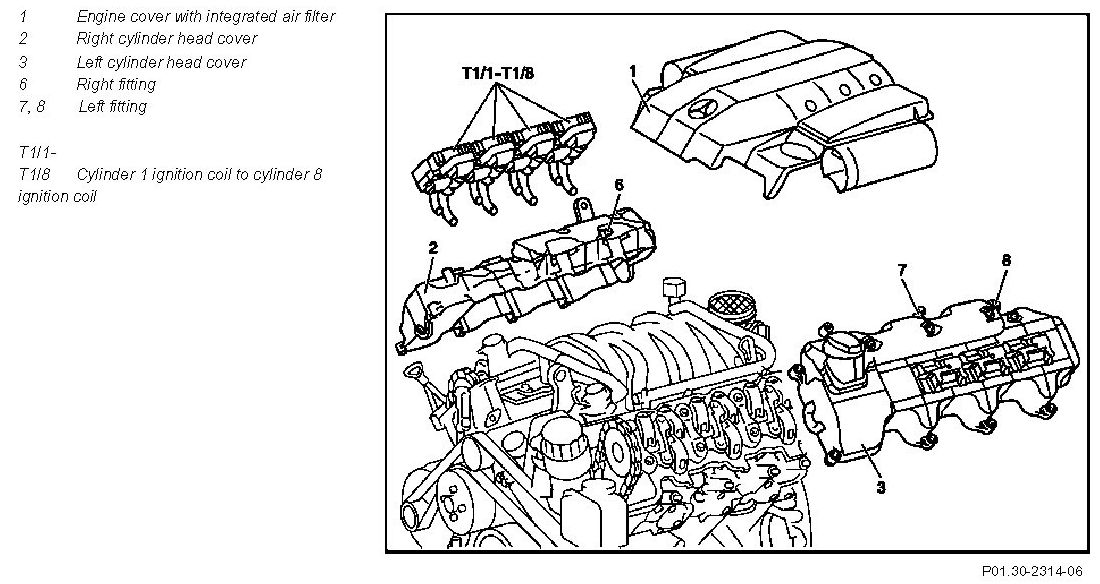

Component Identification:

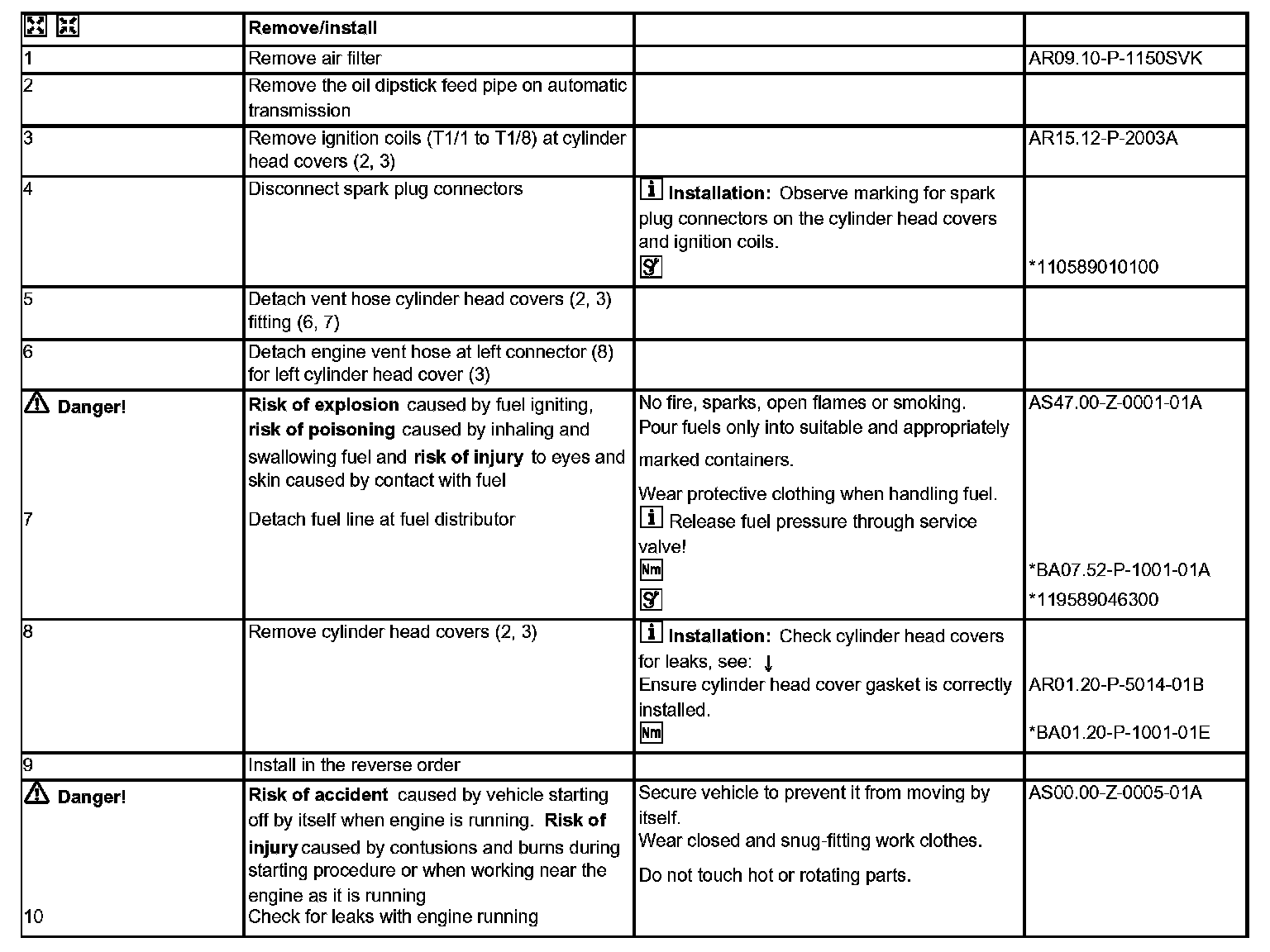

Remove/install Steps 1-10:

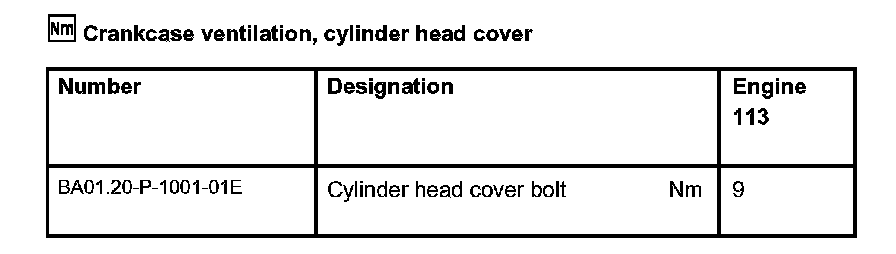

Crankcase ventilation, cylinder head cover:




Fuel distributor:




Special Tools:
