AR18.00-P-1250RKV Check Oil Pressure
AR18.00-P-1250RKV Check Oil Pressure
AR18.00-P-1250RKV Check oil pressure
Component Identification:

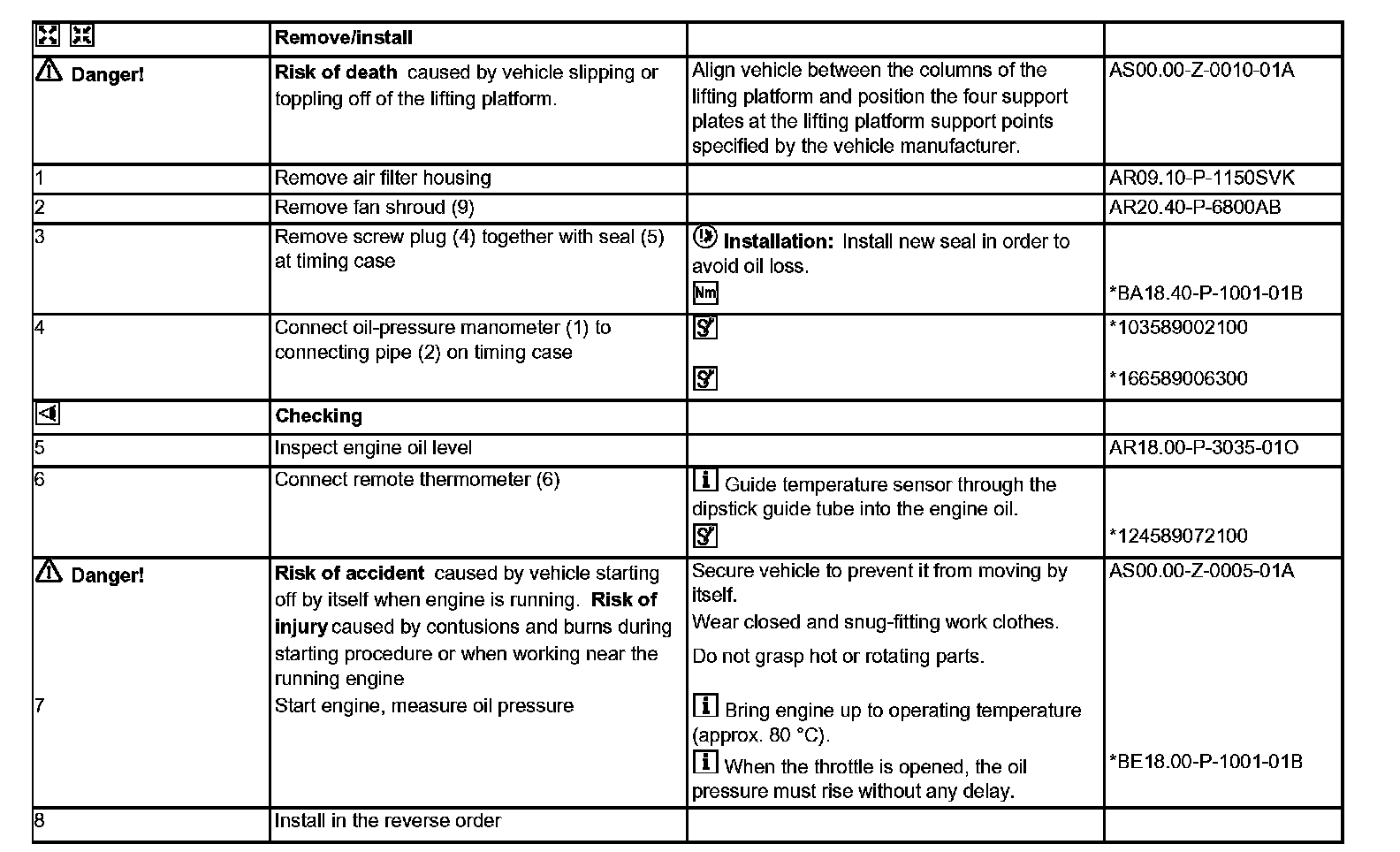

Remove/install Steps 1-8:

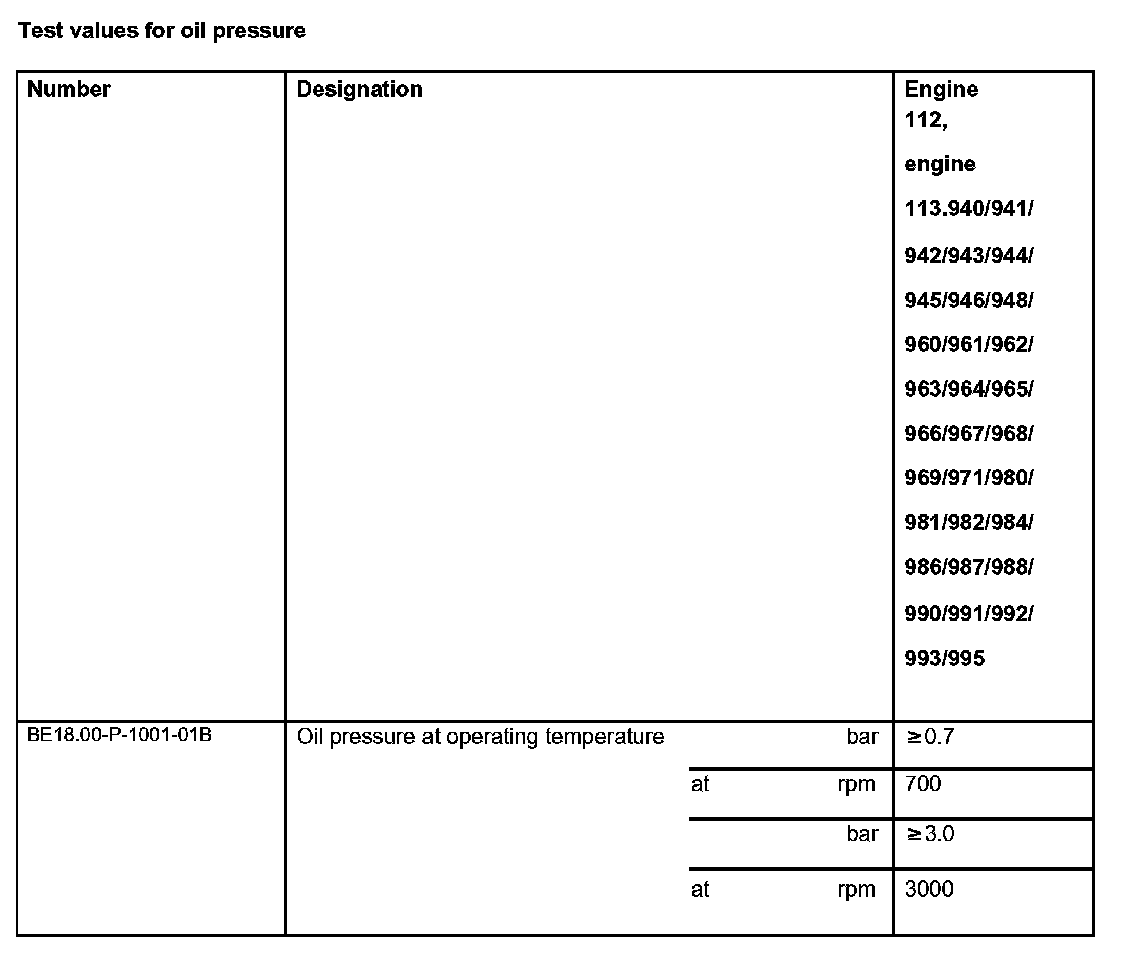

Test values for oil pressure:
Oil level/oil pressure sensor:

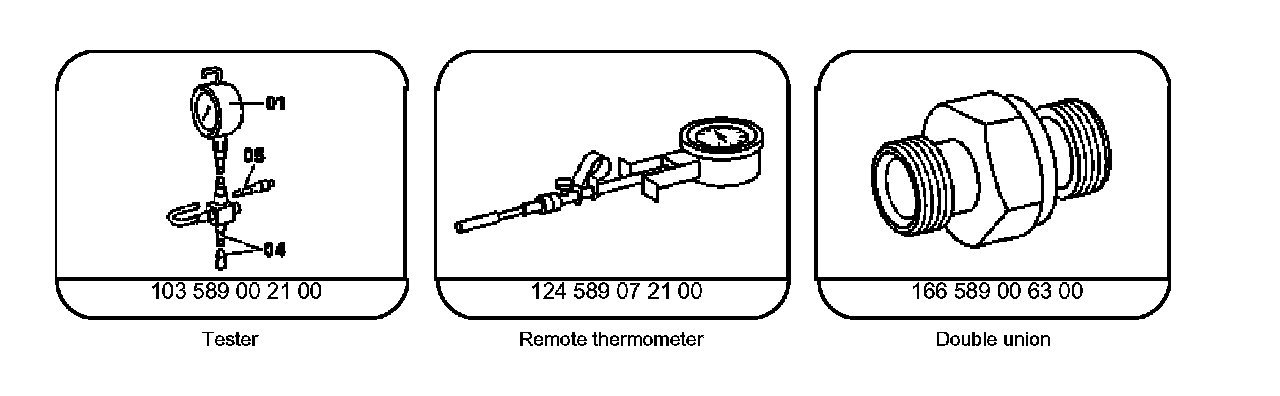

Special Tools:
