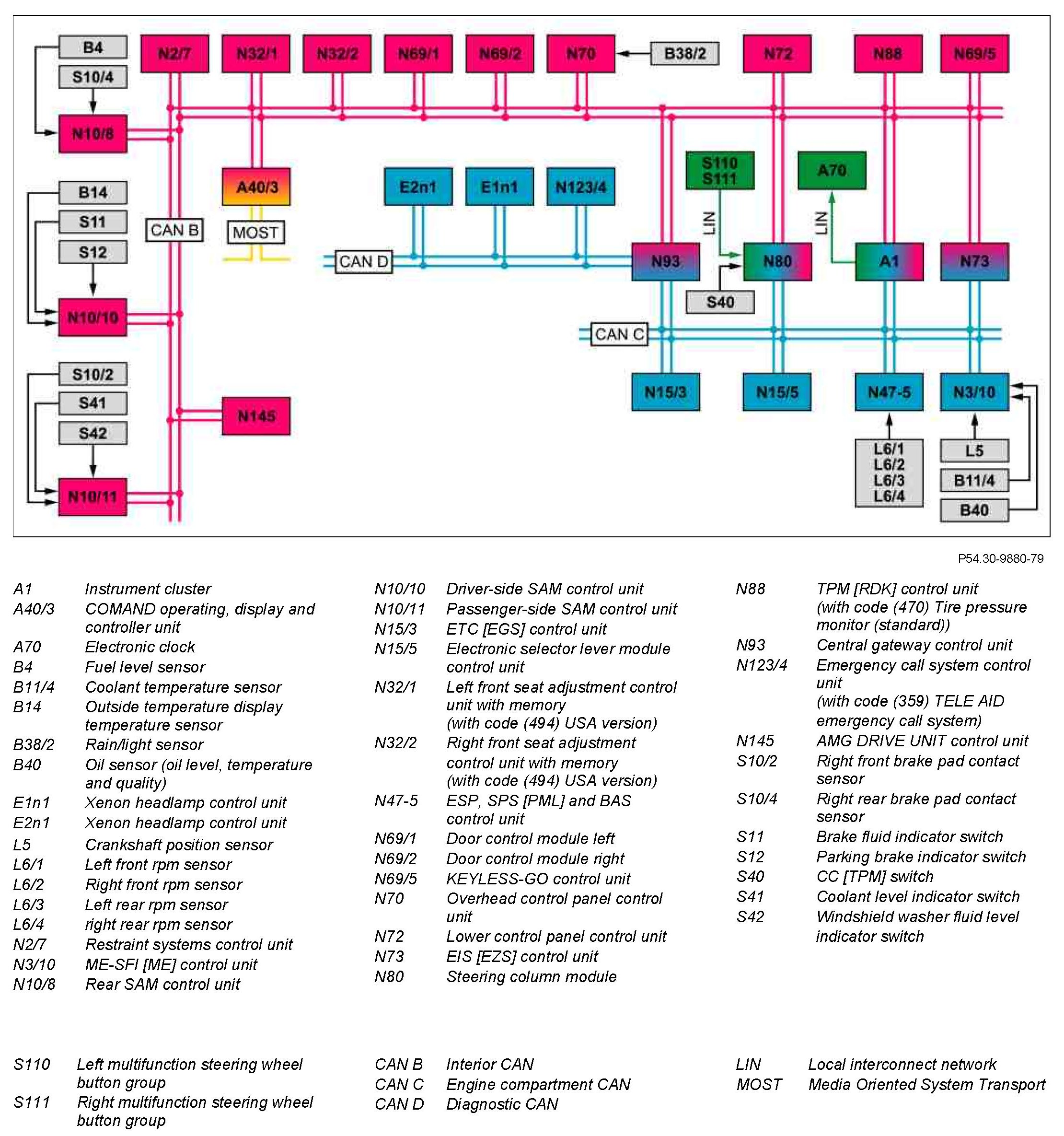

GF54.30-P-0002-01RIT Instrument Cluster (IC), Block Diagram



GF54.30-P-0002-01RIT Instrument Cluster (IC), Block Diagram
- with CODE (P99) Special model "AMG Black Series"


Component Identification:
