GF54.30-P-0002-05R Instrument Cluster (IC), Operating Information

GF54.30-P-0002-05R Instrument Cluster (IC), Operating Information
- up to model year 08

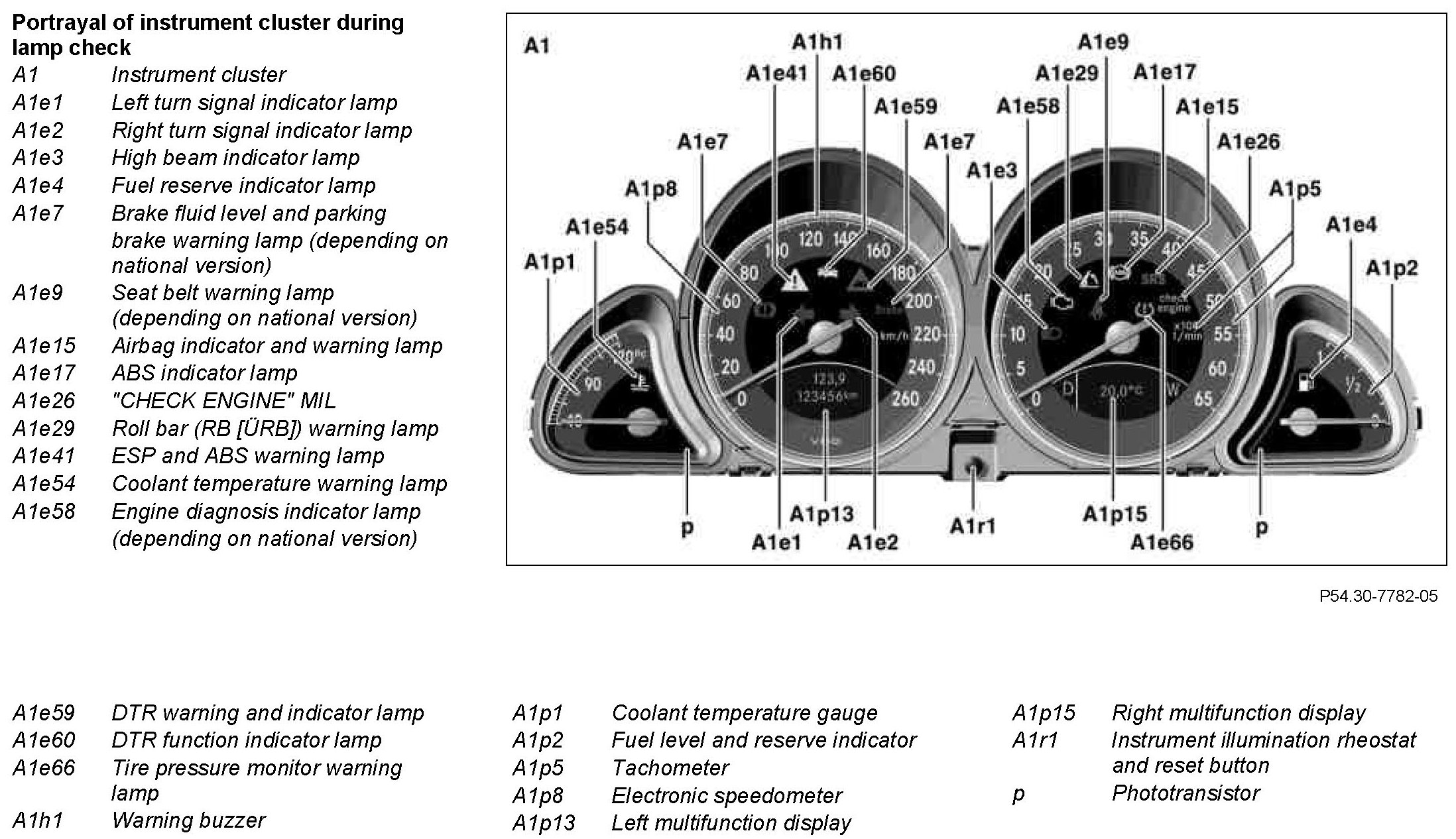

Component Identification:

This document covers the following points:

^ Operating the multifunction display
^ Call display of different systems
^ Scrolling within a system
^ Example: display engine oil level

^ Individual settings
^ Change setting
^ Example: change the temperature display from degrees Celsius to degrees Fahrenheit
^ Resetting the manufacturer default settings
^ Call stored fault and warning messages
^ Acknowledging fault and warning messages on the left multifunction display (A1p13) and right multifunction display (A1p15)
^ Adjust brightness of illumination

Operating the left multifunction display (A1p13) and right multifunction display (A1p15)
If the instrument cluster (A1) is activated by opening the driver's door, for instance, the main screen of the base system (trip and total mileage on left display and outside temperature on right display) always appears on the left multifunction display (A1p13) and right multifunction display (A1p15).

Call display of different systems
Function requirements:
Circuit 15R: ON

By pressing the system selection button (S110s3) on the multifunction steering wheel, the left multifunction display (A1p13 and right multifunction display (A1p15) are switched to the basic screen of the next system. The duration of actuation is of no importance.
The display jumps on one system each time the button is pressed. After running through all the systems, the display returns to the main screen of the base function and then begins running through the systems again from the beginning.

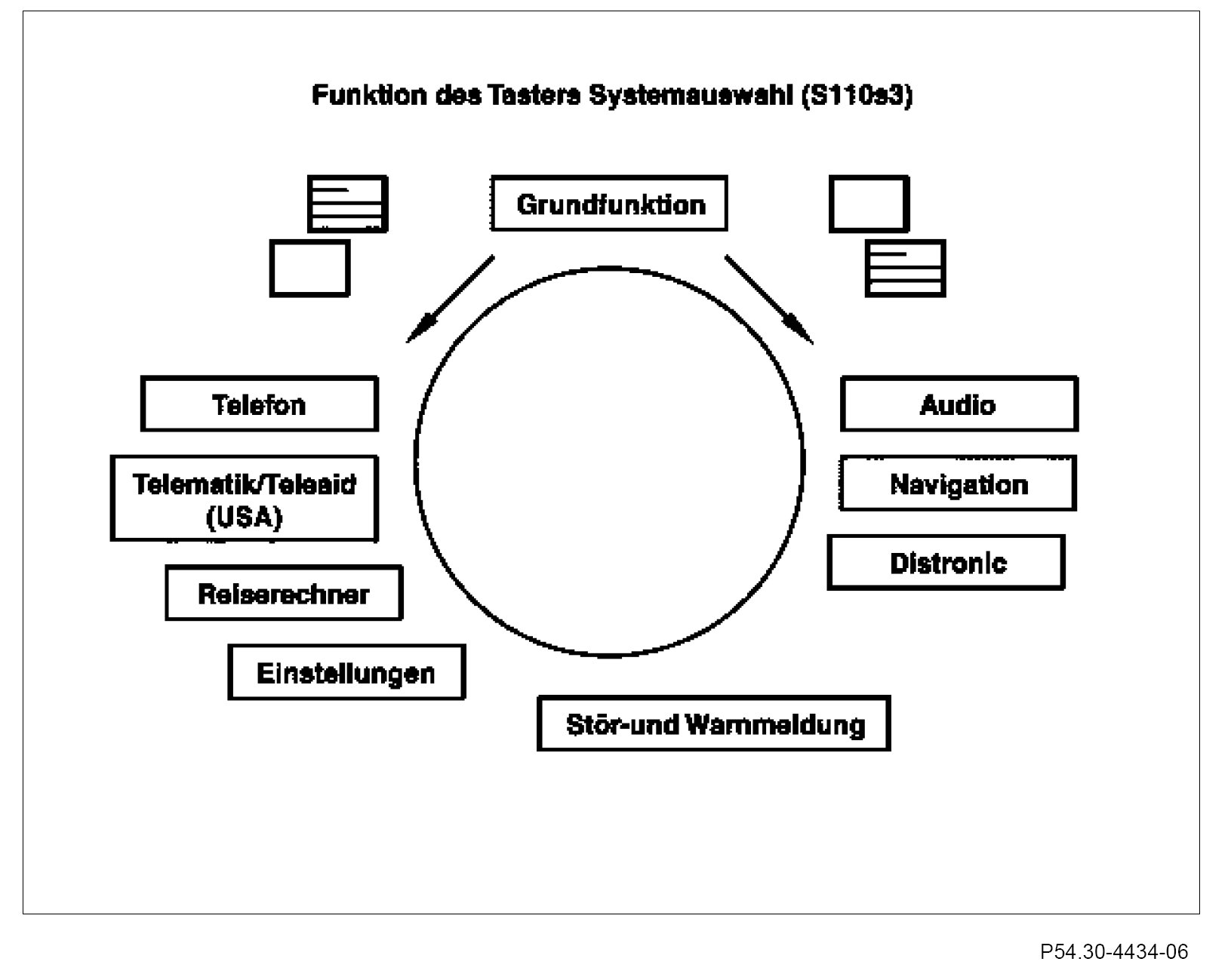

The adjacent figure shows the possible systems arranged in a circle. When the driver presses the system selection button (S110s3), the display jumps forward in the direction of the arrow to the next system.

The display scrolls either forwards or backwards depending on which portion of the button the driver presses.

Only systems and functions with which the vehicle is equipped are displayed. If a system is not available, it is "skipped" when the driver presses the system selection button (S110s3).

Scrolling within a system
Function requirements:
Circuit 15R: ON

In addition to the main screen, most systems also feature other screens.
The driver can use the scroll forward/back button (S110s1) to browse within a system.

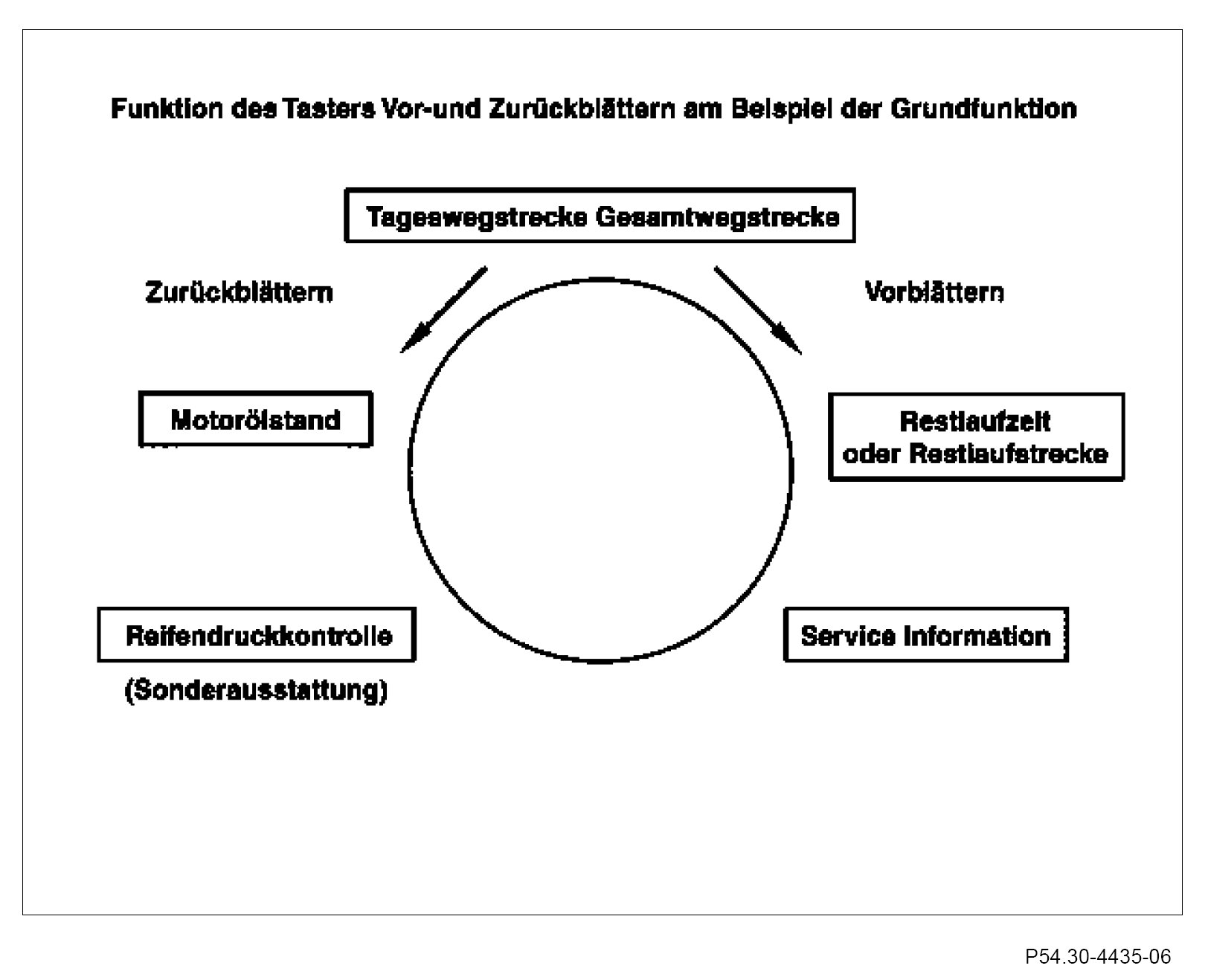

The function of the scroll forward/back button (S110s1) is shown in the illustration below taking the basic system as an example. The display jumps one screen further each time the driver presses the scroll forward/back button (S110s1).

The display scrolls either forwards or backwards depending on which portion of the button the driver presses.

The driver can jump to another system from any screen by pressing the system selection button (S110s3).
With the exception of the trip computer function, the main screen of the system then appears.
If the driver changes to the trip computer system, the last system displayed for the trip computer system appears on the display.

Example: Check engine oil level (the ignition is switched on):
^ Press the system selection button (S110s3) repeatedly until the base function (trip and total mileage) is displayed.
^ either:
^ press the scroll forward button three times, or four times with tire pressure monitor special equipment
^ press the scroll back button once.

Individual settings
Function requirements:
^ Circuit 15R: ON

Using the "Settings... " function the driver can change various
presets.

Procedure:
1. Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
2. Press the scroll forward/back button (S110s1) repeatedly until the setting you wish to change appears on the left multifunction display (A1p13).
3. Press the + and - specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the arrow in the display points to the required value.

Settings:

Instrument cluster (A1)
^ Set minutes for time (only on vehicles without COMAND code 352a)
^ Set hours for time (only on vehicles without COMAND code 352a)
^ Temperature display :
The driver can switch the outside temperature display between degrees Celsius and degrees Fahrenheit. The instrument cluster (A1) also sends a message for the air conditioning on the interior CAN.
^ Speedometer
This can be switched between miles and kilometers. This changeover also affects the display of the trip computer integrated into the instrument cluster (A1). The instrument cluster (A1) also sends an appropriate message on the engine compartment CAN.
^ Language selection
Here the driver can select the language for the text which appears in the instrument cluster (A1). The instrument cluster (A1) also sends a message on the interior CAN.
(The language set for the COMAND system has no effect on the language setting in the instrument cluster (A1)).
^ Speed display instead of outside temperature

Illumination
^ Driving light switching (manual/steady light)
^ Locator lighting (ON/OFF)
^ Headlamp switch-off delay (t in s)
^ Interior light courtesy delay (t in s)

Vehicle
^ Speed limit (winter tires):
The winter tire speed limit can be set using the 2nd control level: 160 to 240 km/h (100 to 150 mph) in 10 km/h or 10 mph increments, at speeds over 240 km/h (150 mph) the speed limit can be switched off by pressing the "+" button.
^ Station search (frequency/memory)
^ Automatic door locking (ON/OFF)
^ Interior motion sensor when soft top is open (ON/OFF)
^ Tire pressure display (bar, psi)

Heater, stationary heater
^ Stationary heater activation time
^ Set hours for switching time
^ Set minutes for switching time
^ Stationary heater (always-on)

Convenience
^ Set easy entry/exit
- OFF
- Steering column
- Steering column and seat

^ Set key dependency
^ Set mirror adjustment for parking

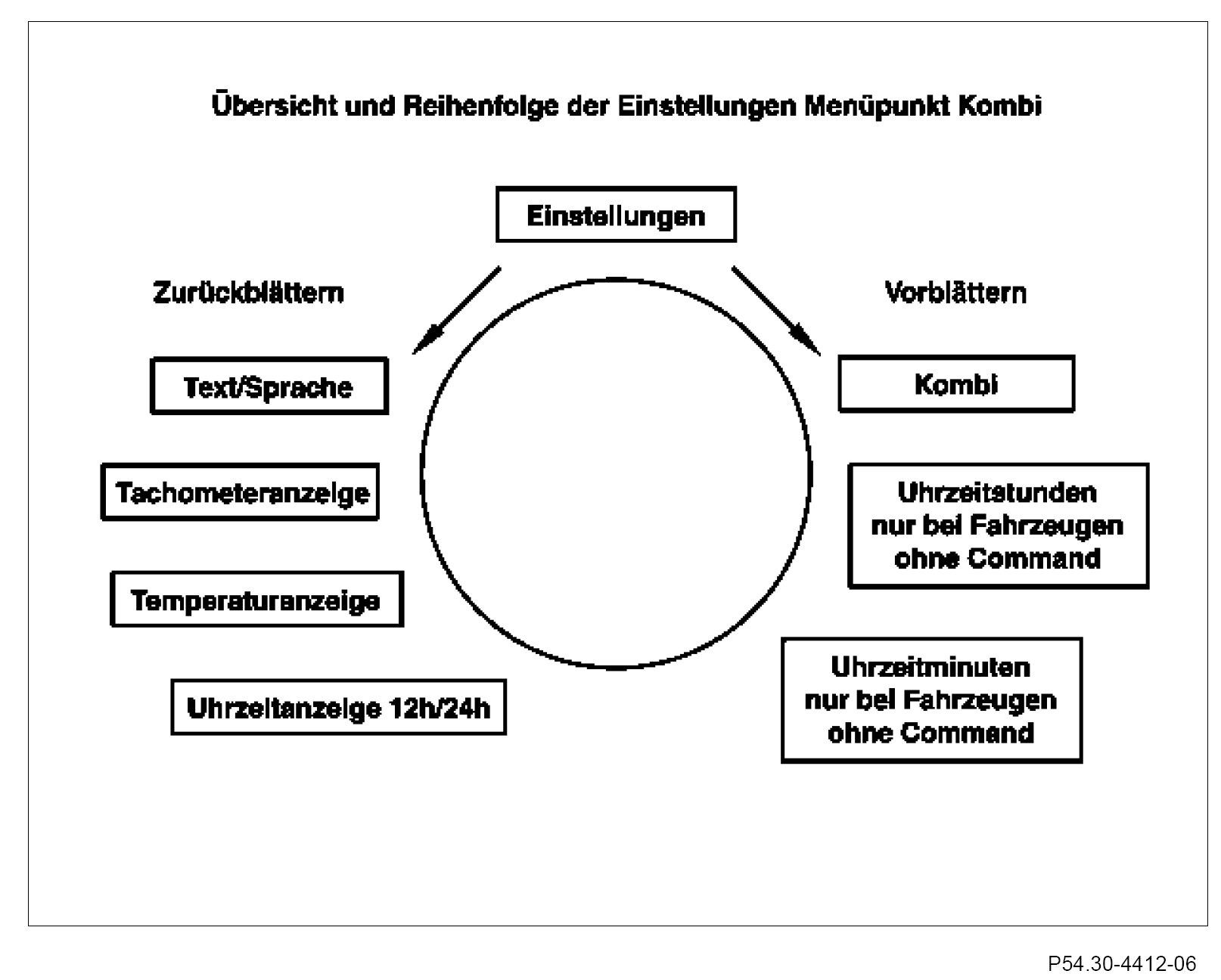

Change setting in "Instrument Cluster" menu item
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the "Instrument Cluster" menu item is displayed on the right multifunction display (A1p15).
^ Press the scroll forward or scroll back button until the setting you wish to change appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the required value is displayed on the right multifunction display (A1p15).
^ The activated value becomes effective immediately.

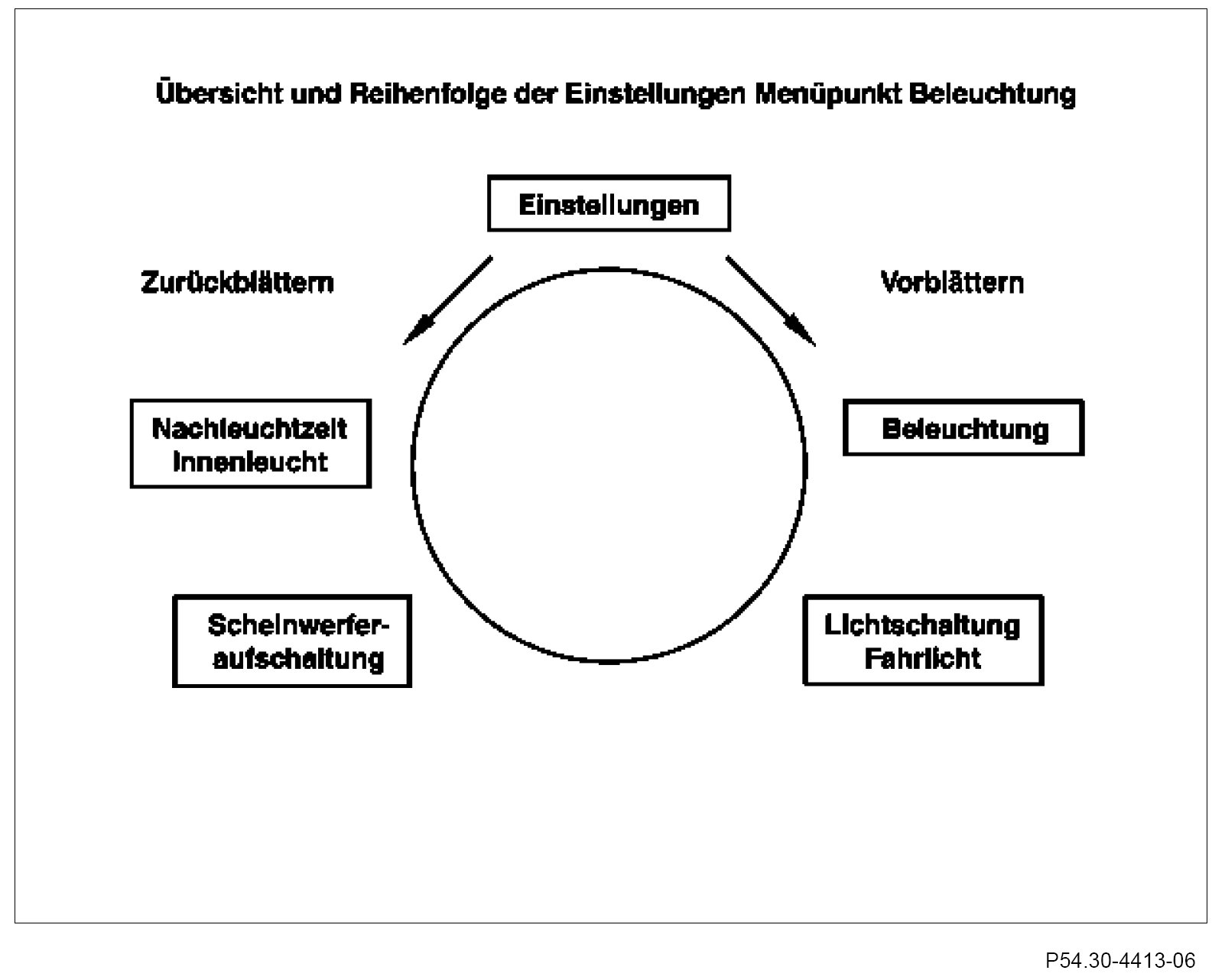

Change setting in "Illumination" menu item
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the "Illumination" menu item is displayed on the right multifunction display (A1p15).
^ Press the scroll forward or scroll back button until the setting you wish to change appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the required value is displayed on the right multifunction display (A1p15).
^ The activated value becomes effective immediately.

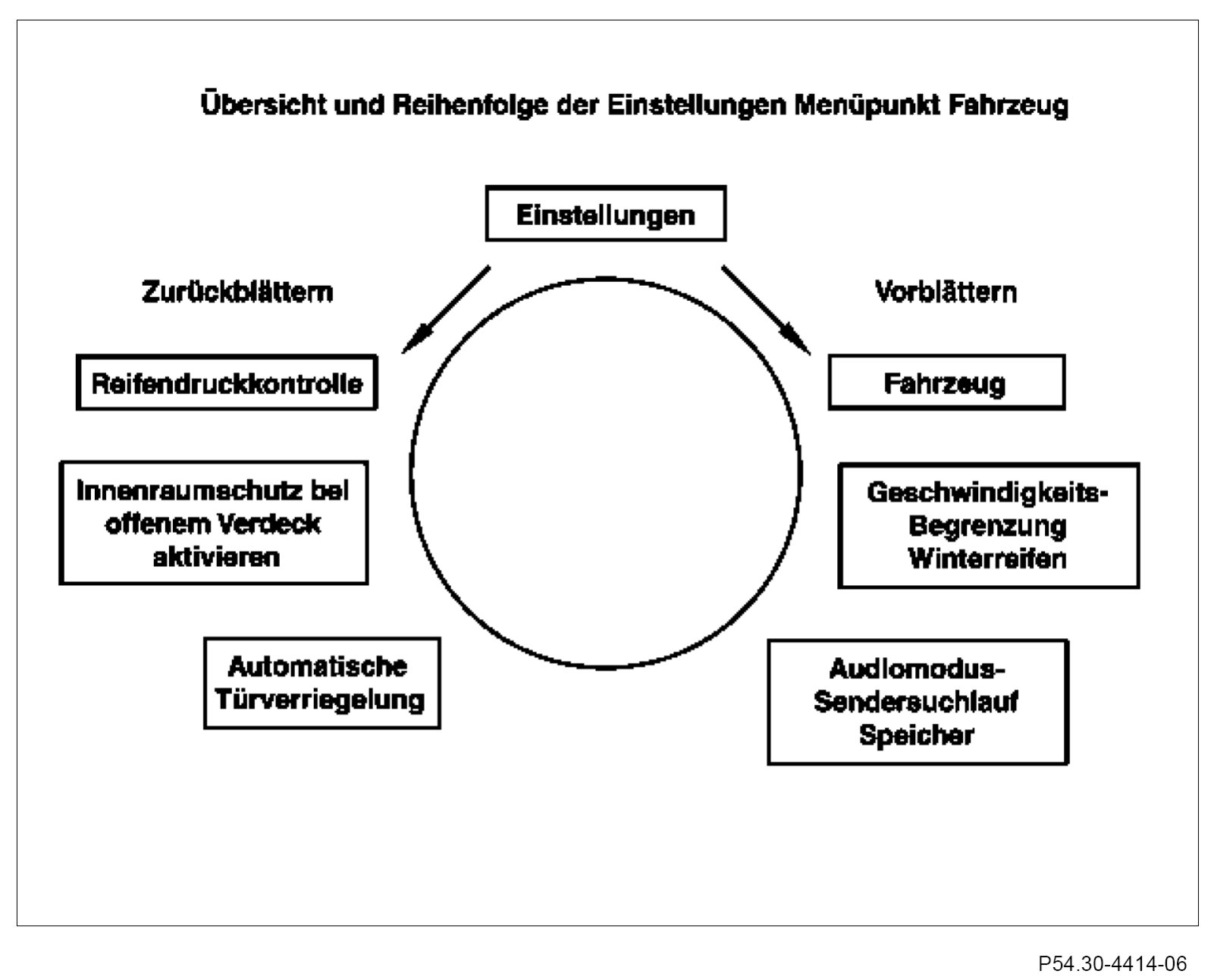

Change setting in "Vehicle" menu item
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the "Vehicle" menu item is displayed on the right multifunction display (A1p15).
^ Press the scroll forward (Up-arrow) or scroll back button (Down-arrow) until the setting you wish to change appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the required value is displayed on the right multifunction display (A1p15).
^ The activated value becomes effective immediately.

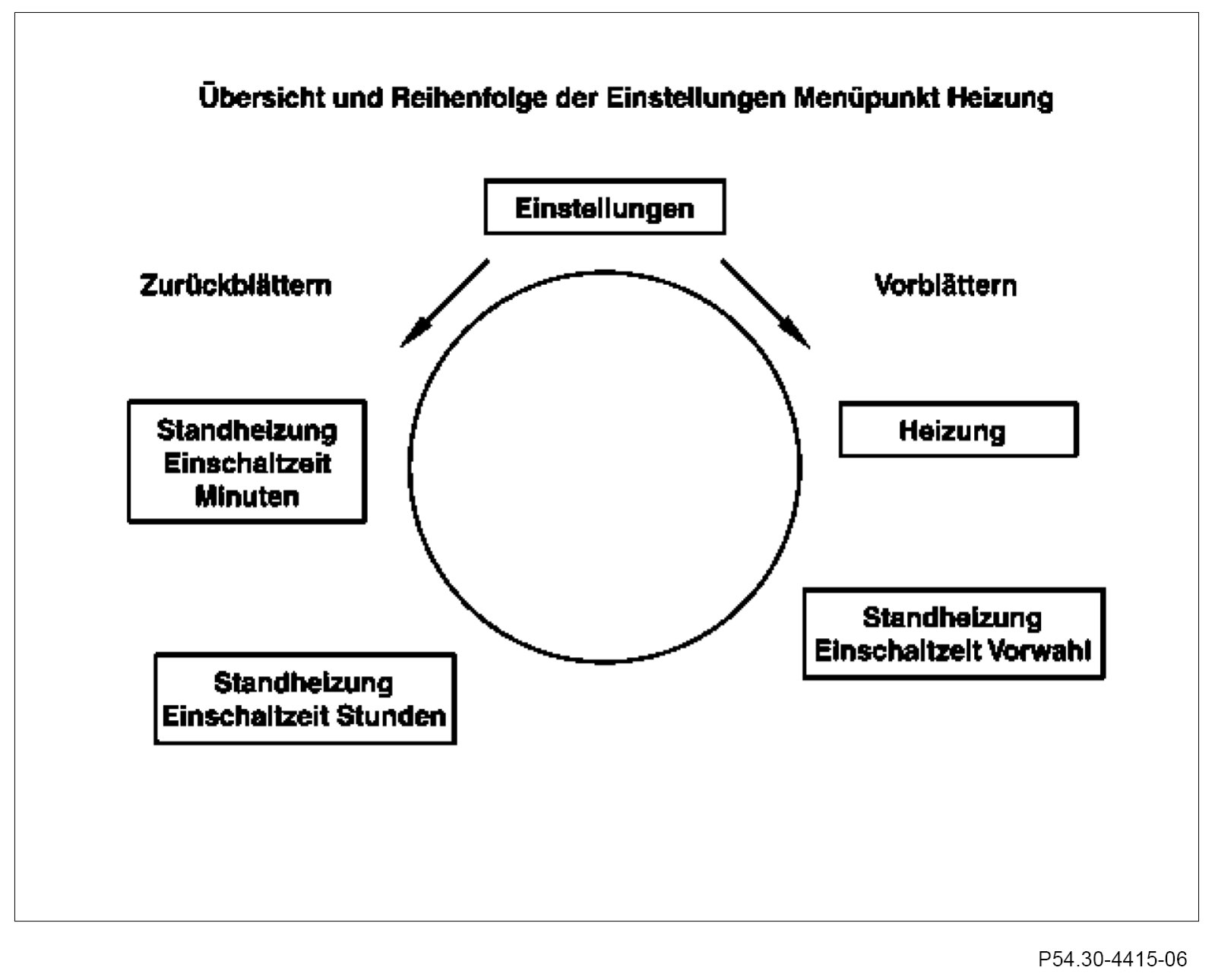

Change setting in "Heater" menu item
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the "Heater" menu item is displayed on the right multifunction display (A1p15).
^ Press the scroll forward or scroll back button until the setting you wish to change appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the required value is displayed on the right multifunction display (A1p15).
^ The activated value becomes effective immediately.

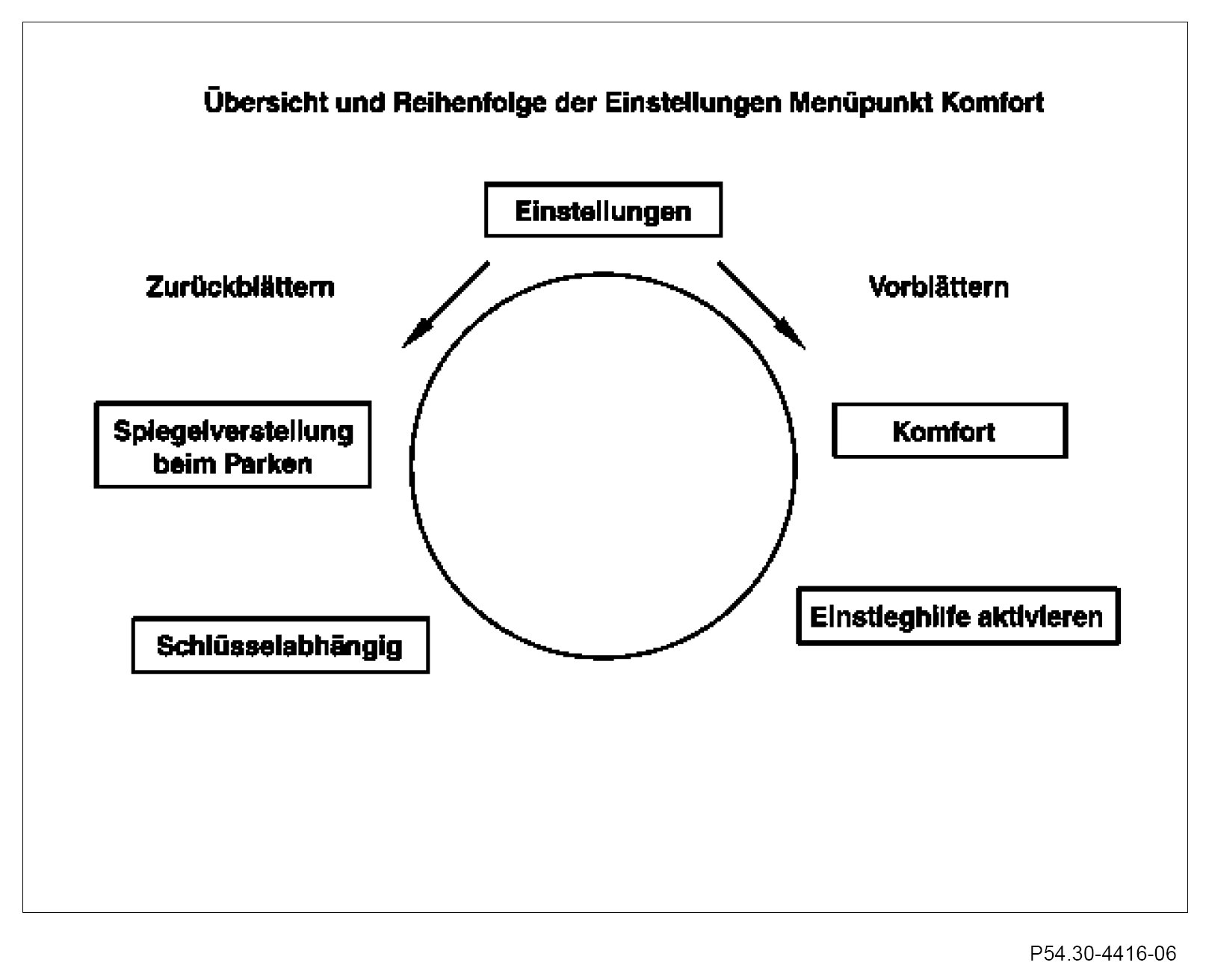

Change setting in "Convenience" menu item
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the "Convenience" menu item is displayed on the right multifunction display (A1p15).
^ Press the scroll forward or scroll back button until the setting you wish to change appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the required value is displayed on the right multifunction display (A1p15).
^ The activated value becomes effective immediately.

Settings are selectable regardless of the vehicle speed.

Example:
Change the temperature display from degrees Celsius to degrees Fahrenheit.
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the + and -, specific function setting and volume control button (S111s1) in either the (+) or (-) direction until the "Instrument Cluster" menu item is displayed on the right multifunction display (A1p15).
^ Press the scroll forward/back button (S110s1) repeatedly until the "TEMPERATURE" display appears on the left multifunction display (A1p13).
^ Press the (-) button on the right-hand side of the steering wheel so that °F is displayed on the right multifunction display (A1p15).
^ The setting becomes effective immediately.

Resetting the manufacturer default settings
This function allows the driver to reset all settings to the manufacturer default settings.

Carry out reset:
^ Press the system selection button (S110s3) repeatedly until the "Settings..." function appears on the left multifunction display (A1p13).
^ Press the instrument illumination rheostat and reset button (A1r1) and hold down for at least 3 seconds.
The message "RESET SETTINGS, PRESS RESET BUTTON TO CONFIRM" appears on the right multifunction display (A1p15).
^ Press the instrument illumination rheostat and reset button (A1r1) again within 10 seconds. All settings are now reset to the manufacturer default settings.
The message "RESET TO MANUFACTURER DEFAULT SETTINGS" appears on the right multifunction display (A1p15).
^ If the driver does not press the instrument illumination rheostat and reset button (A1r1) within 10 seconds, the display returns to the main screen. The settings are then not reset.

For safety reasons when resetting the settings when driving the "driving light switching" in the "Illumination" menu and the "speed limit (winter tires) in the "Vehicle" menu are not reset.
The following message appears:
"NOT ALL SETTINGS RESET TO DEFAULTS WHILE DRIVING". Calling stored fault and warning messages
The driver can scroll through the stored messages when the instrument cluster (A1) is activated:
^ Press the system selection key (S110s3) continuing until the "--FAULTS" display appears on the left multifunction display (A1p13).
^ Scroll through the fault messages using the + and -, specific function setting and volume control button (S111s1). The messages are displayed in the order in which they were acknowledged.

Acknowledging fault and warning messages on the left multifunction display (A1p13) and right multifunction display (A1p15)
The messages are divided into three categories according to their priority:

Messages of categories 2 and 3 on the left multifunction display (A1p13) can be acknowledged by pressing the instrument illumination rheostat and reset button (A1r1) and the system selection button (S110s3) of the multifunction steering wheel and are then stored in the fault memory. Messages belonging to category 1 (highest priority) cannot be acknowledged. Fault or warning lamps that light up in parallel cannot be acknowledged.

Certain fault and warning messages are also accompanied by a chime.
A chime always sounds with red fault and warning messages. Fault and warning messages such as "CLOSE TRUNK LID", for example, are not stored in the fault memory.

Set the illumination brightness
The brightness of illumination of the instrument cluster (A1) and the switch and controls illumination can be adapted to individual requirements with the Instrument illumination rheostat and reset button (A1r1):
^ Turn the regulator clockwise to increase the brightness, or counterclockwise to decrease the brightness.
