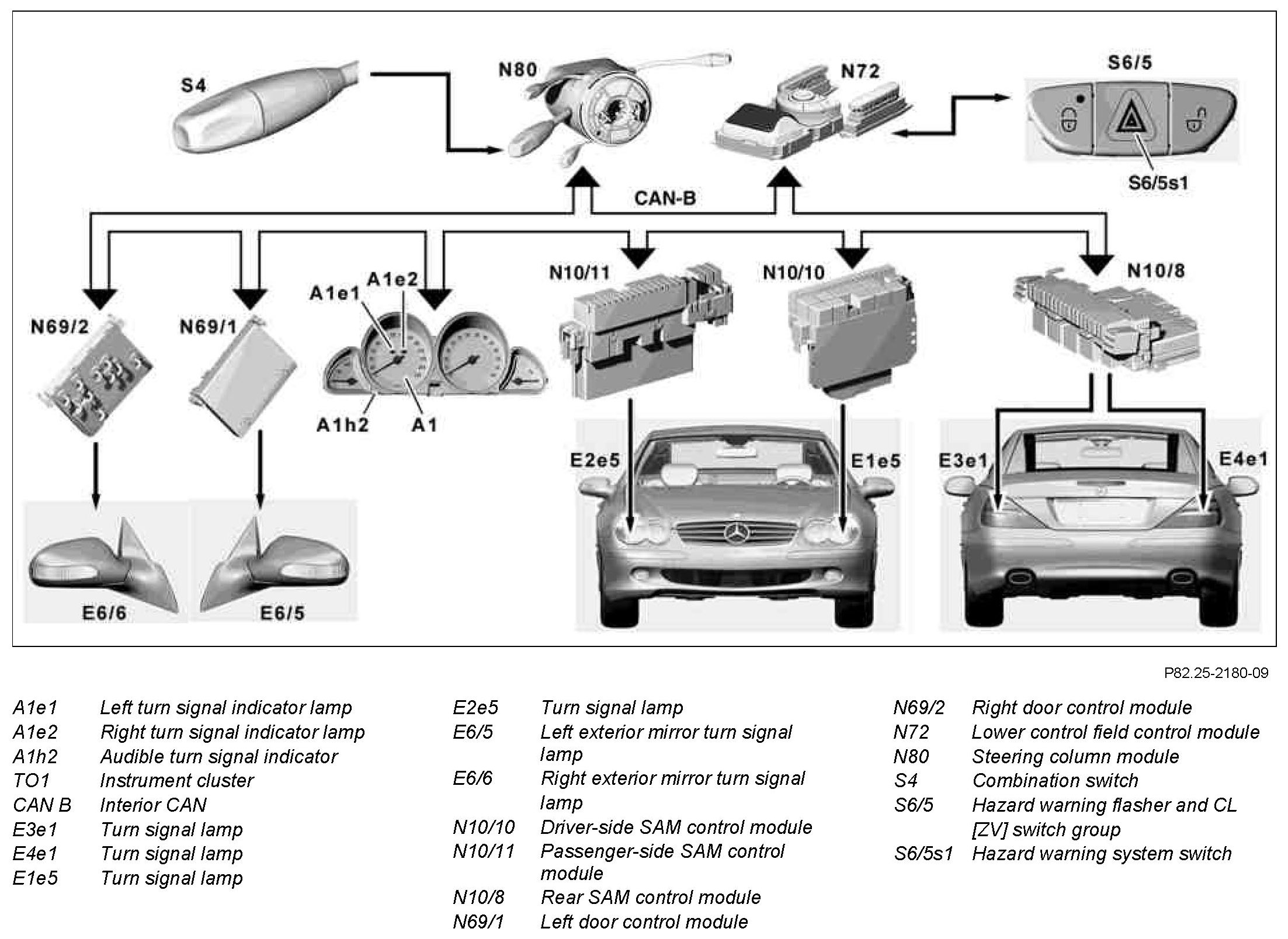

GF82.25-P-0002-02R Interlinkage of Turn Signal / Hazard Warning Flasher Components



GF82.25-P-0002-02R Interlinkage Of Turn Signal / Hazard Warning Flasher Components


Component Identification:
