GF07.61-P-3010AM ME-SFI Start Quantity Control Function

GF07.61-P-3010AM ME-SFI Start Quantity Control Function
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008

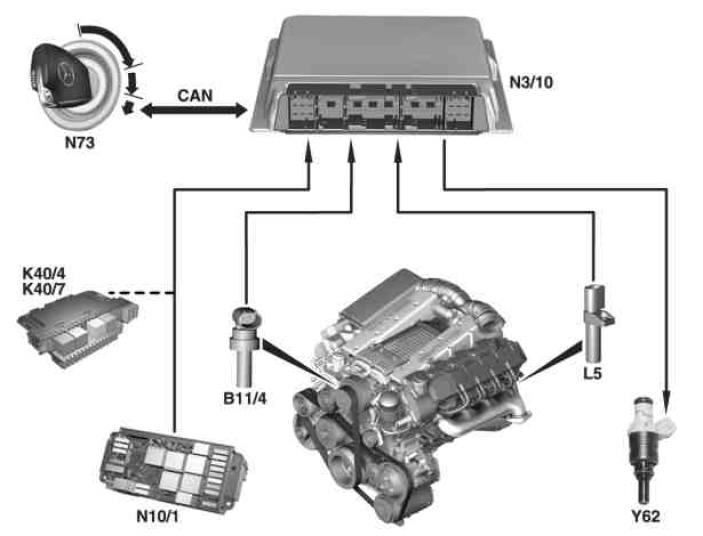

B11/4 Coolant temperature sensor
K40/4 Passenger-side fuse and relay module, (model 230)
K40/7 Right front fuse and relay module (model 215, 220)
L5 Crankshaft position sensor
N3/10 ME control unit
N10/1 Driver-side SAM control unit with fuse and relay module (model 211, 219)
N10/1 Front signal acquisition and actuation module (SAM) (model 463)
N73 EIS [EZS] control unit
Y62 Fuel injection valves

CAN CAN databus (Controller Area Network)

To facilitate starting a cold engine, additional fuel must be injected during the starting procedure (depending on the coolant temperature). The increased quantity of fuel injected is achieved by extending the injection time.

The start quantity control is dependent on:
^ Start recognition
^ Coolant temperature
^ Engine speed
^ Engine off time
^ Altitude (atmospheric pressure)

The start quantity control is enabled after start recognition. It remains activated until a temperature-related engine speed is exceeded.
The higher the coolant temperature, the lower is the start quantity enable by the ME-SFI control unit.
