GF07.61-P-3012AM ME-SFI Fuel Pump Actuation, Function

GF07.61-P-3012AM ME-SFI Fuel Pump Actuation, Function
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008
Model 211, 219





75 Fuel tank

K27/1 Fuel pump relay
L5 Crankshaft position sensor
M3 Fuel pump (fuel double pump)
N3/10 ME control unit
N73 EIS [EZS] control unit
Y62 Fuel injection valves

CAN CAN databus (Controller Area Network)

The fuel pump(s) is (are) actuated:
^ During ignition ON: The fuel pump is actuated for about 2 seconds (can be heard partially) as a full running protection.
^ During start operation by means of the first signals supplied by the crankshaft position sensor.
^ When engine running by means of "TNA" engine speed signal.

Fuel pump actuation (model 211, 219)
Both fuel pumps are actuated simultaneously via the fuel pump relay.
The fuel pump relay is actuated through a ground signal from the ME control unit. When the relay contact is closed, the fuel pumps with fuel level sensor are connected to circuit 30 (B)+ via circuit 87.





Model 215, 220, 230, 463

B4/7 Fuel pressure sensor
K27/5 Intank fuel pump relay (model 230, 463)
K40/5kT Fuel pump relay (model 215, 220, 230)
K40/8kX Intank fuel pump relay (model 215, 220)
L5 Crankshaft position sensor
M3 Fuel pump
M3/1 Intank fuel pump
N3/10 ME control unit
N10/2kA Fuel pump relay (model 463)
N73 EIS [EZS] control unit
N118 Fuel pump control unit
Y62 Fuel injection valves

CAN CAN databus (Controller Area Network)

Fuel pump actuation (model 215, 220, 230, 463)
The fuel pump is actuated by the fuel pump control unit via the fuel pump relay.
The fuel pump relay is actuated through a ground signal from the ME control unit. If the power contact of the relay is closed, the fuel pump control unit is connected via terminal 87 with terminal 30 (B)+ and undertakes control of the fuel pump.

Intank fuel pump actuation (model 215, 220, 230, 463)
The intank fuel pump is actuated via the intank fuel pump relay
The intank fuel pump relay is actuated by the ME-SFI [ME] control unit through a ground signal depending on the engine speed and load (high engine speed, full load). If the power contact of the relay is closed, the intank fuel pump control unit is connected via terminal 87 with terminal 30 (B)+.

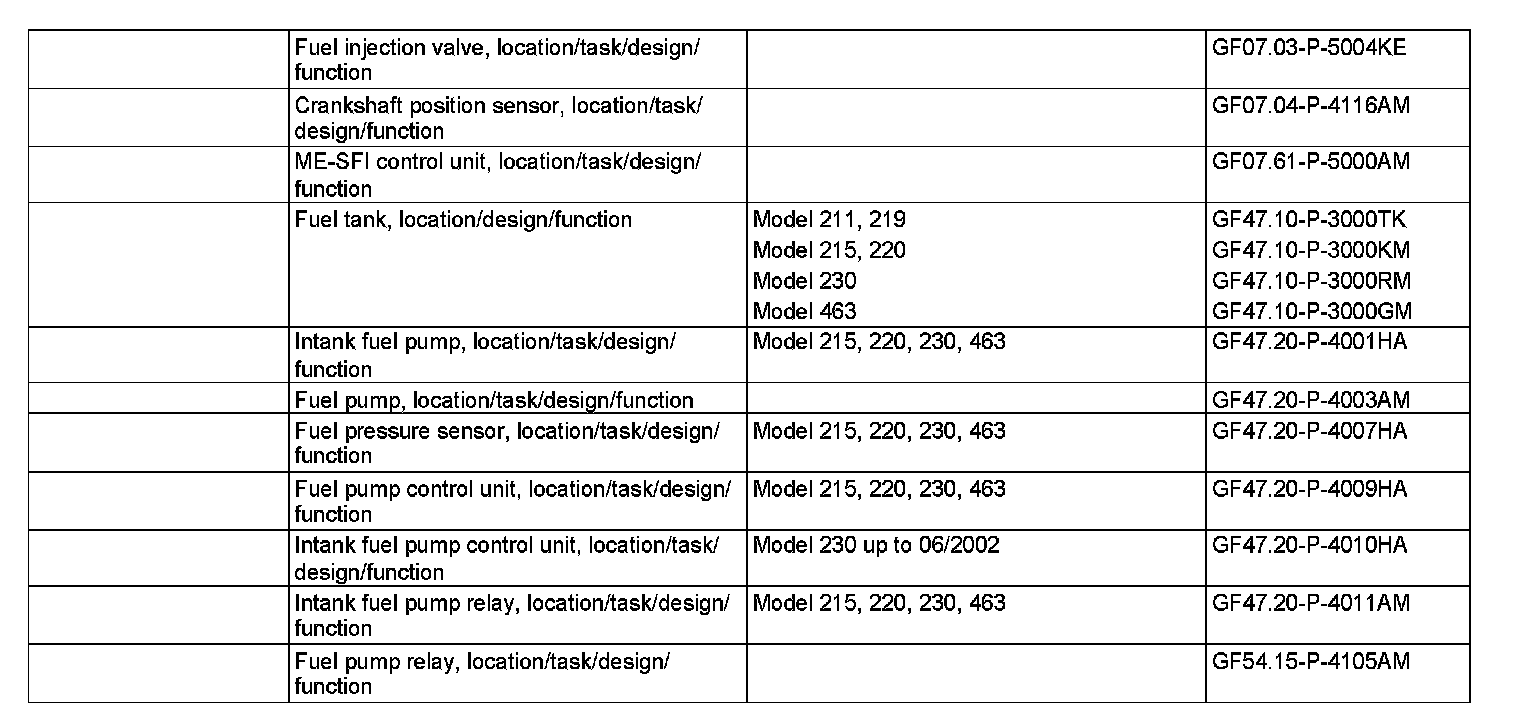

In case of model 230 to 06/2002, the intank fuel pump is not actuated by the ME-SFI [ME] control unit directly, but via the intank fuel pump control unit (N118/1) depending on the engine speed.
