GF07.61-P-3015AM ME-SFI Acceleration Enrichment Function

GF07.61-P-3015AM ME-SFI Acceleration Enrichment Function
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008

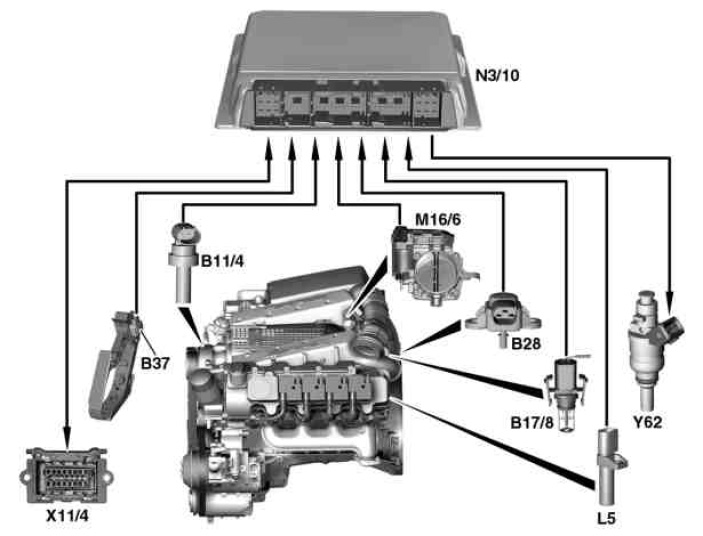

B11/4 Coolant temperature sensor
B17/8 Charge air temperature sensor
B28 Pressure sensor (charge air)
B37 Accelerator pedal sensor
L5 Crankshaft position sensor
M16/6 Throttle valve actuator
N3/10 ME-SFI [ME] control unit
X11/4 Data link connector
Y62 Fuel injection valves

Dynamic enrichment prevents jerking when accelerating.

During fast opening of the throttle valve the mixture leans out briefly and is enriched briefly during fast closing of the throttle valve. This results in brief mixture adaptation in which an additional or a reduced quantity of fuel is allocated to the engine by the ME- SFI [ME] control unit depending on the performance map.

Acceleration enrichment is dependent on:
^ Coolant temperature
^ Engine load
^ Rate of load change (rate of depressing or releasing accelerator)
^ Engine speed
^ Correction programming with STAR DIAGNOSIS
