GF07.61-P-3018AM ME-SFI Safety Fuel Shutoff, Function

GF07.61-P-3018AM ME-SFI Safety Fuel Shutoff, Function
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008





K27/1 Fuel pump relay (models 211, 219)
K27/5 Intank fuel pump relay (models 230, 463)
K40/5kT Fuel pump relay (models 215, 220, 230)
K40/8kX Intank fuel pump relay (models 215, 220)
L5 Crankshaft position sensor
M3 Fuel pump
M3/1 Intank fuel pump control unit (models 215, 220, 230, 463)
M16/6 Throttle valve actuator
N2/7 Restraint systems control unit (except model 463)
N2/7* Restraint systems control unit (model 463)
N3/10 ME control unit
N10/2kA Fuel pump relay (model 463)

N118 Fuel pump control unit (models 215, 220, 230, 463)
Y62 Fuel injection valves

CAN Data bus (Controller Area Network)

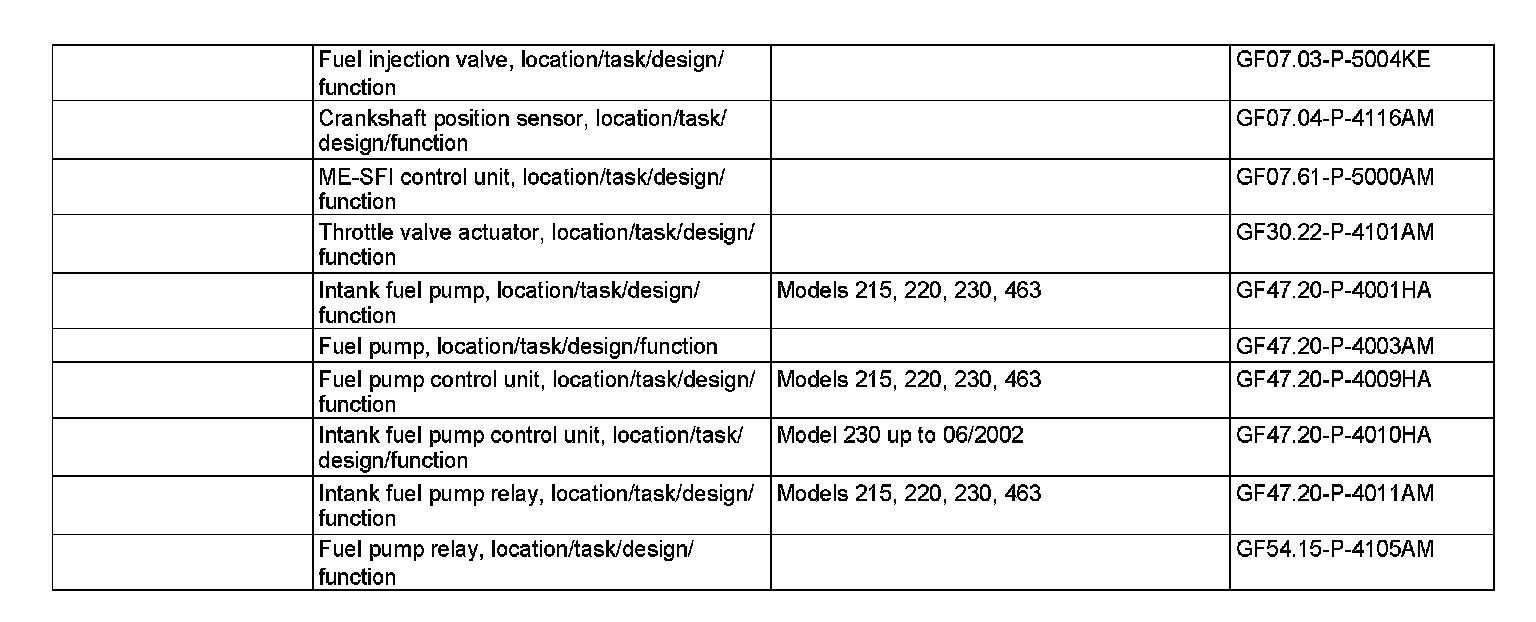

The safety fuel shutoff is activated:
^ In the event of mechanical faults in the throttle valve actuator ->the engine speed is limited to approx. 1400 rpm by cutting out the fuel injection valves
^ In case of errors of the engine speed signal "TNA" ->the fuel pump actuation is interrupted.
^ When receiving a crash signal (from the restraint systems control unit) accompanied by triggering of airbags ->The ME control unit switches off the fuel pump and actuates the fuel injection valves shortly in order to depressurize the fuel system.

On model 230 up to 06/2002 the intank fuel pump (N118/1) was not directly actuated by the ME control unit but via the intank fuel pump control unit.
