GF91.60-P-0002-02RA Supplemental Restraint System (SRS), Component Networking



GF91.60-P-0002-02RA Supplemental Restraint System (SRS), Component Networking
- with CODE (494) USA version

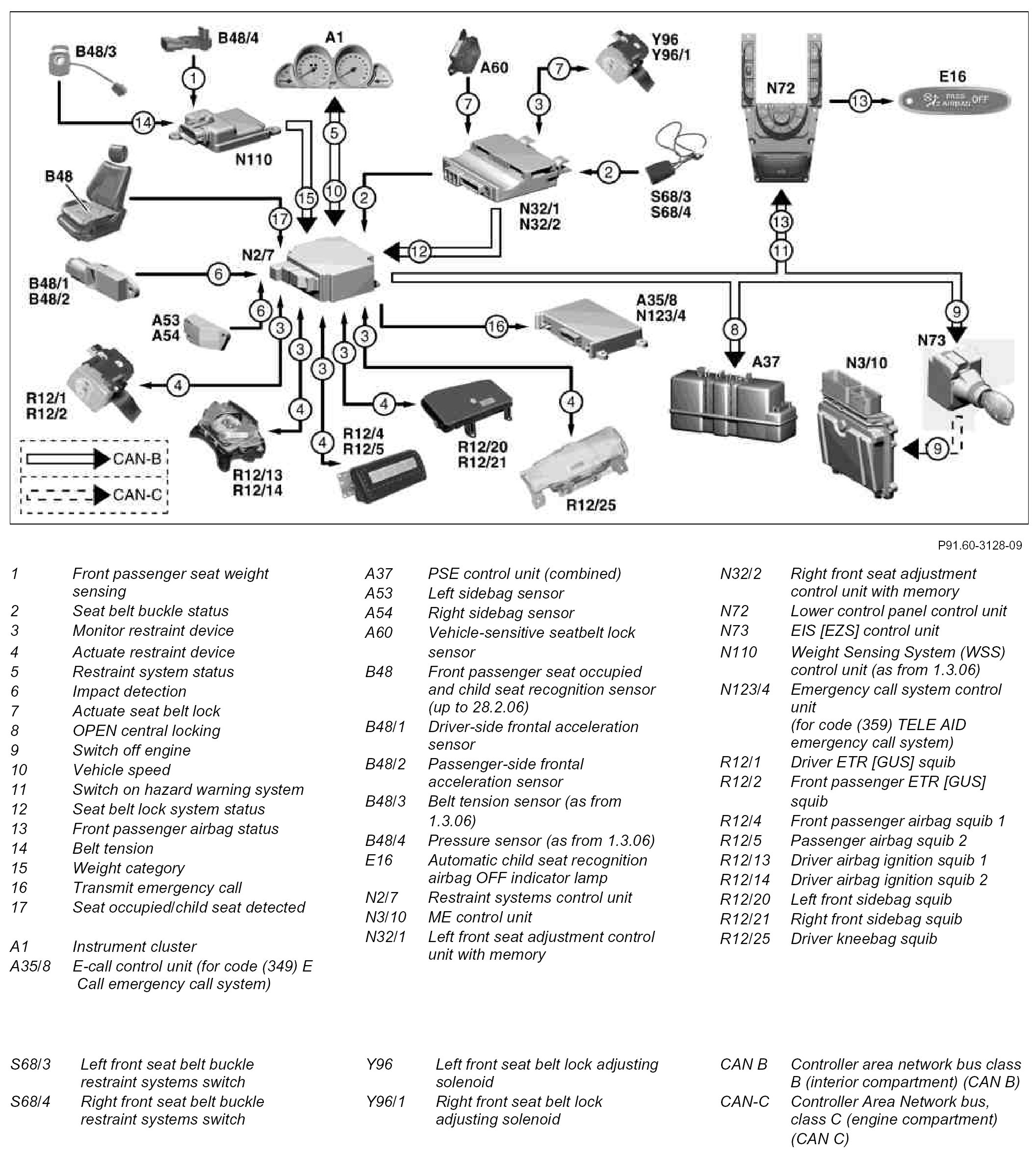

Component Identification:
