GF32.50-P-4625R ABC Oil Reservoir, Component Description

GF32.50-P-4625R ABC oil reservoir, component description
- with CODE (487) Active body control (ABC)
- as of 1.3.06 up to model 08

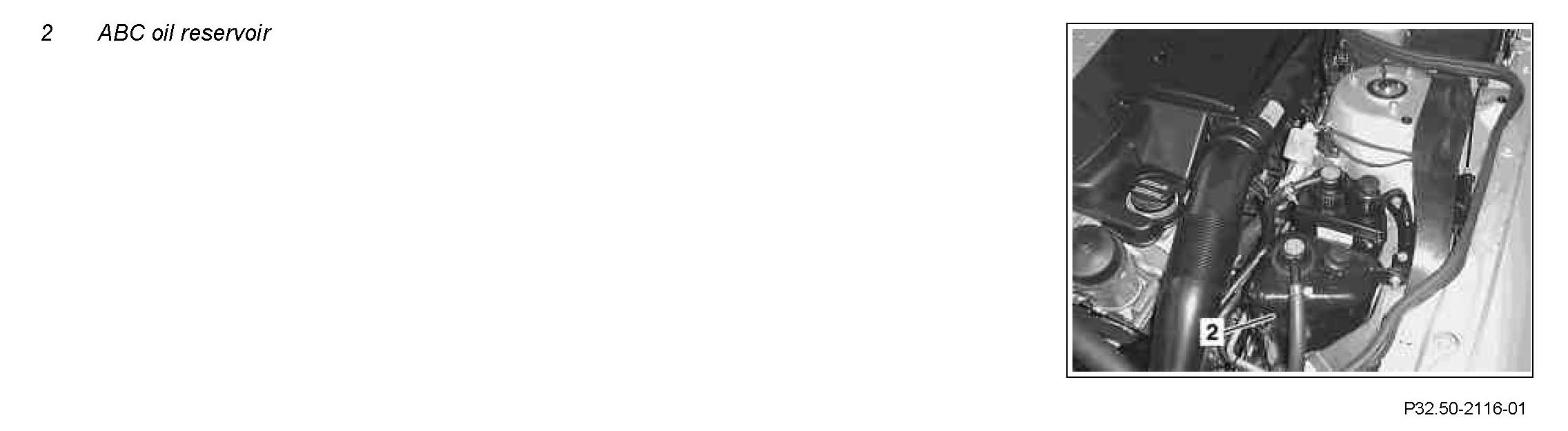

Component Identification:

Location
The ABC oil reservoir is located in the engine compartment on the left wheelhouse.

Design
The ABC oil reservoir is made of plastic and is equipped with an oil dipstick and return filter with overpressure bypass.

Task
The ABC oil reservoir balances out the difference in oil volume between the highest and lowest level. It is also used to store the oil from the pressure reservoirs when the engine is switched off.
