AR32.25-P-1017RBS Remove/Install the Suspension Strut

AR32.25-P-1017RBS Remove/install the suspension strut
- with CODE (P99) Special model "AMG Black Series"

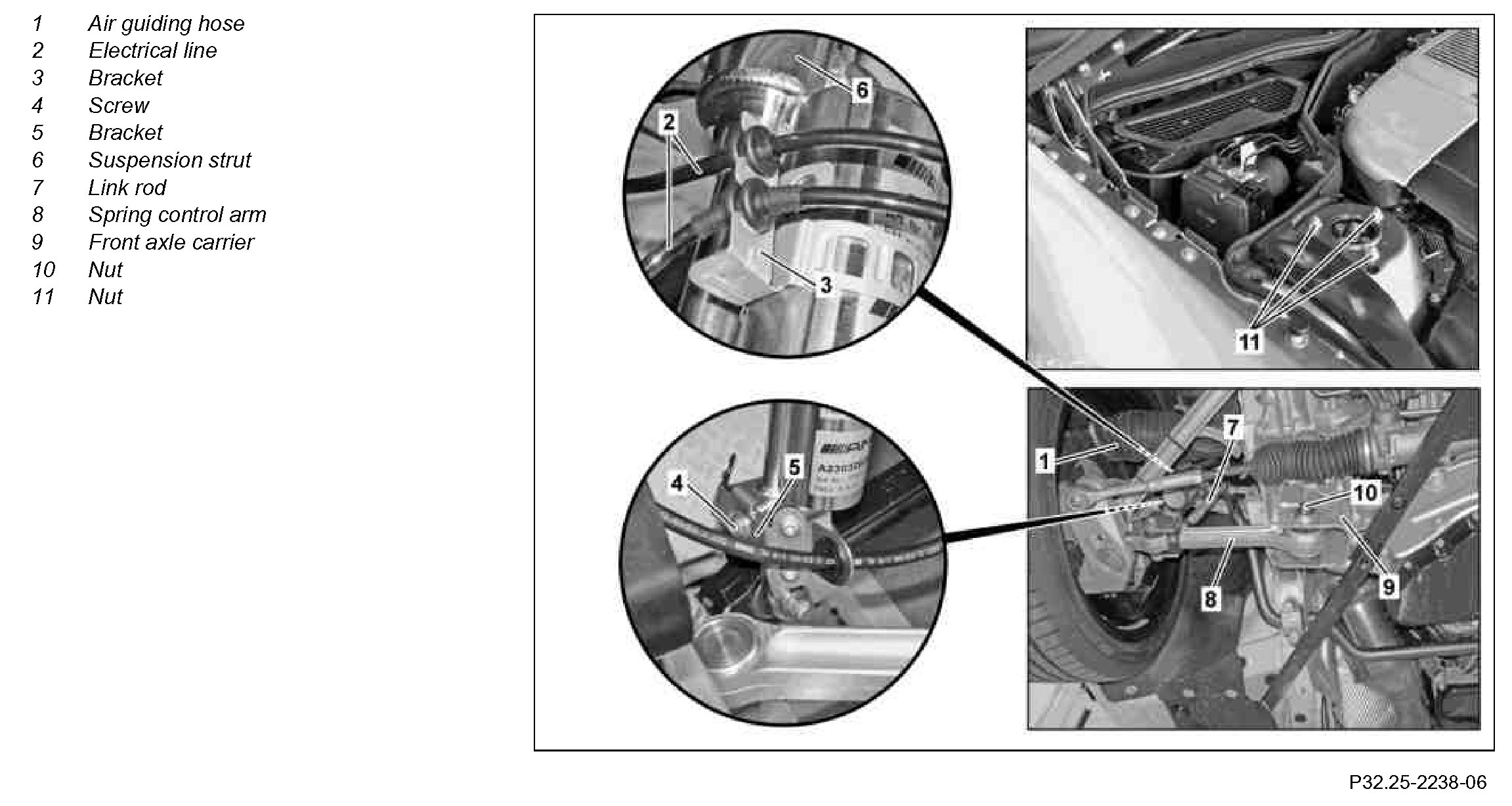

Component Identification:

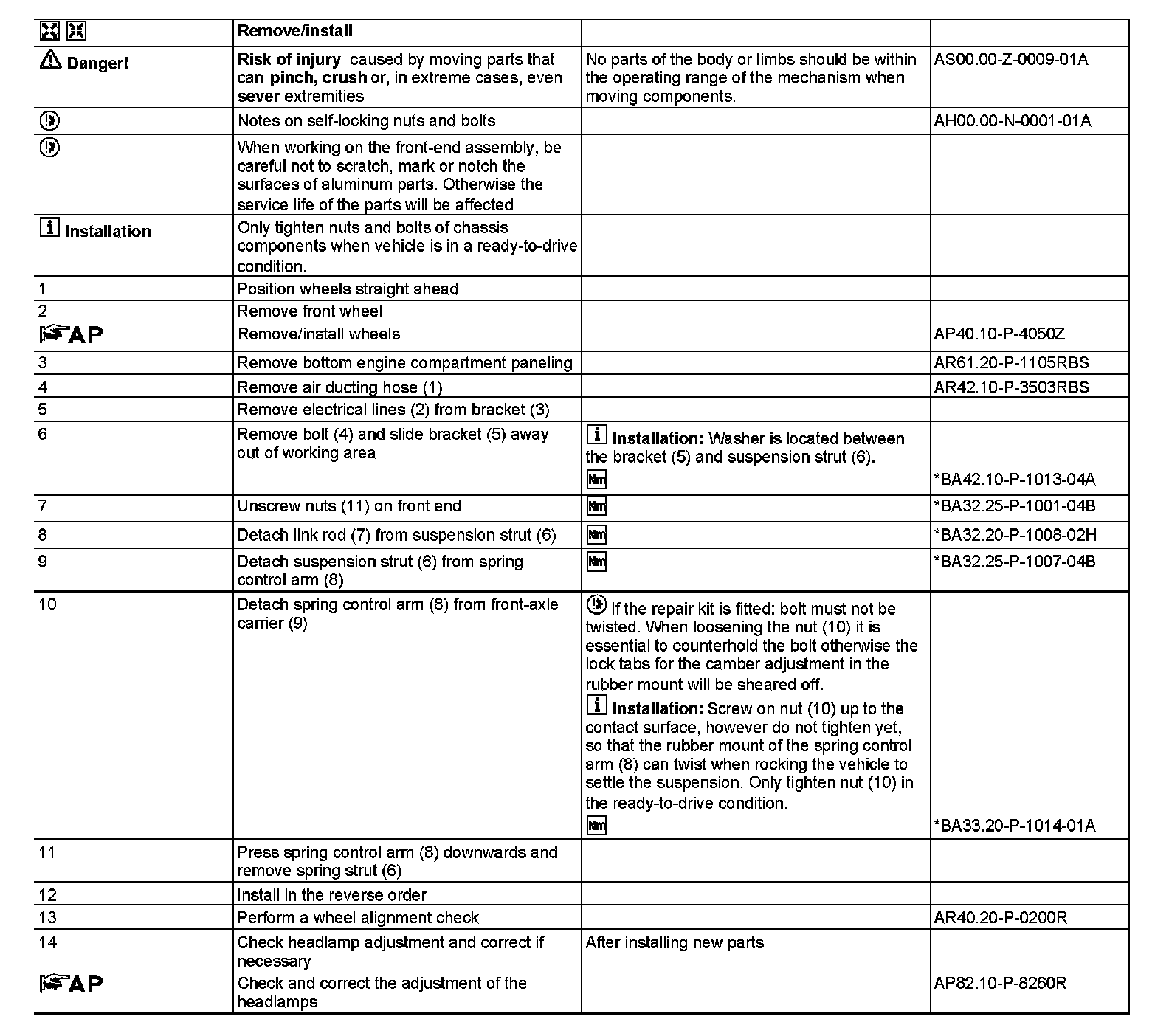

Steps 1-14:

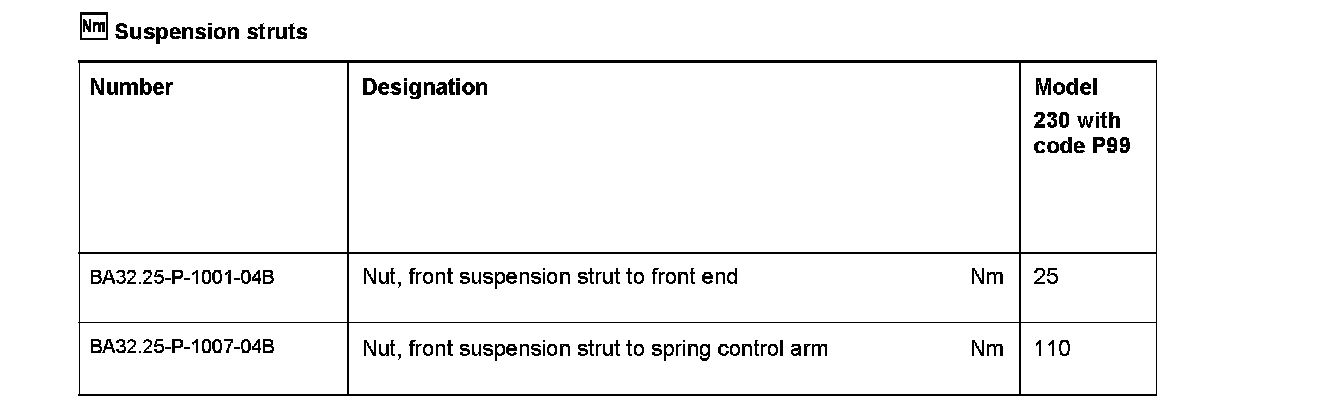

Suspension struts:

Front axle stabilizer bar:

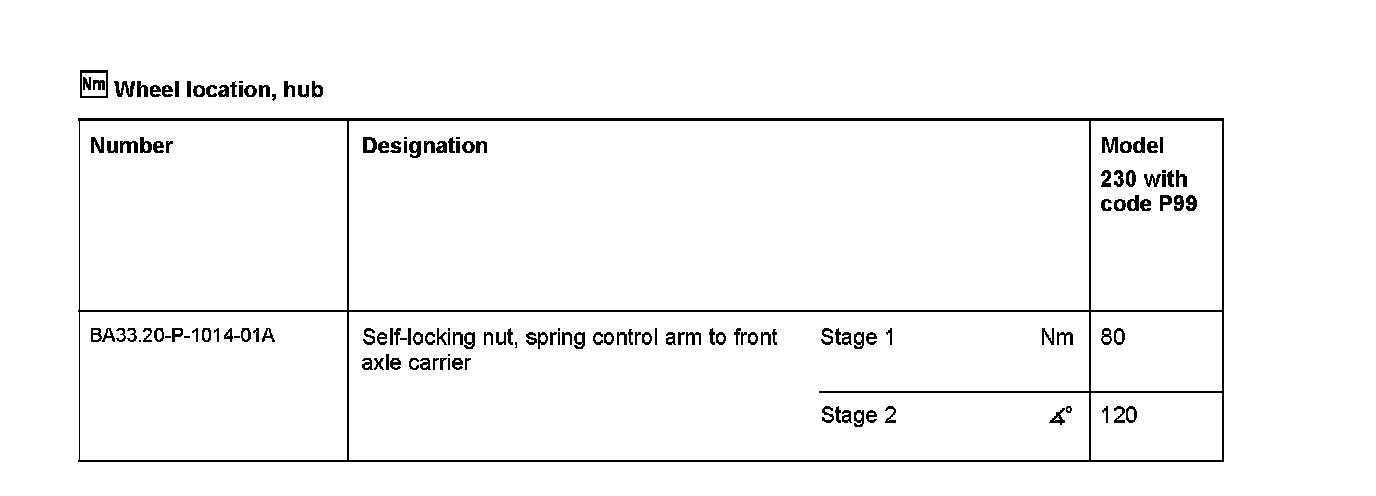

Wheel location, hub:

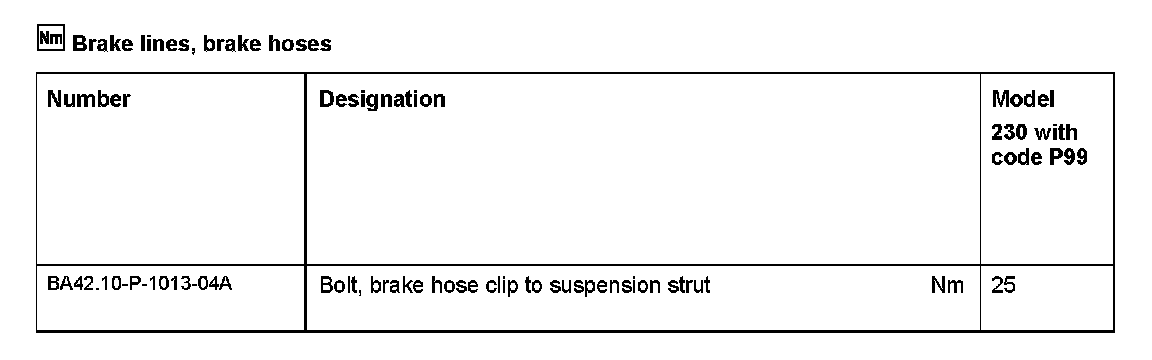

Brake lines, brake hoses:
