GF27.10-P-0001-02NRL Automatic Transmission (AT), Driver Information

GF27.10-P-0001-02NRL Automatic transmission (AT), driver information
- TRANSMISSION 722.9
- except CODE (428) Steering wheel shift buttons
- up to model year 08

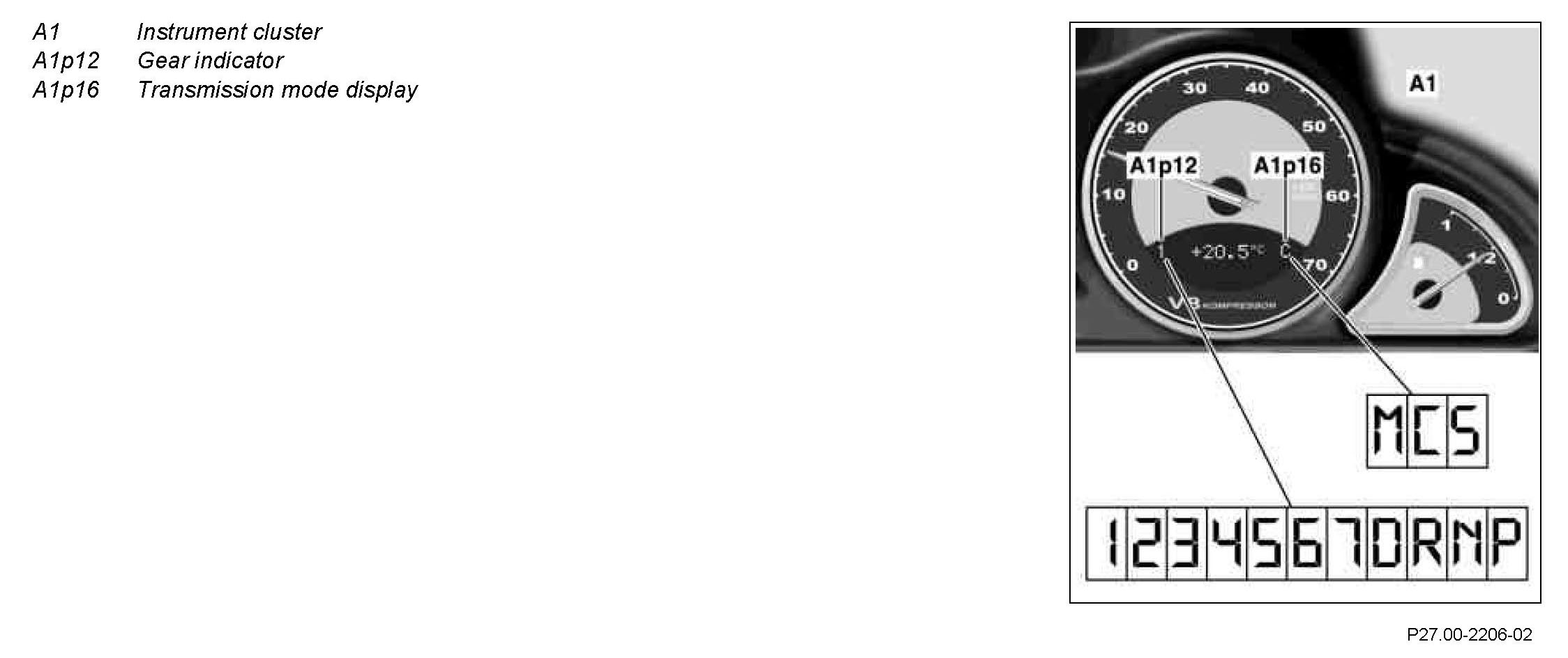

Component Identification:

Gear indicator (A1p12) in the instrument cluster (A1) in sport program "S" and in comfort program "C"
It indicates to the driver the currently selected shift range "1", "2", "3", "4", "5", "6" or the selector lever position "D", "R", "N" (neutral) or "P" (park).

Gear indicator (A1p12) in the instrument cluster (A1) in manual program "M"
It shows the driver the engaged gear "1", "2", "3", "4", "5", "6", "7".

Transmission mode display (A1p16) in instrument cluster (A1)
It shows the driver the "S" (sport program), "C" (comfort program) or "M" (manual program) selected at the transmission mode switch (S16/5).
