Interior - Ash Tray Closes Poorly Or Sticks

Date: February 12, 2009

Order No.: P-B-68.10/71a

Supersedes: P-B-68.10/71 dated Dec. 21, 2007

Group: 68

Revision History

Revision Date Purpose

a 2/12/09 Applicable Models Updated

- 12/21/07 Initial issue

SUBJECT:
Model 230.470/471/472/474/475/476/477/479

Ashtray Closes Poorly or Sticks

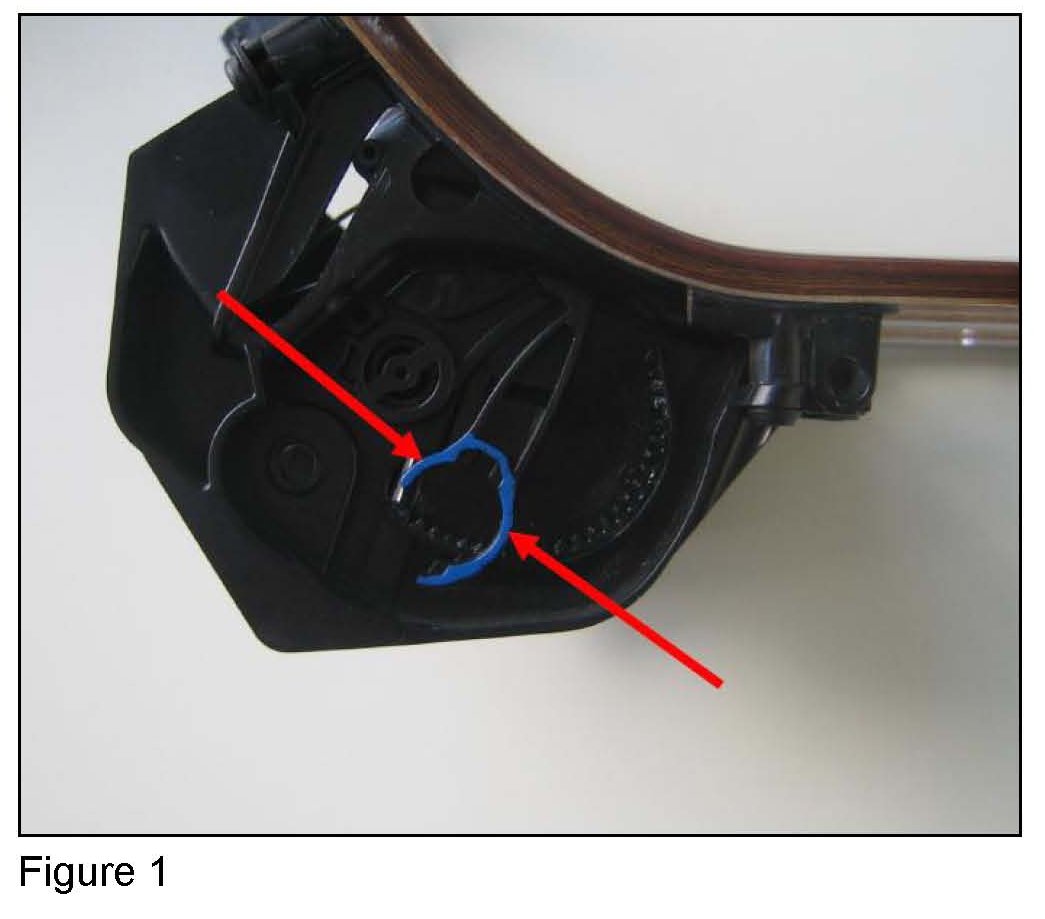

If you receive customer reports in the above model vehicles of the center console ashtray closing poorly or sticking, this may be due to the left side dampener mounting coming into contact with the ashtray housing. To resolve, remove the left side dampener mounting (Figure 1, arrows/highlighted area) using side cutting pliers.

Note:

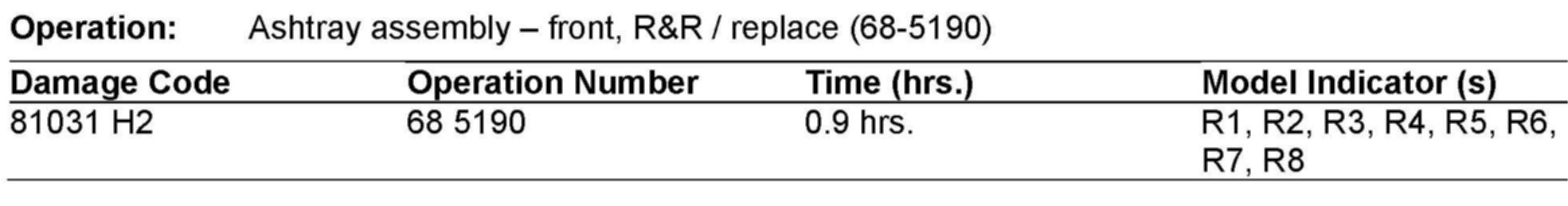

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on February 12, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
