Lifter / Lash Adjuster: Service and Repair
AR05.00-P-2011VA Remove/install hydraulic
valve clearance
compensation elements

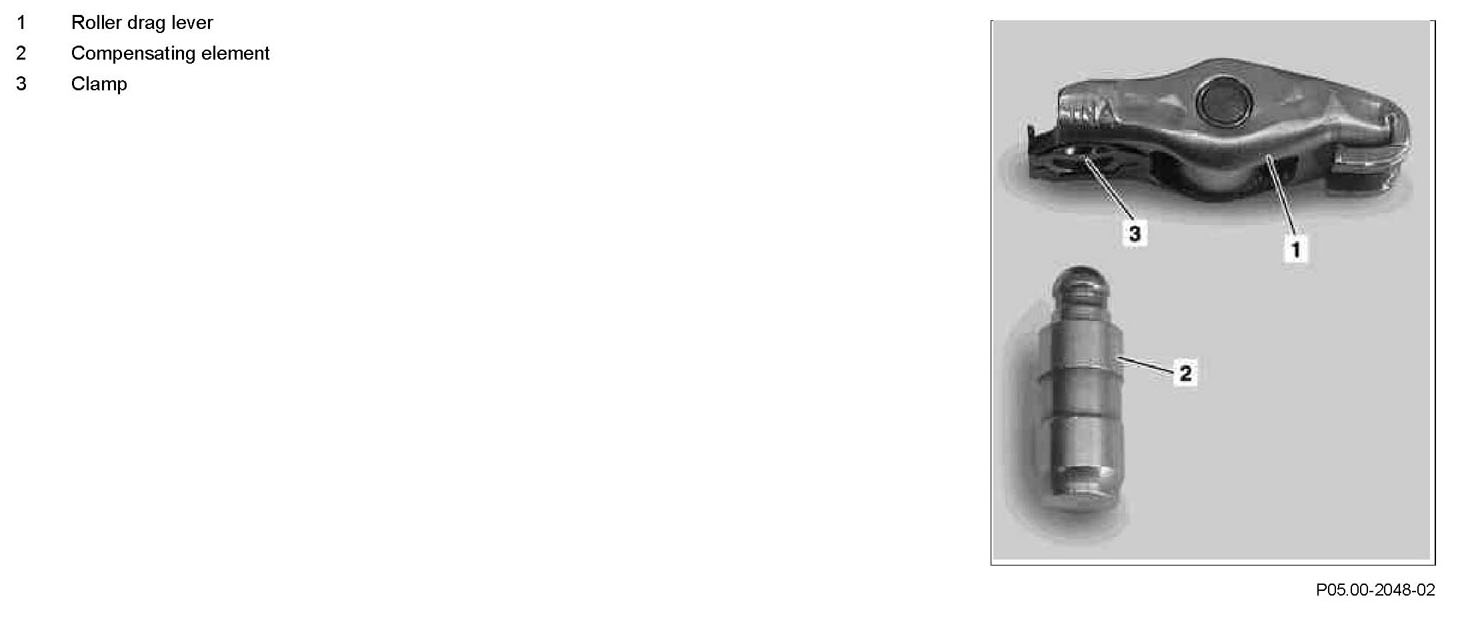

Component Identification:

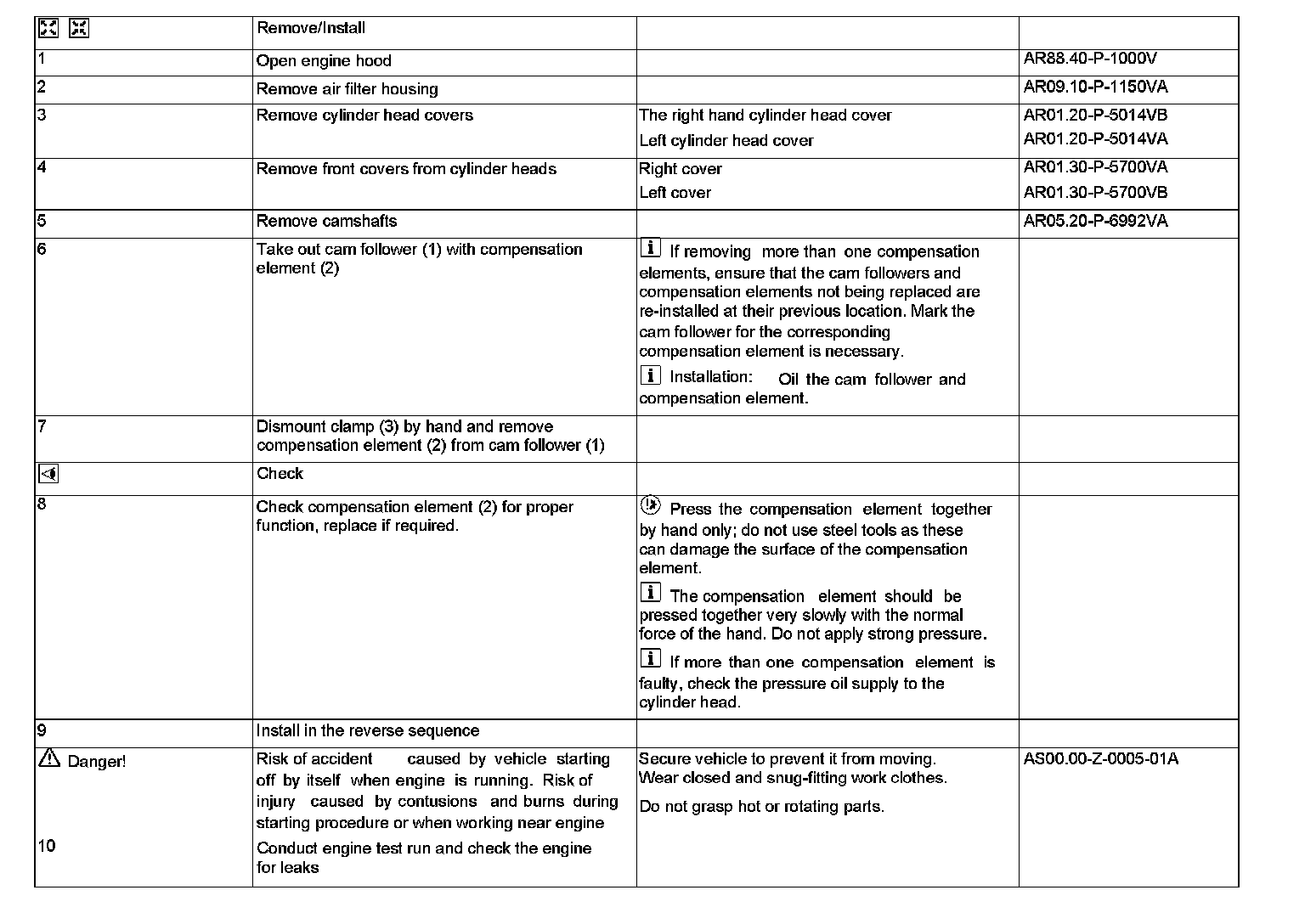

Steps 1-10:
