Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2008
>>
SLK 350 (171.456) V6-3.5L (272.963)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Grille
>>
Service and Repair
Grille: Service and Repair
AR88.40-P-4001V Remove/install Radiator Paneling

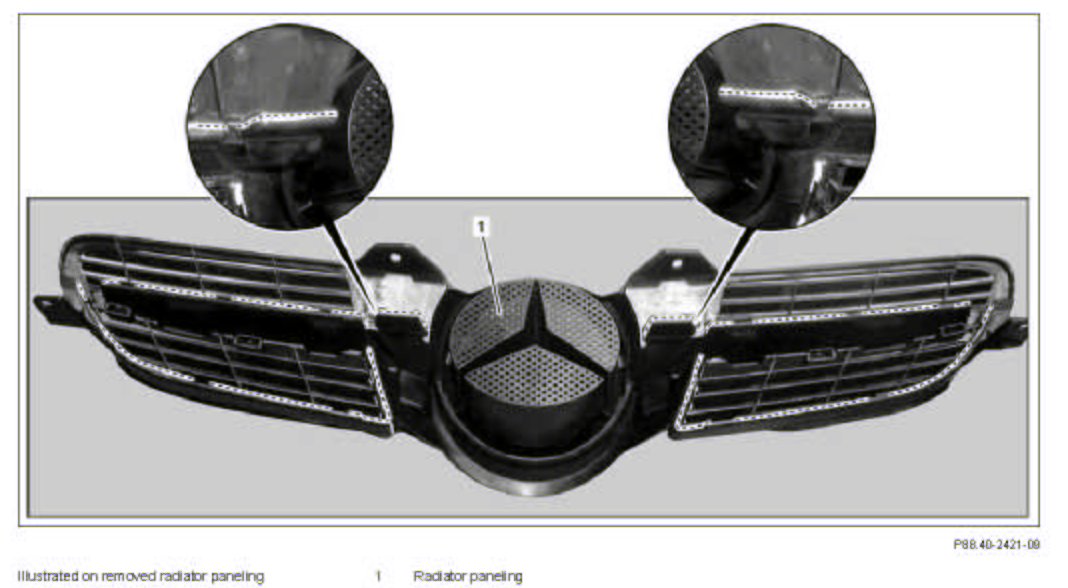

Component Identification:
Component Identification:

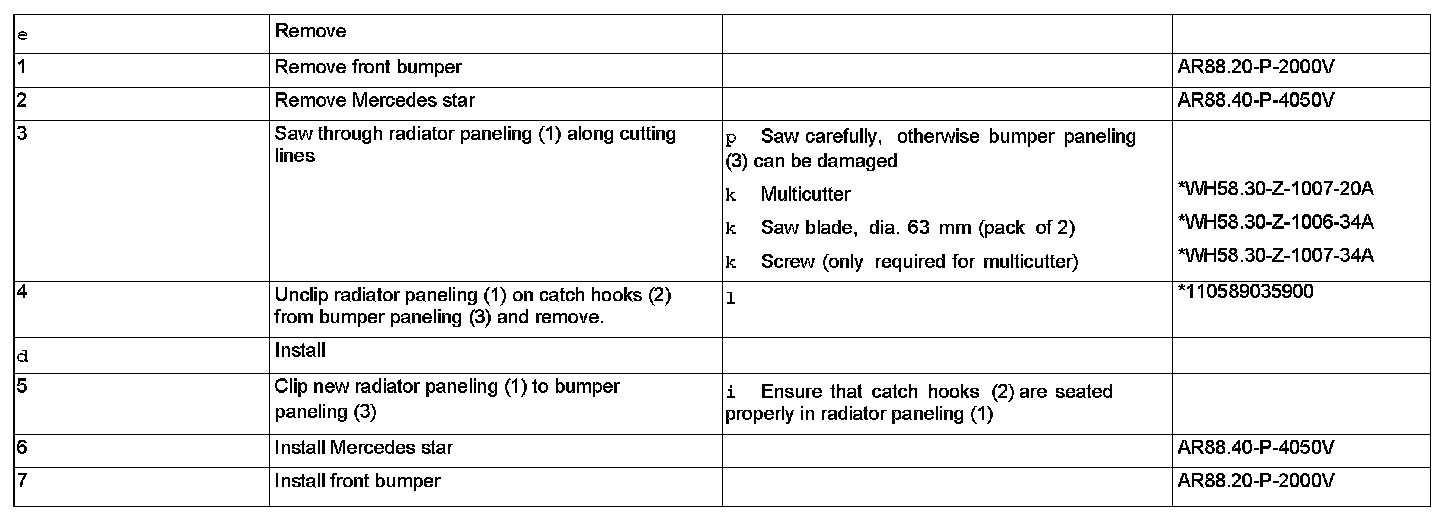

Steps 1 - 7:

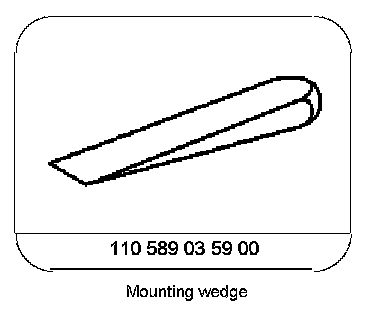

Special Tools:

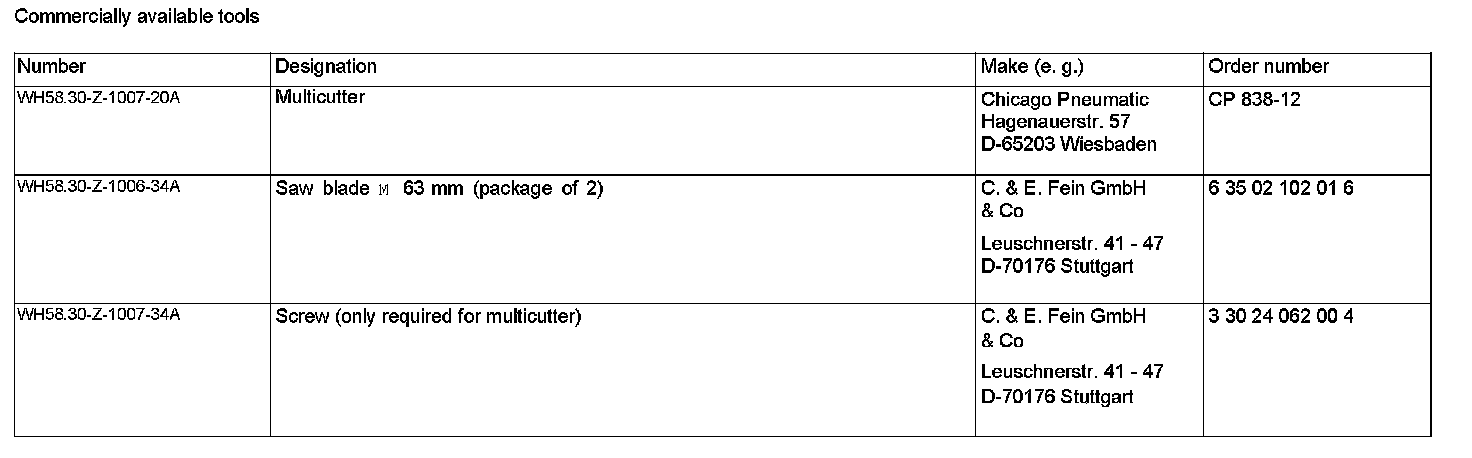

Commercially Available Tools:
