Auxiliary Water Pump: Description and Operation

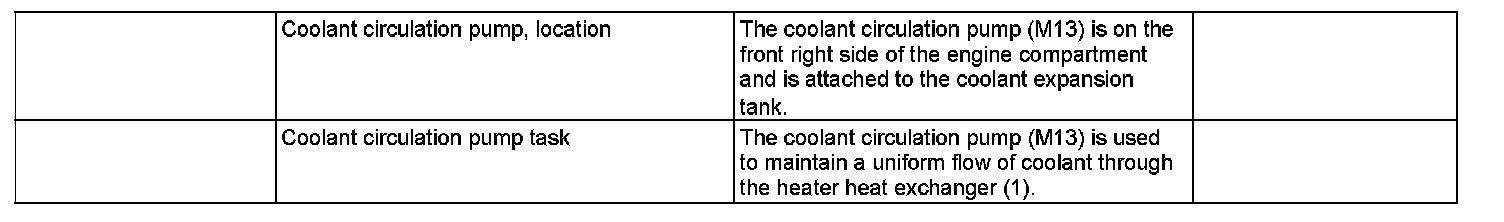

GF83.20-P-2122SK Coolant Circulation Pump Location/task

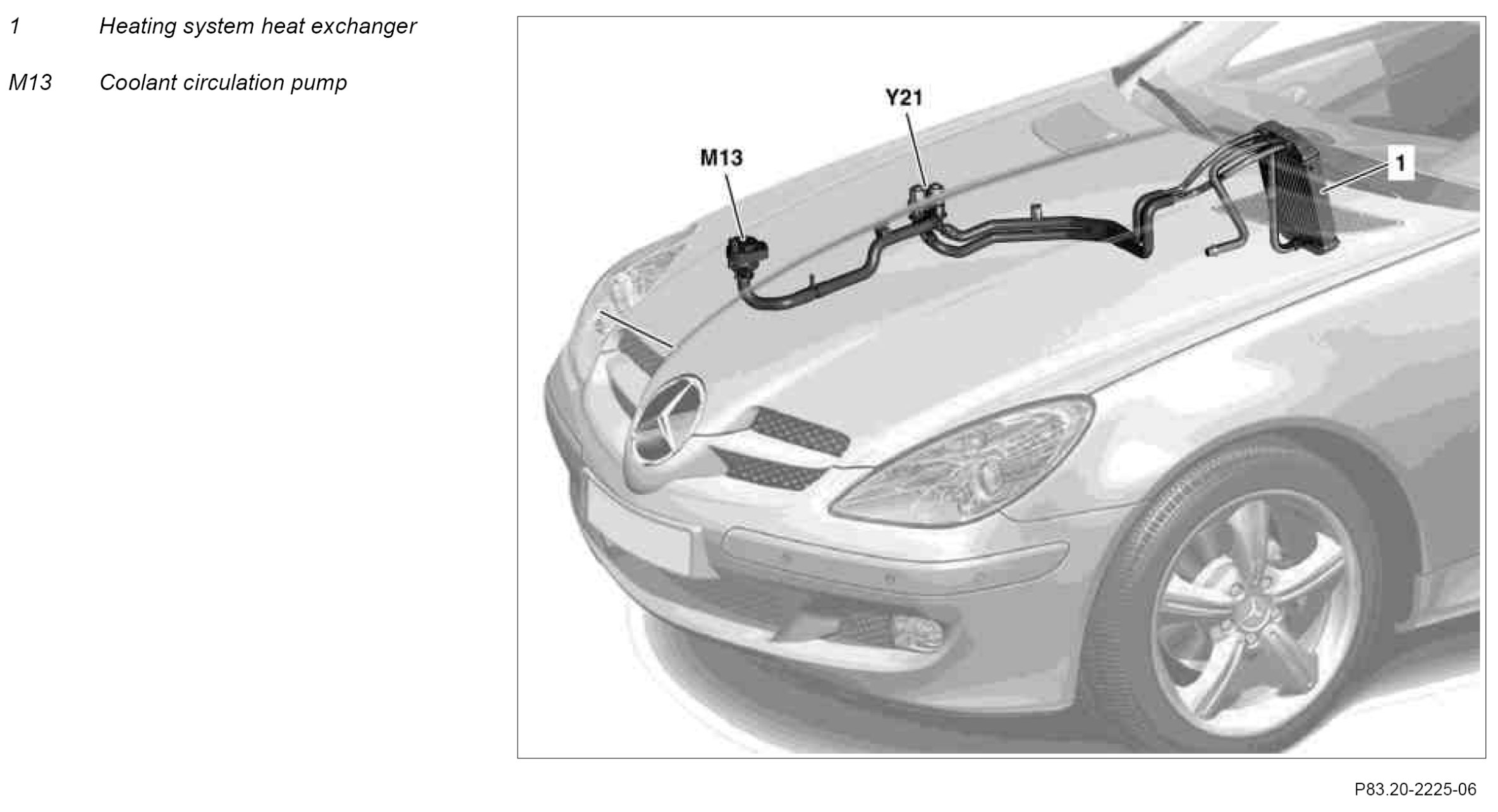

Component Identification:
