Heater Control Valve: Service and Repair
AR83.25-P-1150V Remove/ Install/ Replace Duovalve

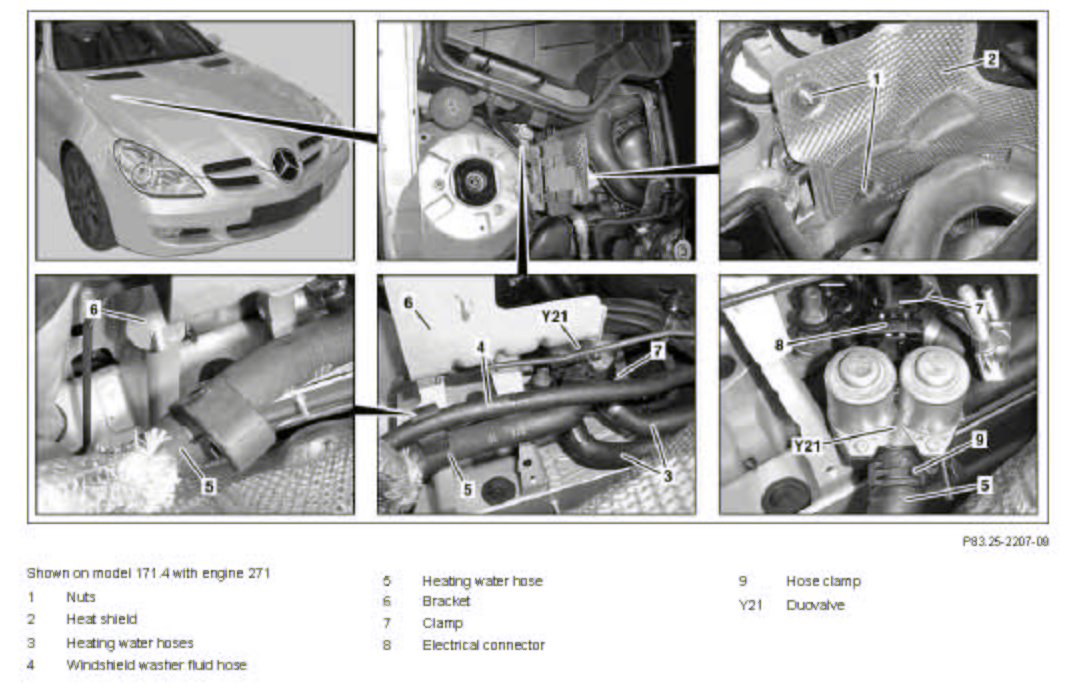

Component Identification:

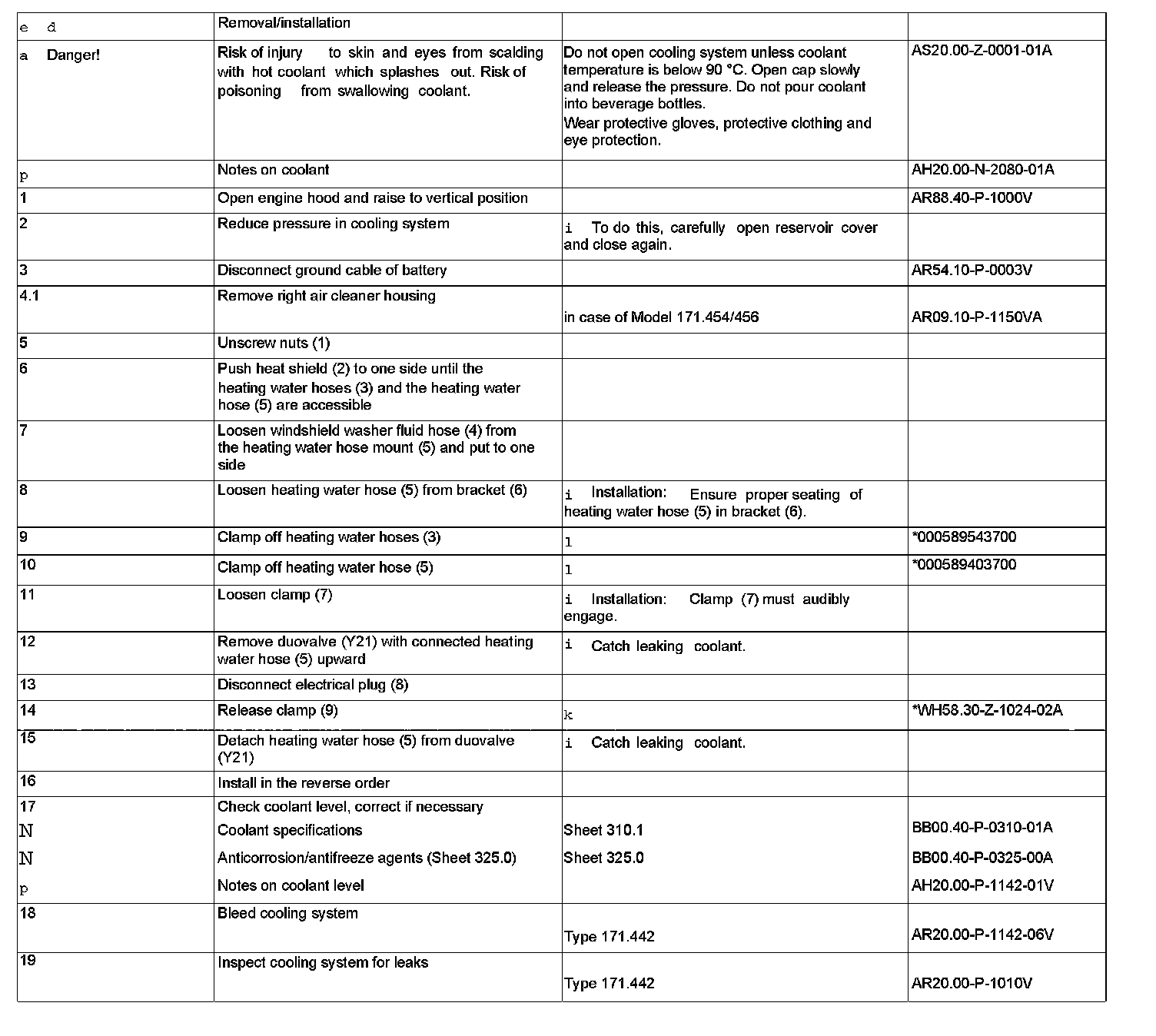

Steps 1 - 19:

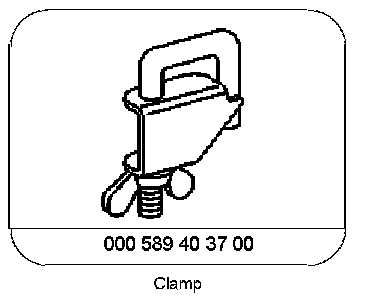

Special Tools:
Special Tools:
Commercially Available Tools:
