Parking Brake Warning Switch: Service and Repair
AR42.20-P-0501V Removing and installing parking brake indicator switch
Component Identification:

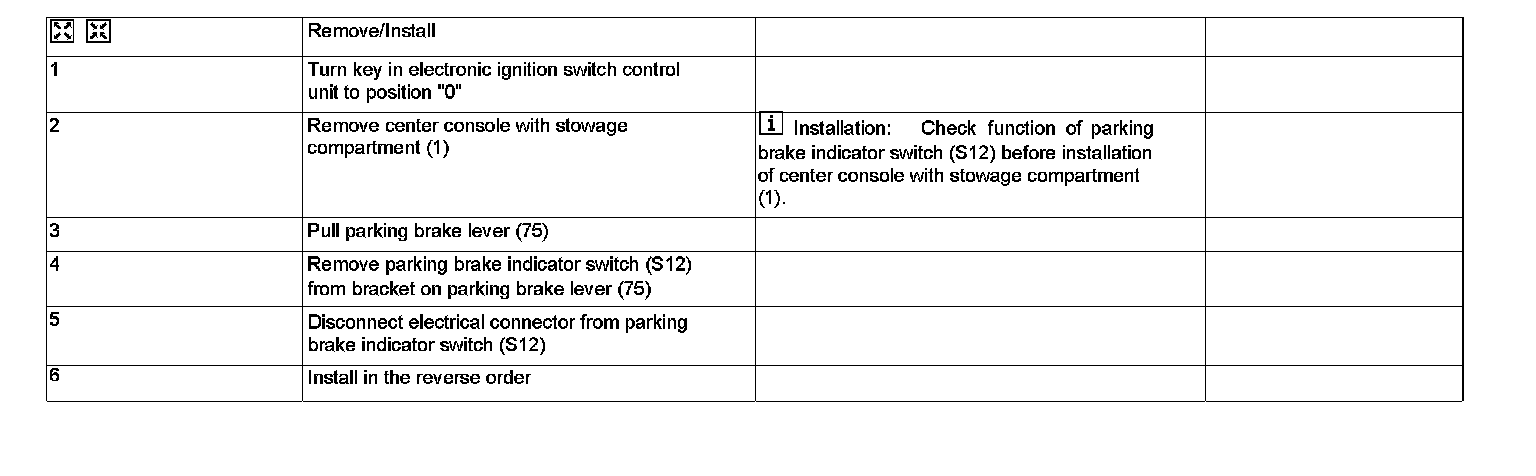

Steps 1-6:
