Interior - Cup Holder Noise On Uneven Road Surfaces

CUP HOLDER NOISES

Topic number LI68.10-P-048394

Version 1

Design group 68.10 Instrument panel

Date 11-25-2009

Validity R171 with code 309

Reason for change

Reason for block

Complaint:

Noises can occur in the area of the cup holder when driving over uneven road surfaces.

Cause:

Tolerances

Remedy:

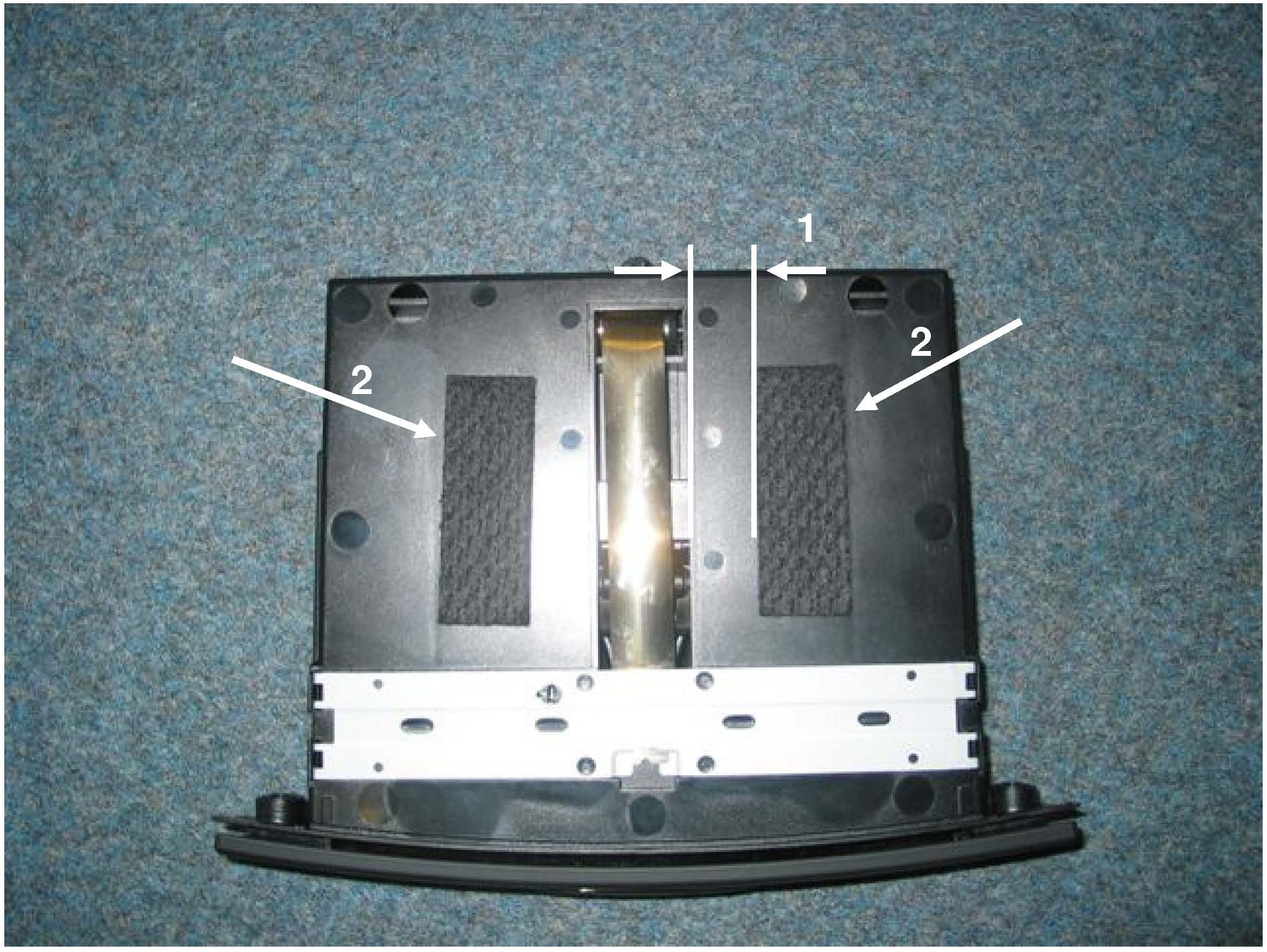

Apply two felt strips (2) of size 70x25x2mm to the upper side of the cup holder housing while maintaining the distance (1) of 15mm to the torsion spring.

* Sufficient for 14 cars, Submit as Local Purchase FSR00037, Qty 1, handling is included

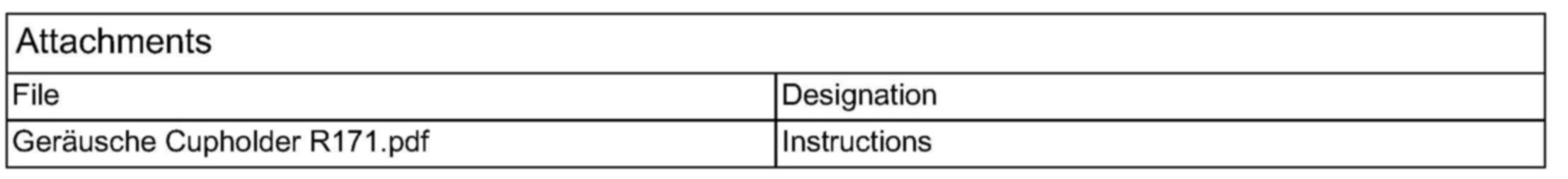

Attachments





Symptoms

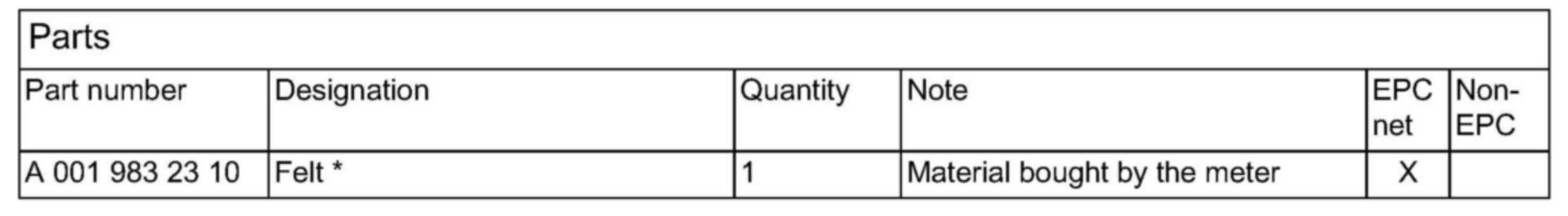

Parts

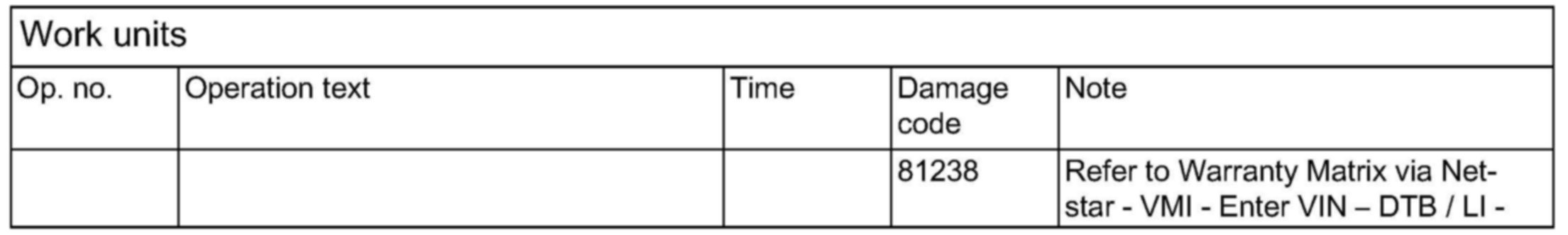

Work units

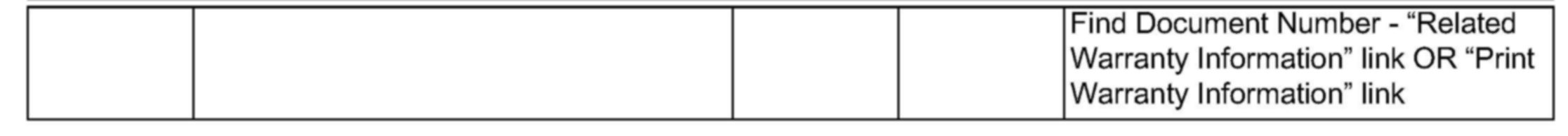

WIS-References





Validity





Attachment - Instructions
