Body - Noise From Sunroof During Opening/Closing

Date: November 19, 2008

Order No.: P-B-77.20/71

Supersedes:

Group: 77

SUBJECT:
Model 204.054/056/077/081

Noise from Panoramic Roof During Opening and Closing

If you receive customer reports in the above model vehicles of noise from the panoramic roof area during opening and closing, this may happen in strong sunlight or at temperatures over 86 degrees F. To remedy, clean and lubricate upper sliding frame of sliding roof (guide rails, pivot arms of wind deflector and glass cover at sides). Refer to WIS document AP77.20-P-7732CW.

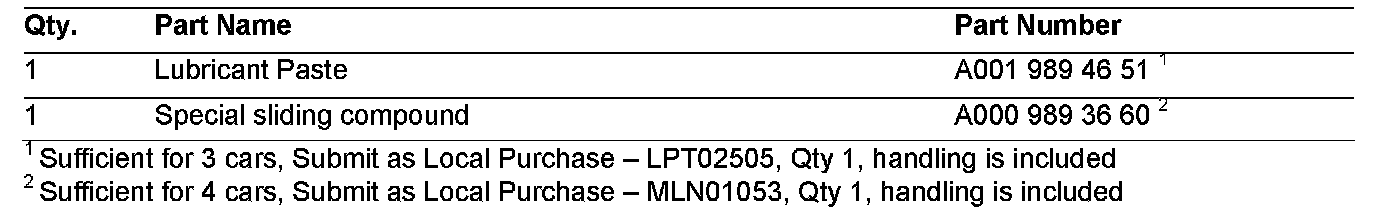

Parts Information

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 19, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty

Operation: Sliding roof tracks, clean and lubricate (electric sunroof) (77-2082)
