Lighting - Bi-Xenon Headlamp(s) Inoperative/Codes Set
Date: February 3, 2009Order No.: P-B-82.10/625a
Supersedes: P-B-82.10/625 dated May 27, 2008
Group: 82
Revision History
Revision Date Purpose
a 2/3/09 VIN Break Included
- 5/27/08 Initial issue
SUBJECT:
Model 204.054/056/081, Equipped with Bi-Xenon (Codes 614/615),
up to VIN R064140
Headlamp Nonfunctional, Possible Moisture Penetration

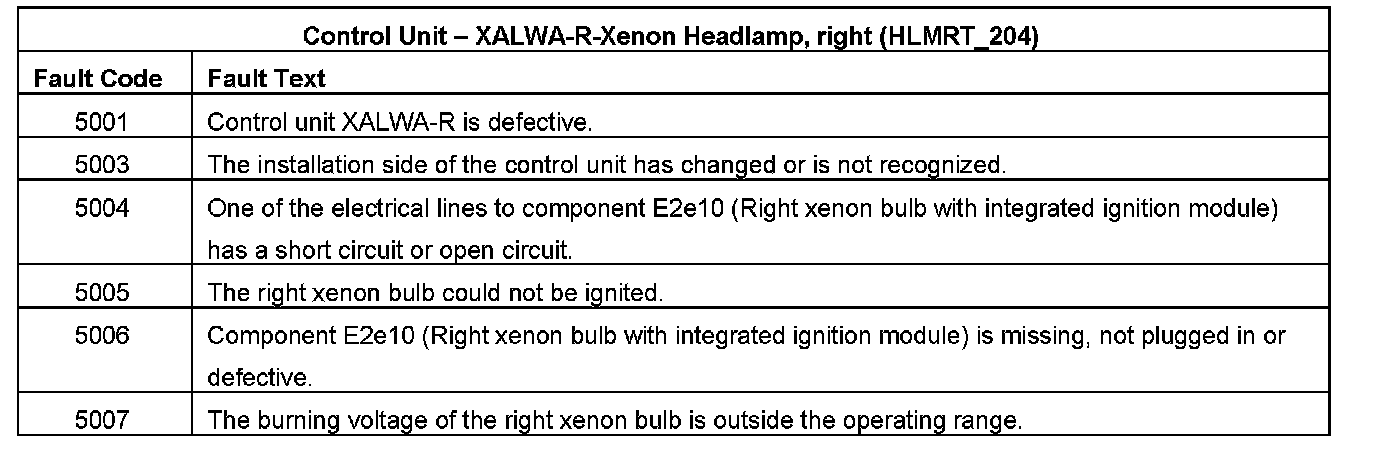

If you receive customer reports in the above model vehicles that the headlamp is nonfunctional with at least one of the above fault codes and/or that there is moisture in the headlamp unit, there may be inadequate bonding of the lens which may cause moisture to collect at the lowest point of the headlamp and may enter the XALWA control unit. To resolve, remove the headlamp from the vehicle and disassemble the XALWA control unit. If there are traces of corrosion on the pins, the entire headlamp must be replaced.

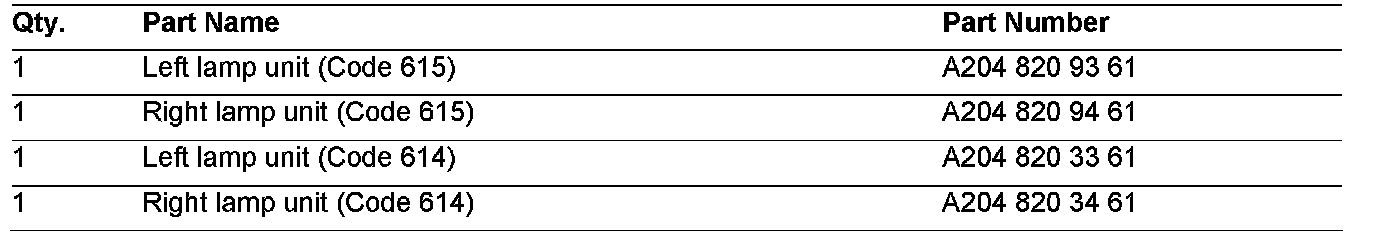

Parts Information
Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on May 27, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table above.
