Lighting - Headlamp Mount Part Update

Date: August 17, 2010

Order No.: P-B-82.00/695

Supersedes:

Group: 82

SUBJECT: MY-All, Models 204 and 207

Part Change to Banjo Bolt for Headlamp Mount

The latch for the banjo bolt for the headlamp mount is no longer needed; therefore, the new part is now screwed onto the lamp frame using a thermoplastic nut.





Install Banjo bolt A 001 997 01 01 in 204 as shown in figure 1 and to install the banjo bolt on the 207, modify as in Figure 2.

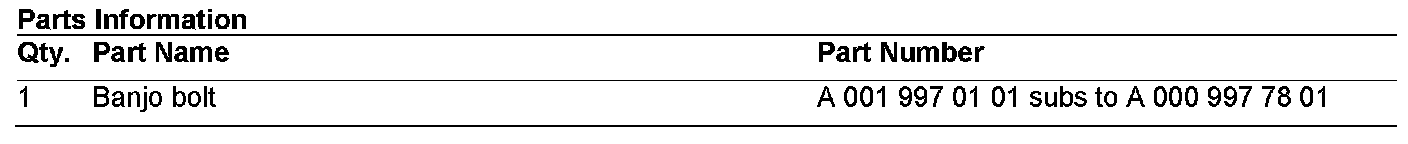

Parts Information
