Dome Lamp: Service and Repair



AR82.20-P-0113SC Remove/Install Rear Dome Lamp

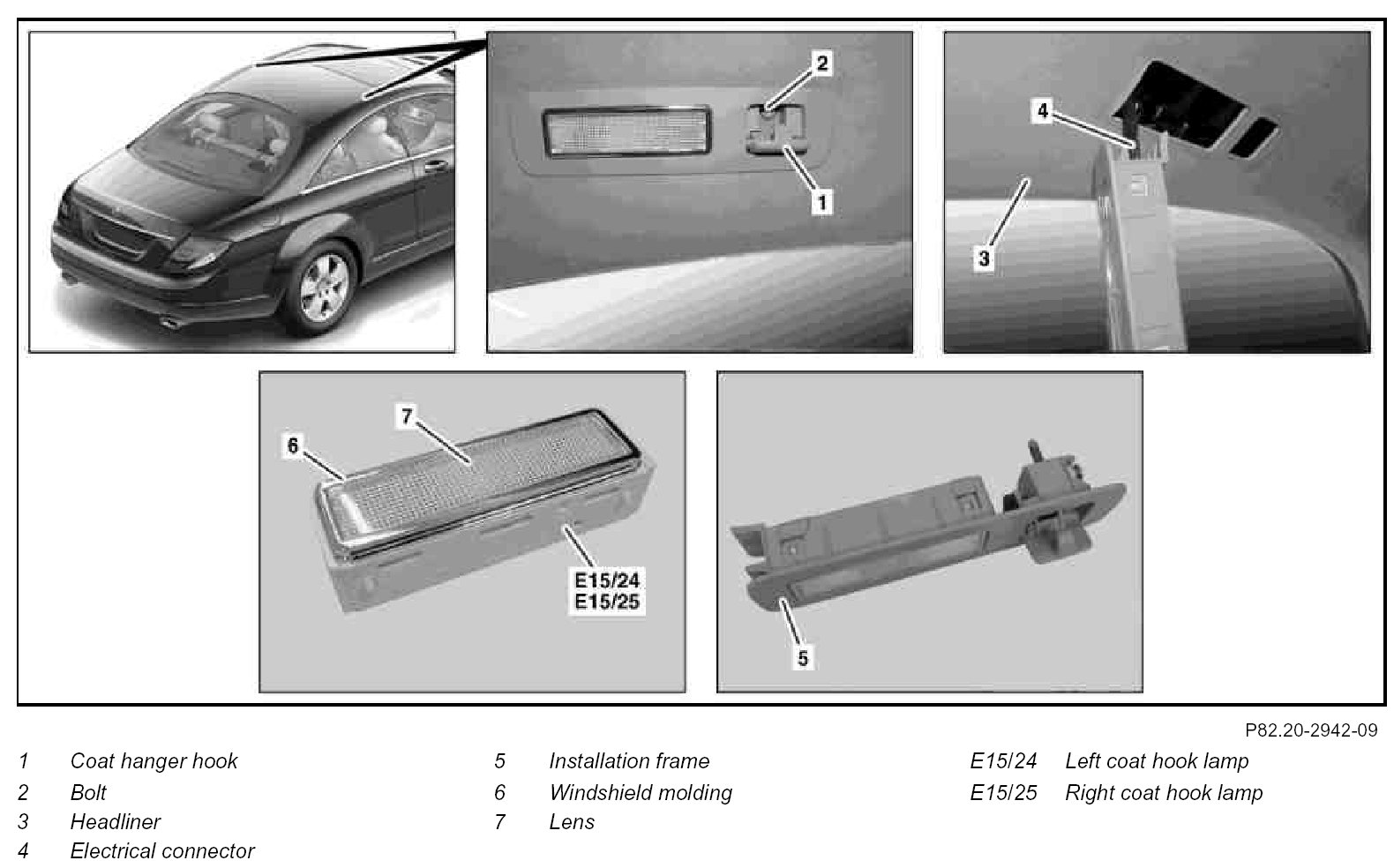

Component Identification:

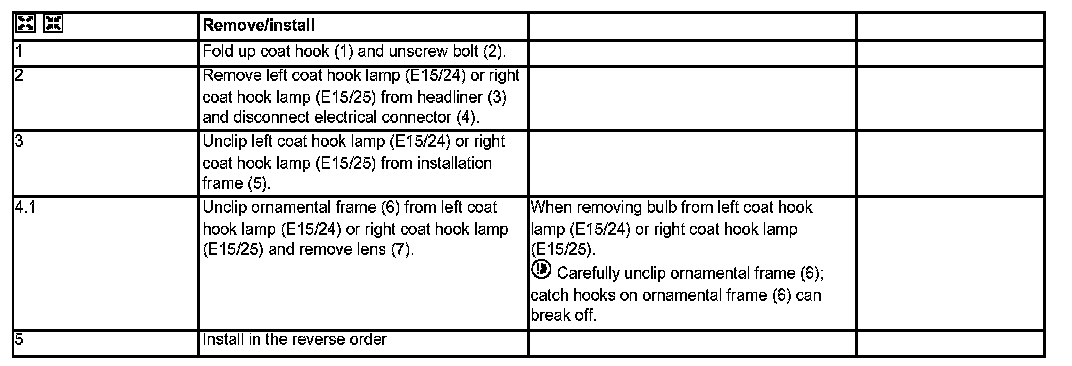

Steps 1 - 5:
