Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Radiator Cooling Fan
Radiator Cooling Fan

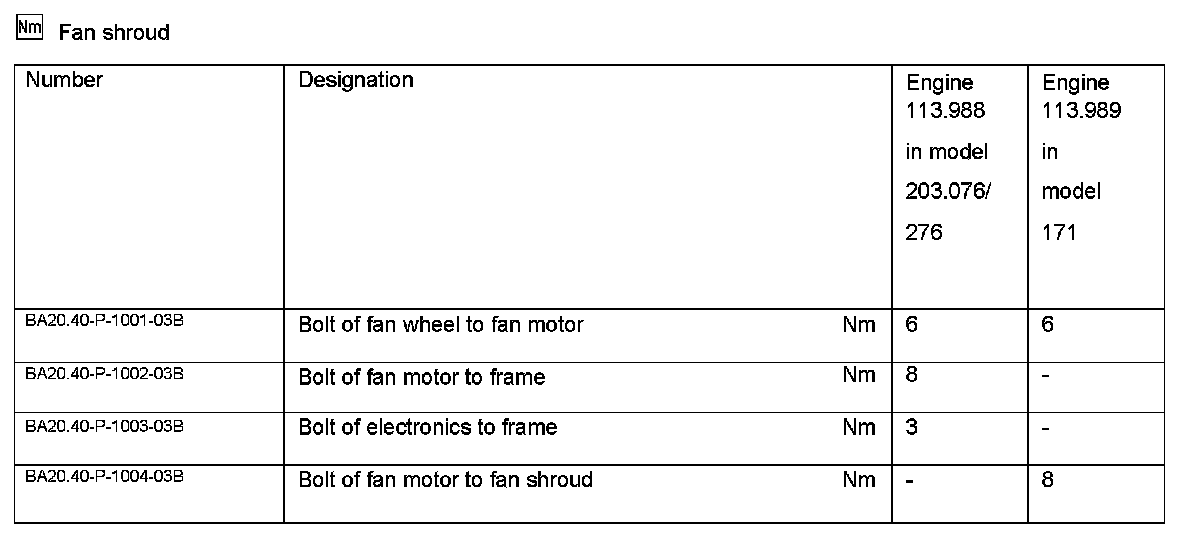

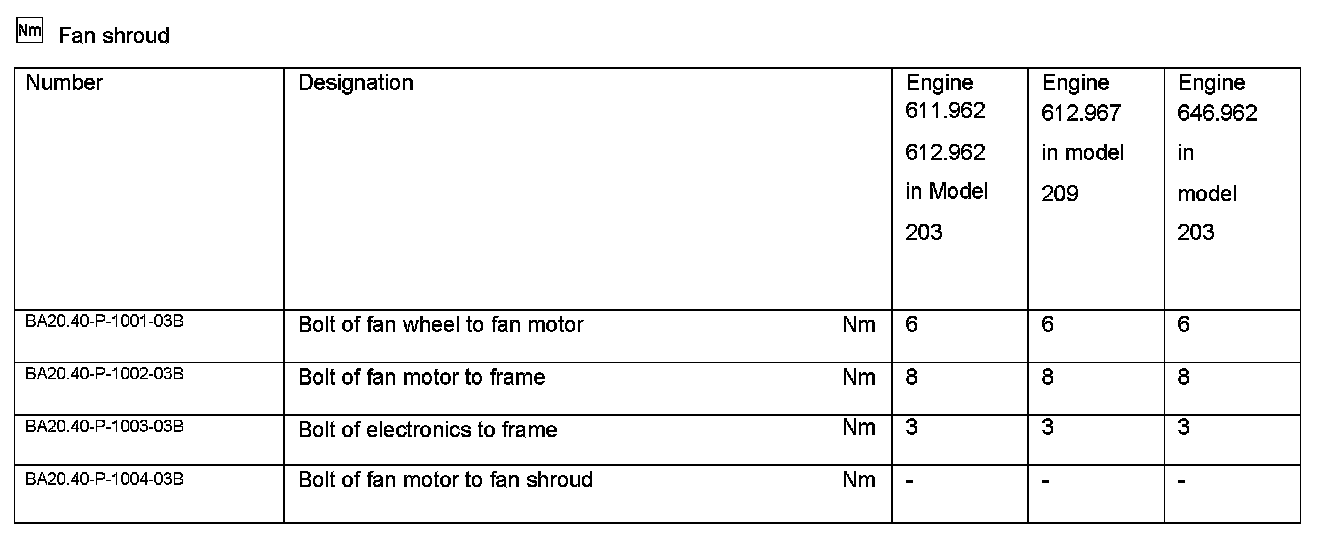

Fan shroud
