Splash Guard: Service and Repair

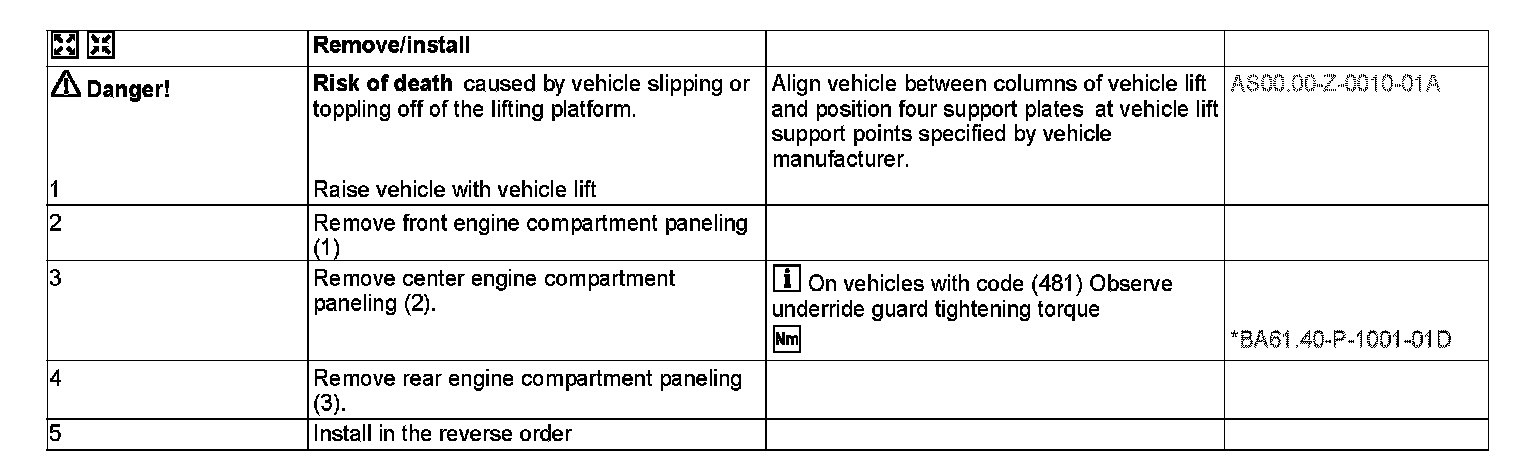

AR61.20-P-1105SX Remove And Install Bottom Engine Compartment Paneling
- except CODE (Z07) Top protection [models 221)

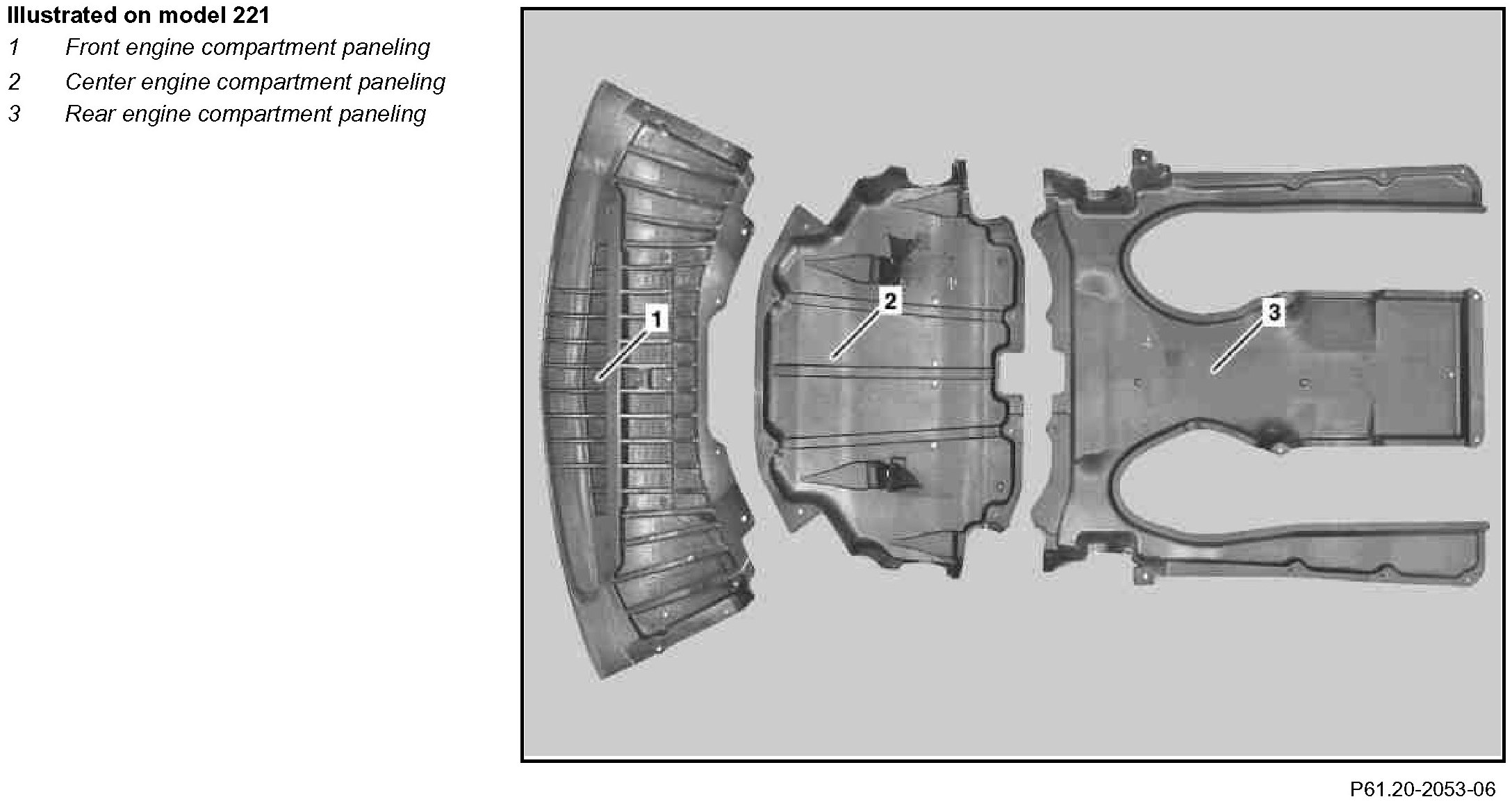

Component Identification:
