Brake Pedal Assy: Service and Repair
AR29.10-P-0300SX Remove/install pedal assembly
-
with TRANSMISSION 722.6/9

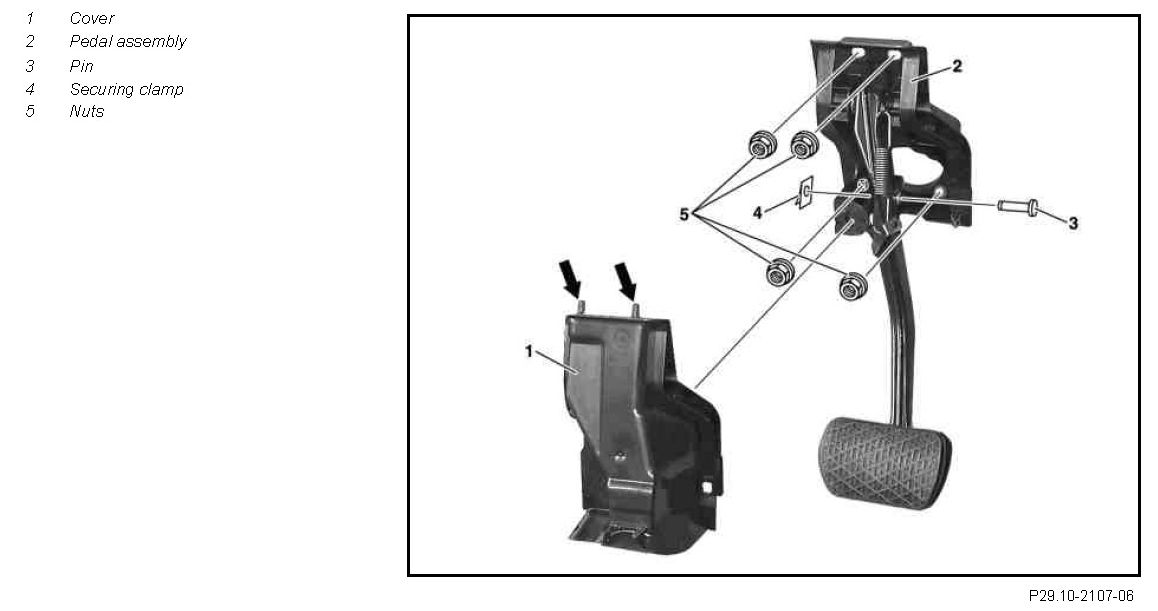

Component Identification:

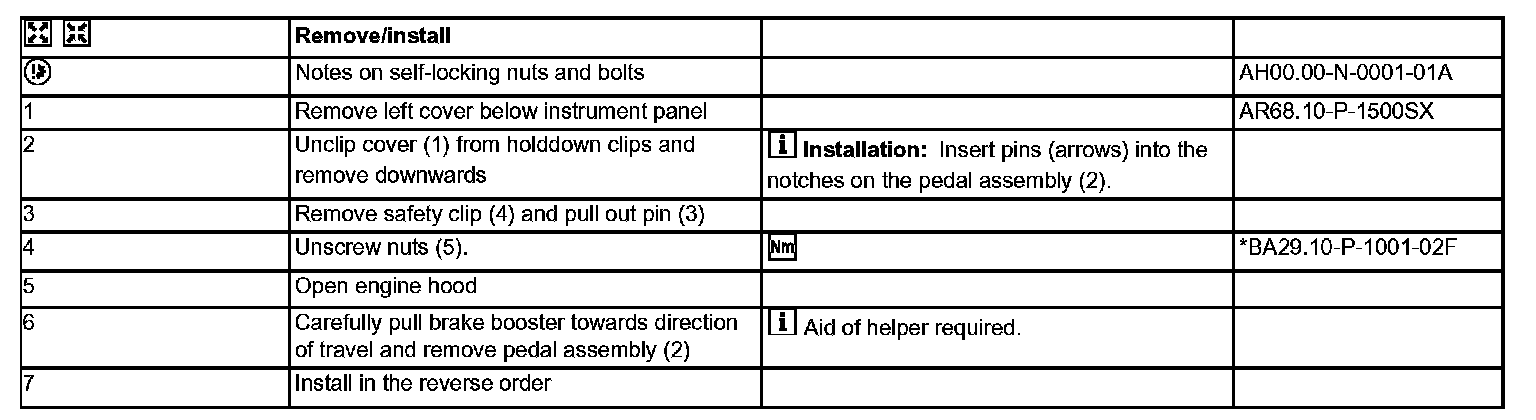

Remove/install Steps 1-7:

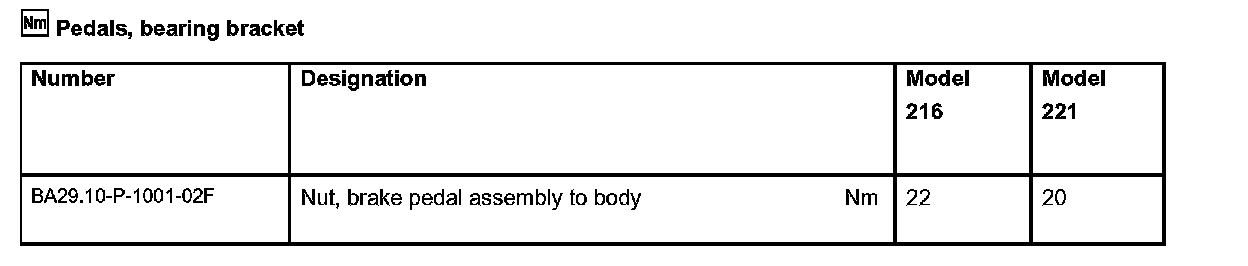

Pedals, bearing bracket:
