Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2009
>>
CL 63 AMG (216.377) V8-6.3L (156.984)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Heater Core
>>
Service and Repair
Heater Core: Service and Repair
AR83.25-P-1100SX Remove And Install Heat Exchanger

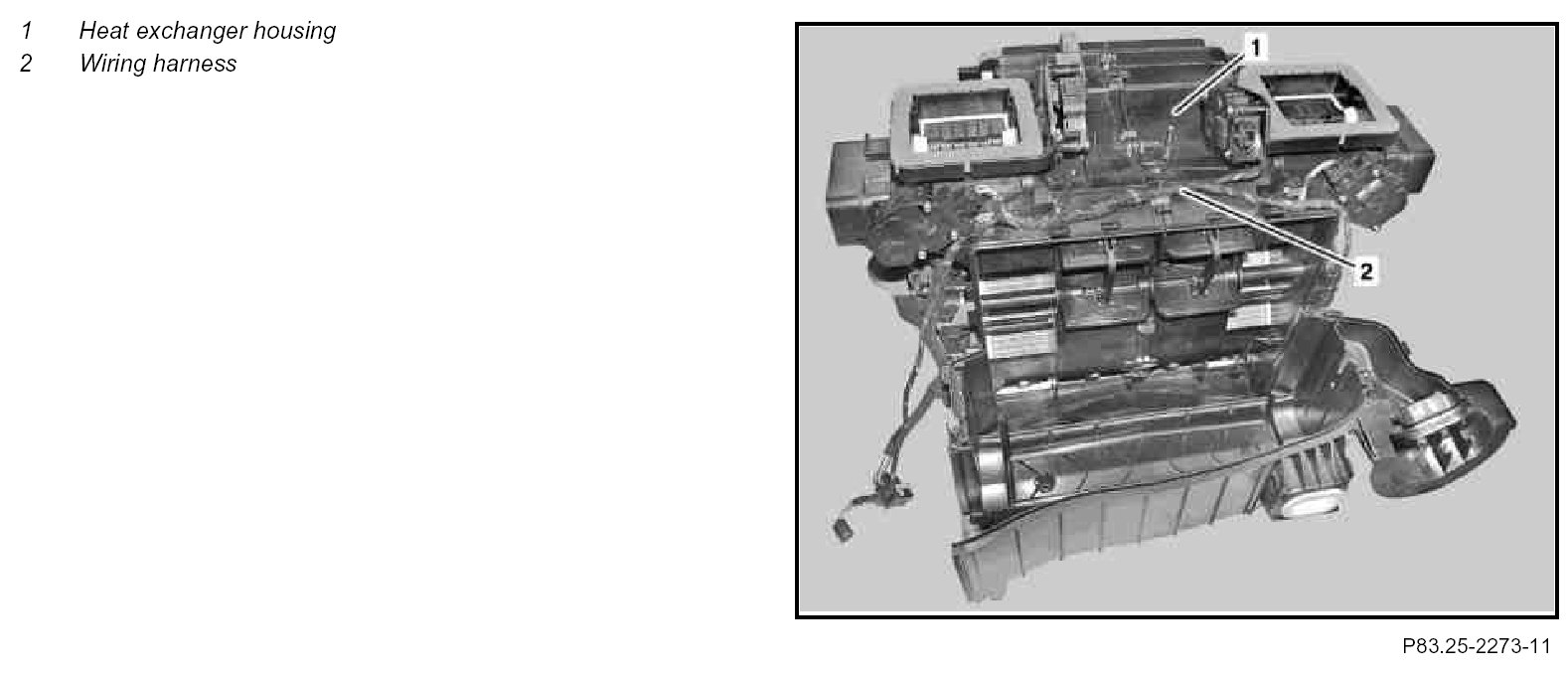

Component Identification:

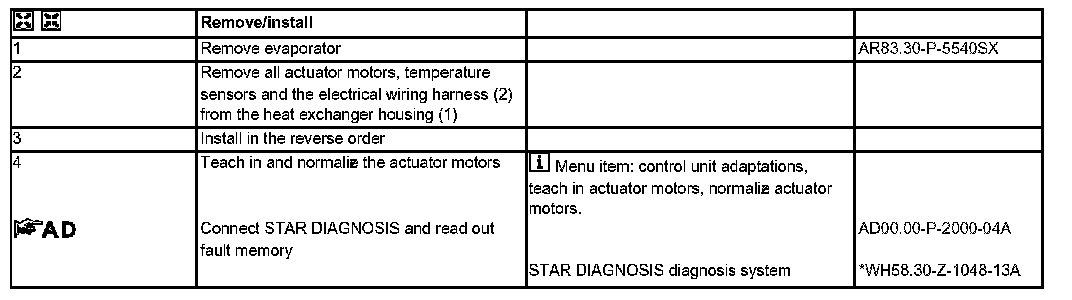

Steps 1 - 4:
Commercially Available Tools:
