AR01.00-P-1300QB Inspect Cylinders For Leaks
AR01.00-P-1300QB Inspect Cylinders For Leaks
AR01.00-P-1300QB Inspect cylinders for leaks

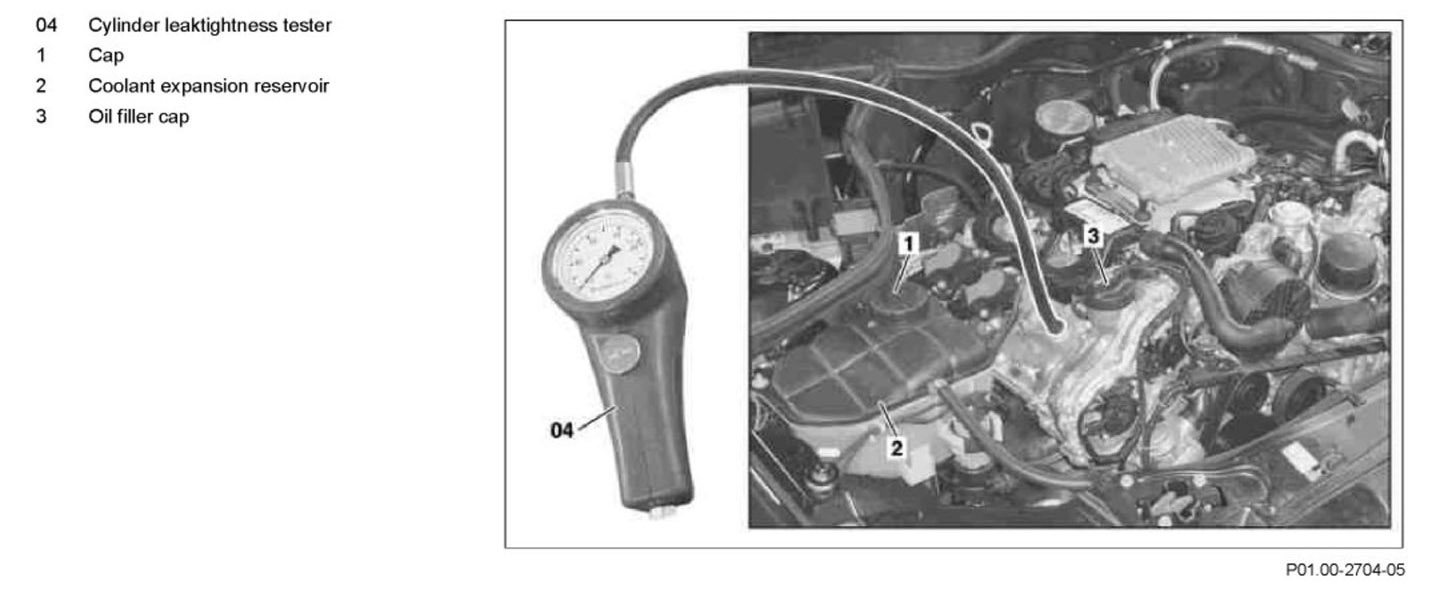

Component Identification:

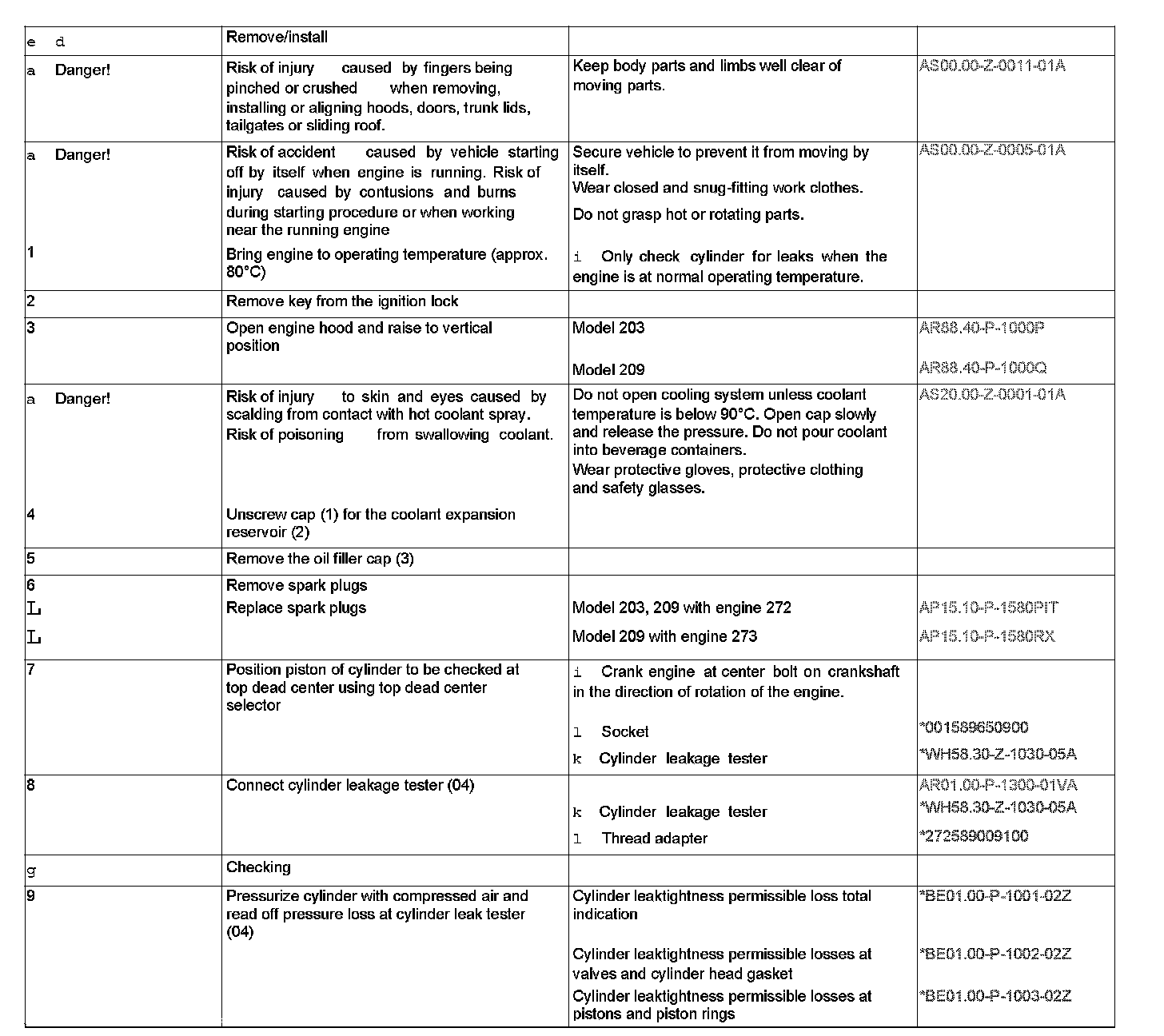

Steps 1 - 9:

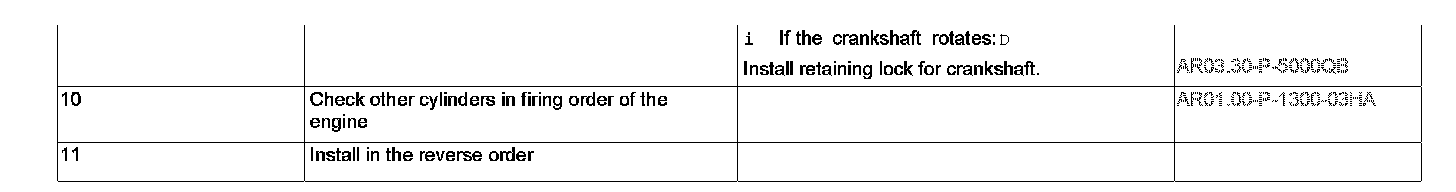

Steps 10 - 11:

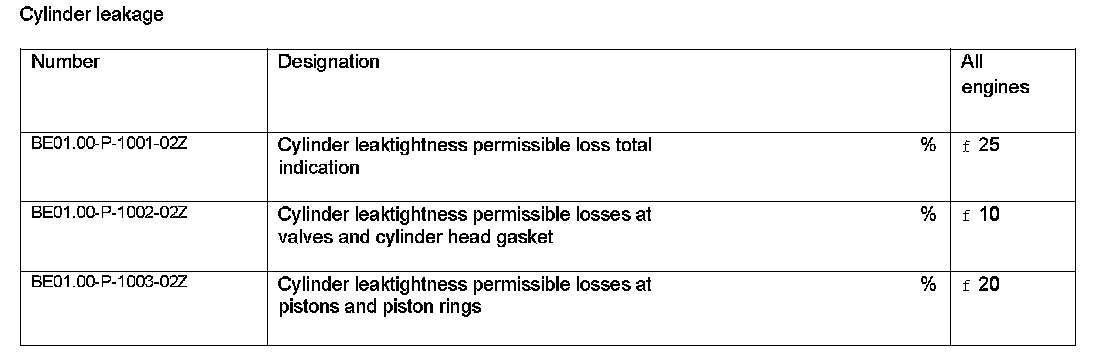

Cylinder leakage:
Special Tools:

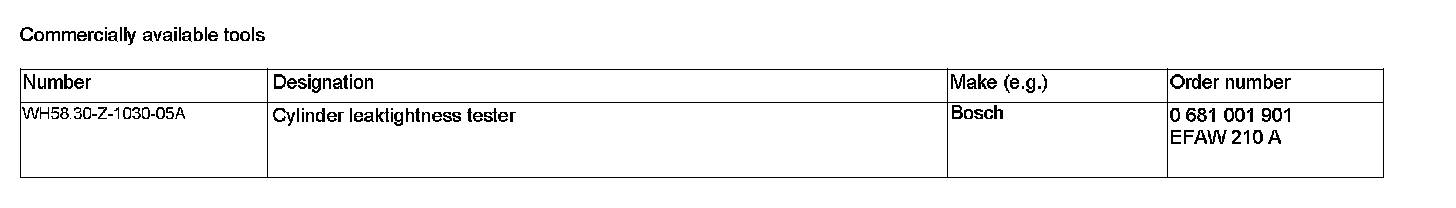

Commercially Available Tools:
