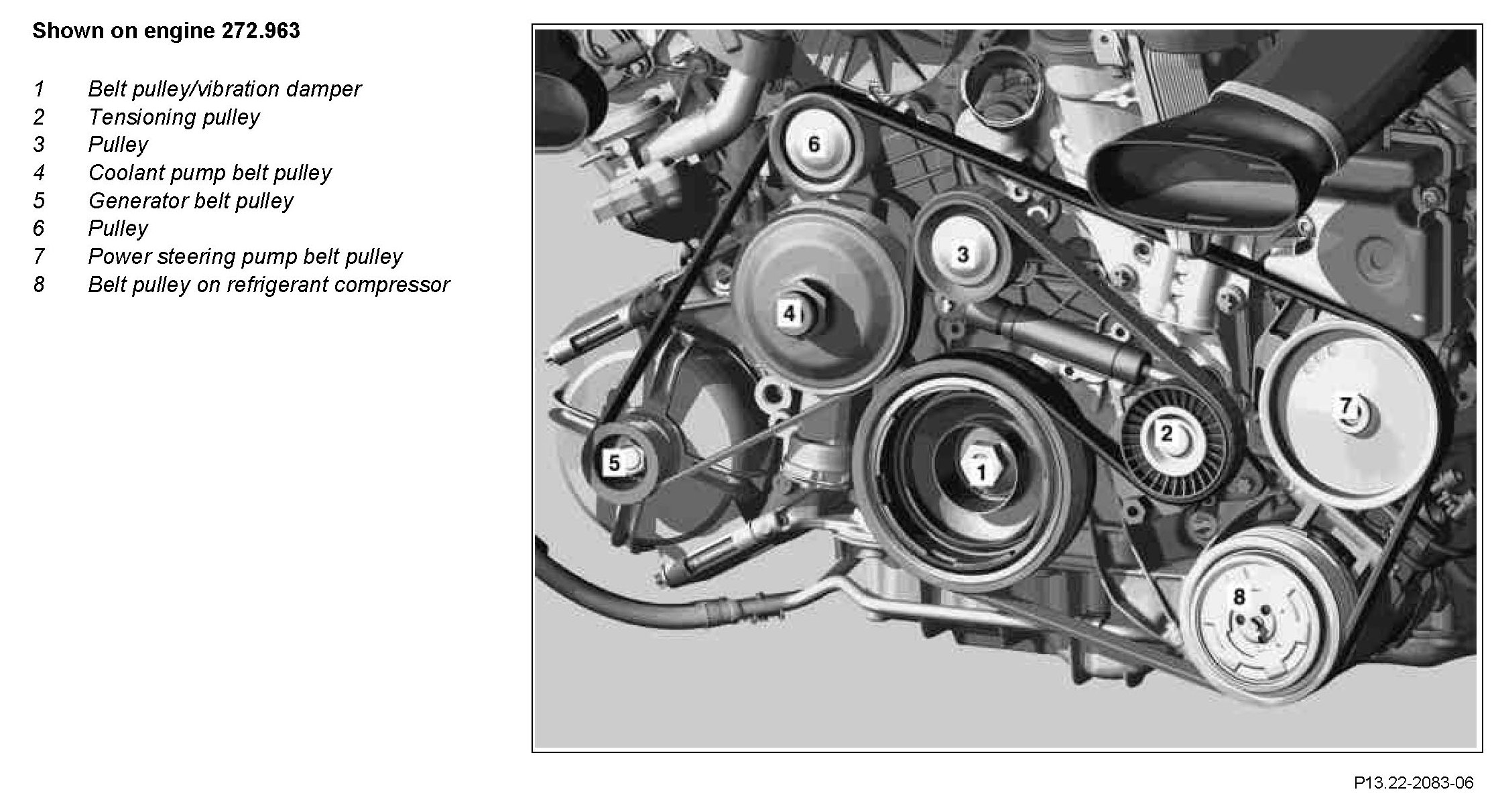

AR13.22-P-3902-02VA Routing Diagram of Poly V-Belt
AR13.22-P-3902-02VA Routing Diagram of Poly V-Belt
AR13.22-P-3902-02VA Routing Diagram Of Poly V-belt
Component Identification:
