Drive Belt: Testing and Inspection

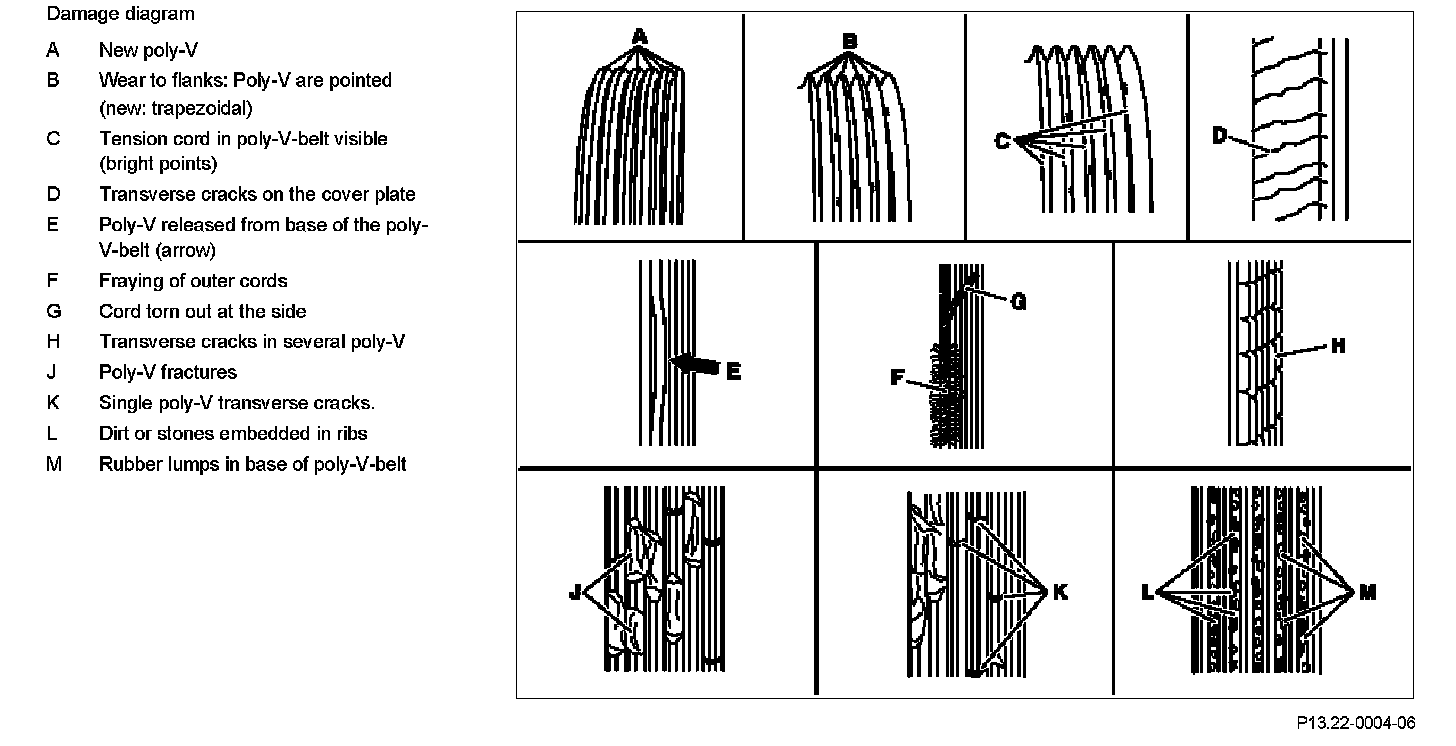

AP13.22-P-1352PIT Check poly-V-belt in visible area for wear

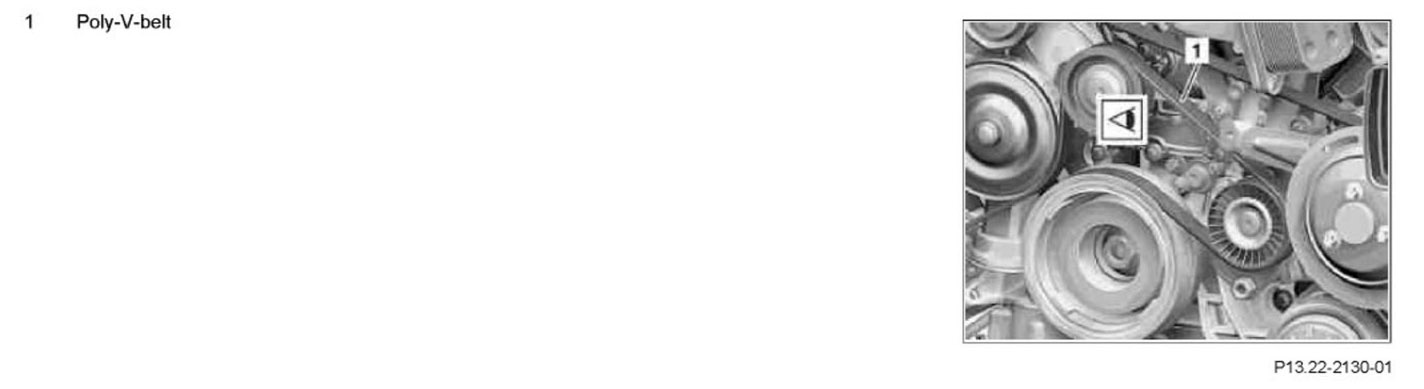

Component Identification:
Component Identification:

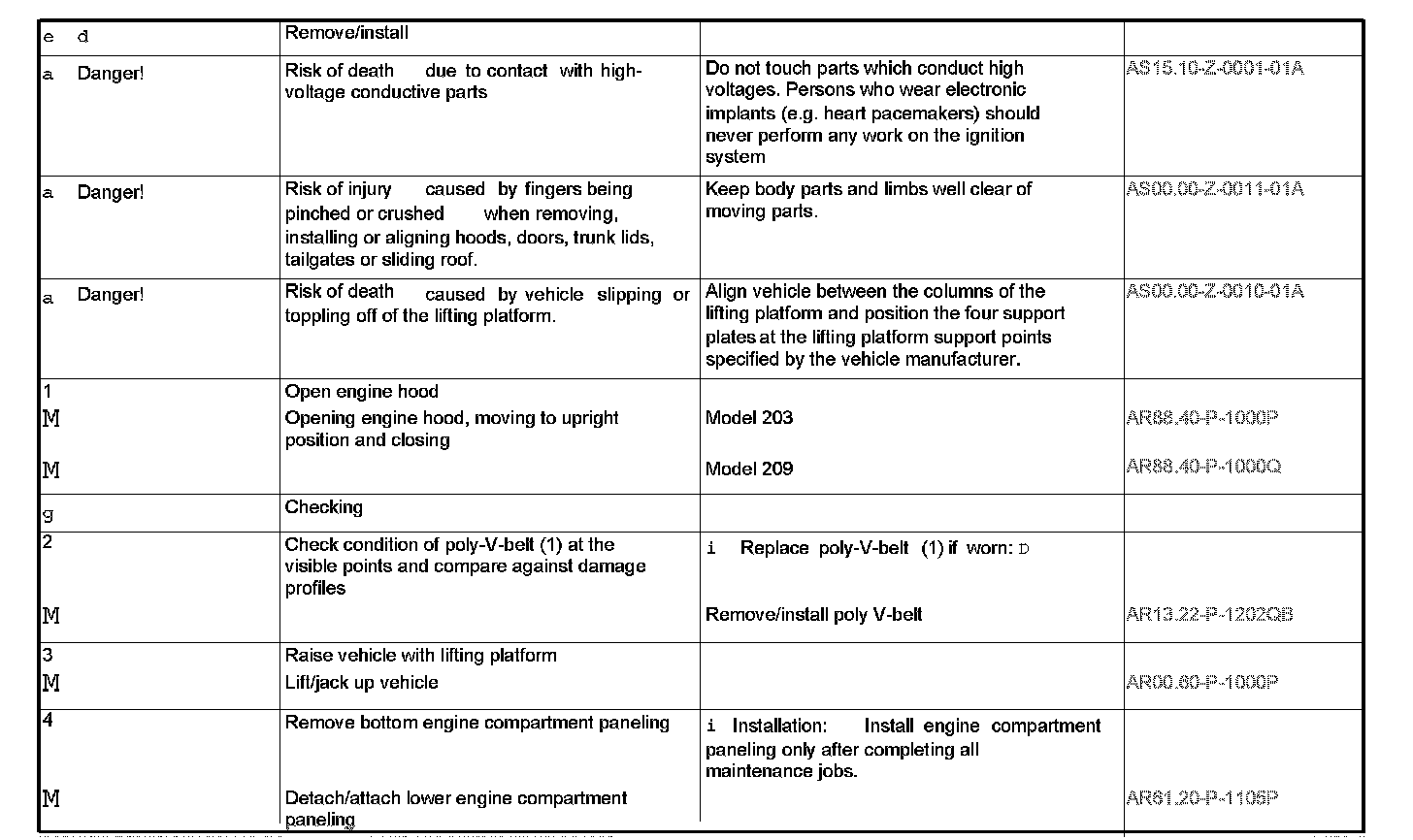

Steps 1 - 4:

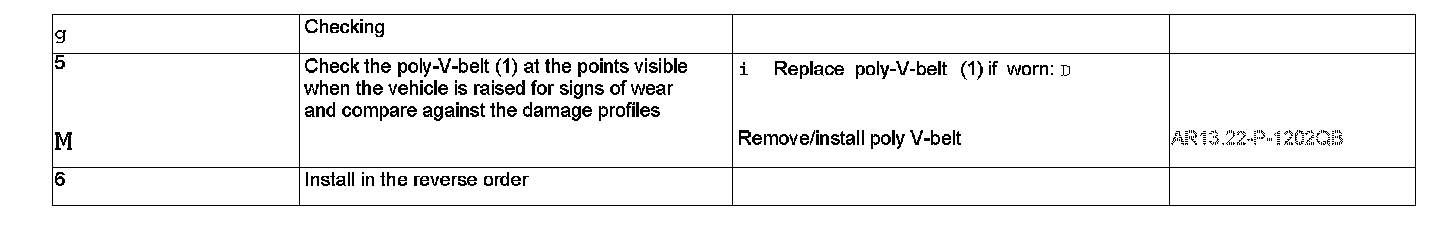

Steps 5 - 6:
