ME-SFI Fuel Injection/Ignition System PE07.61-U-2101BF (Sheet 2)

ME-SFI Fuel Injection And Ignition System Control Module PE07.61-U-2101BF, Sheet 2
- ME 9.7

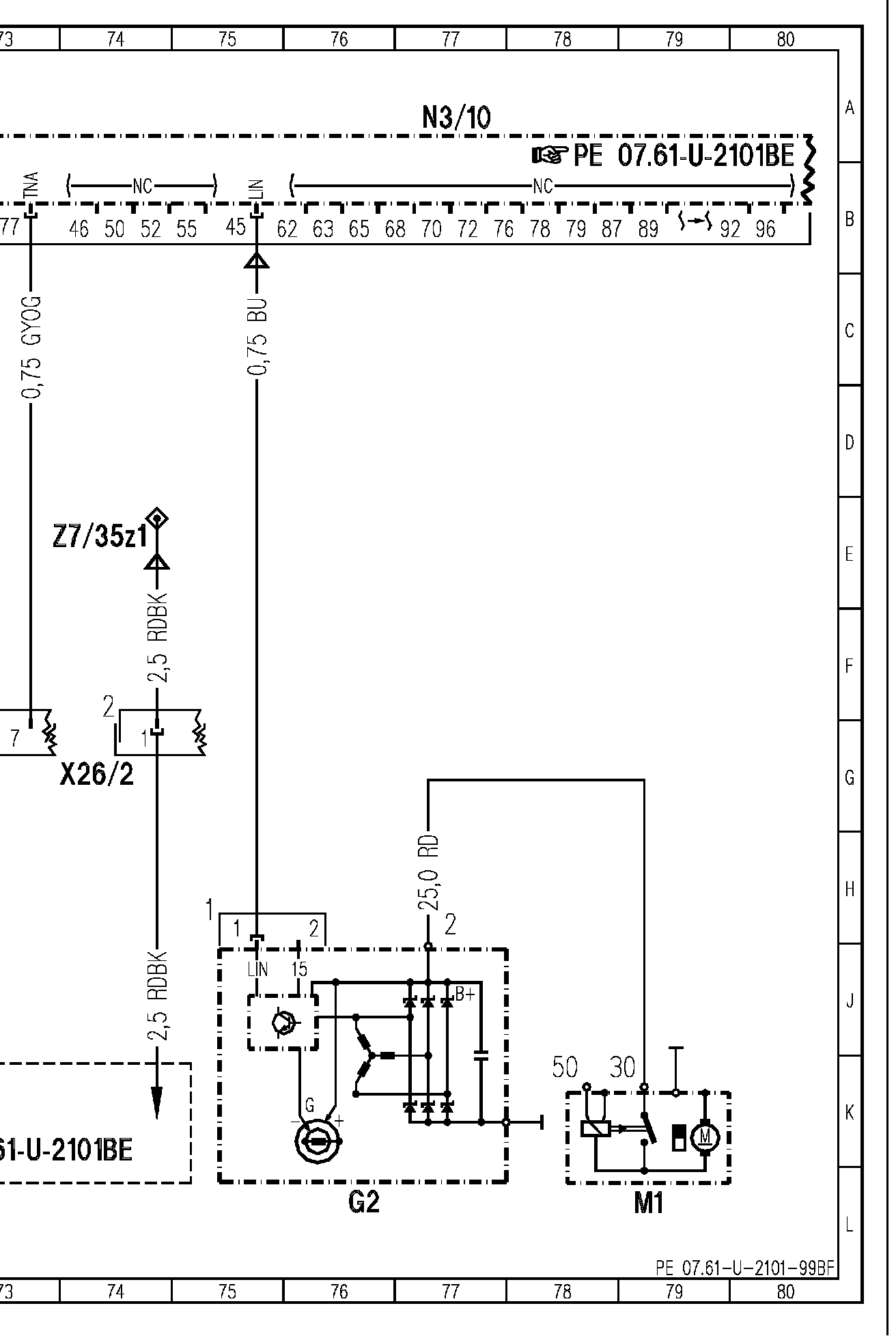

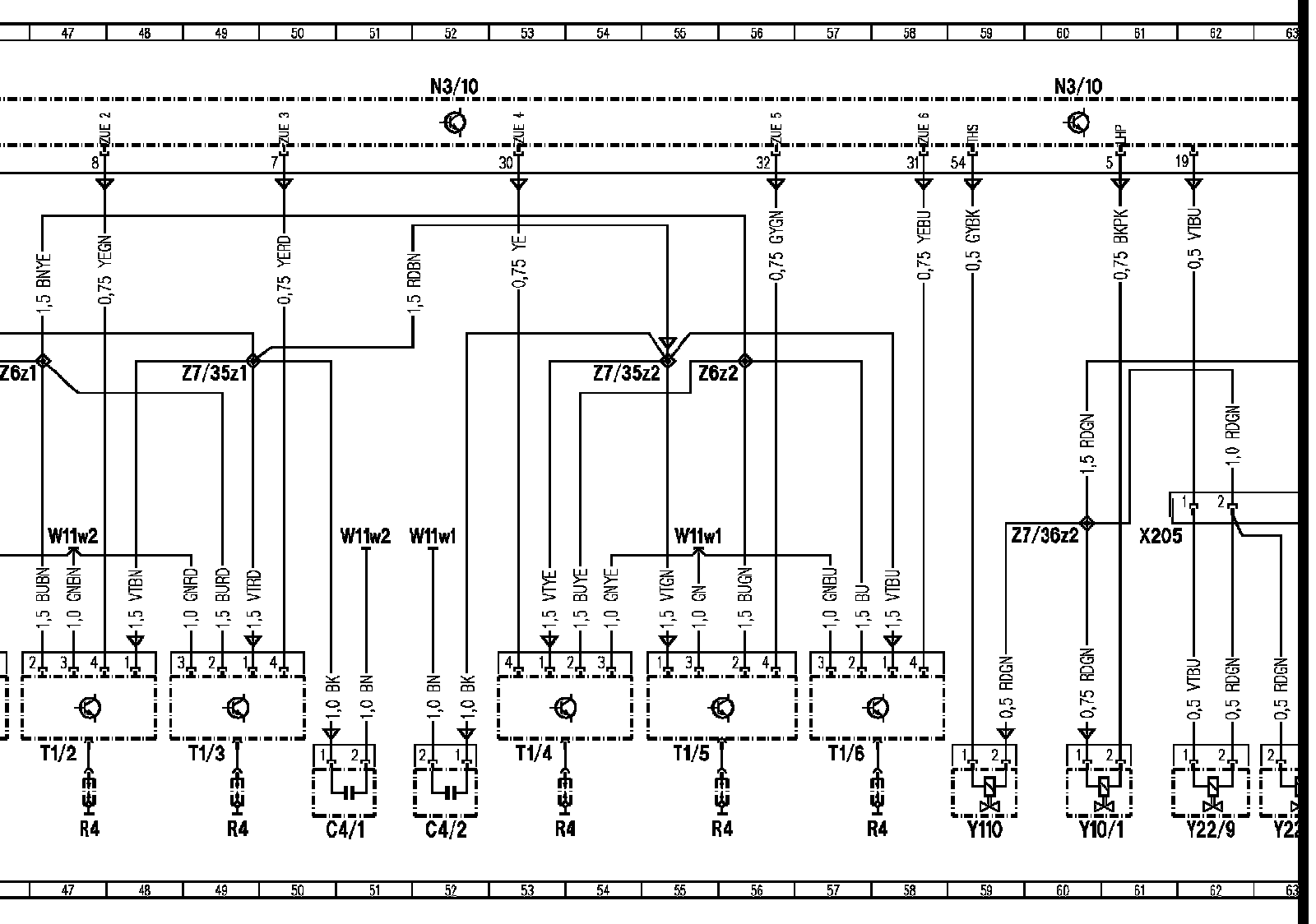

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

Wiring Diagram, Part 6:

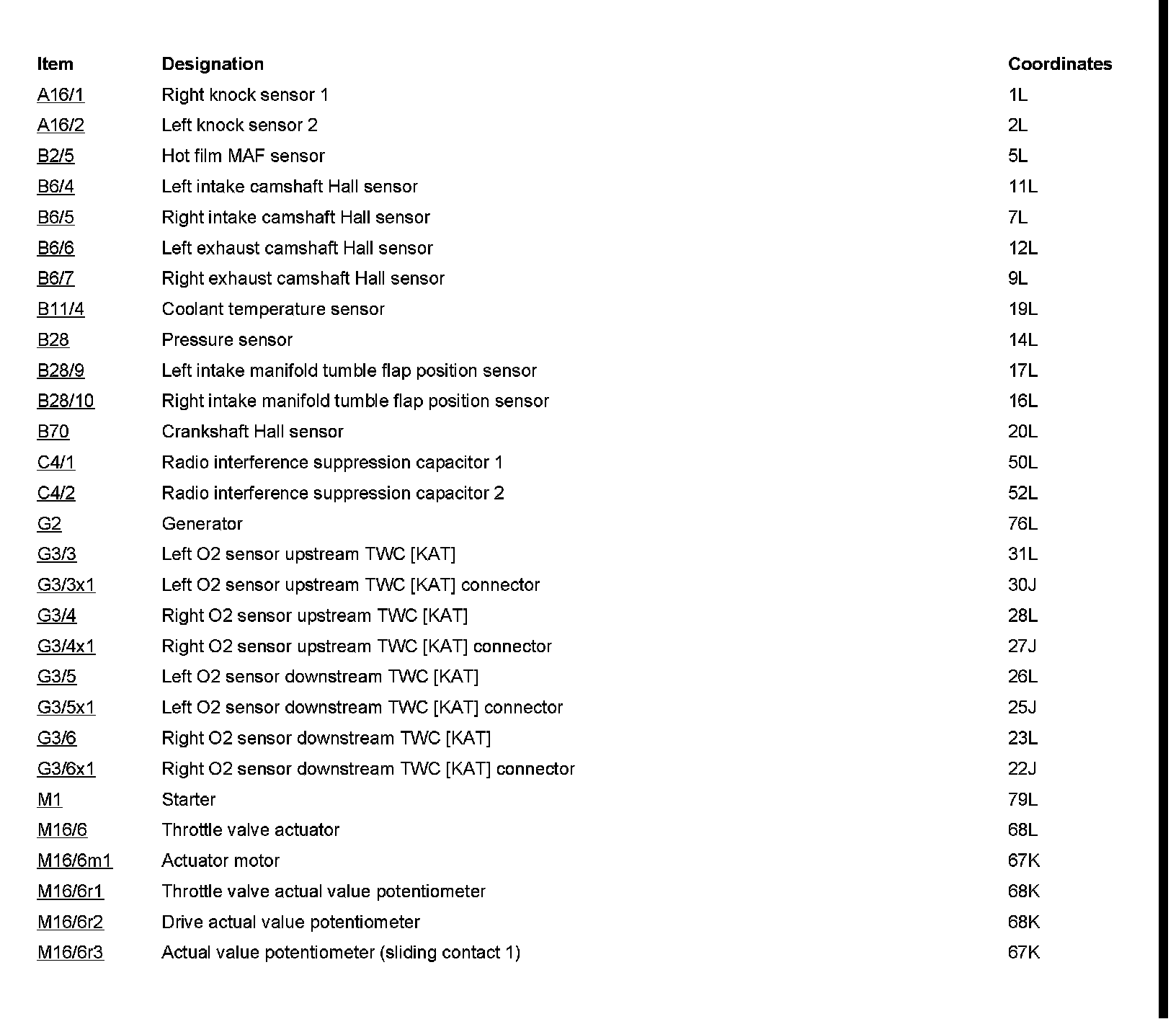

Component Description/Coordinates, A16/1 - M16/6r3:

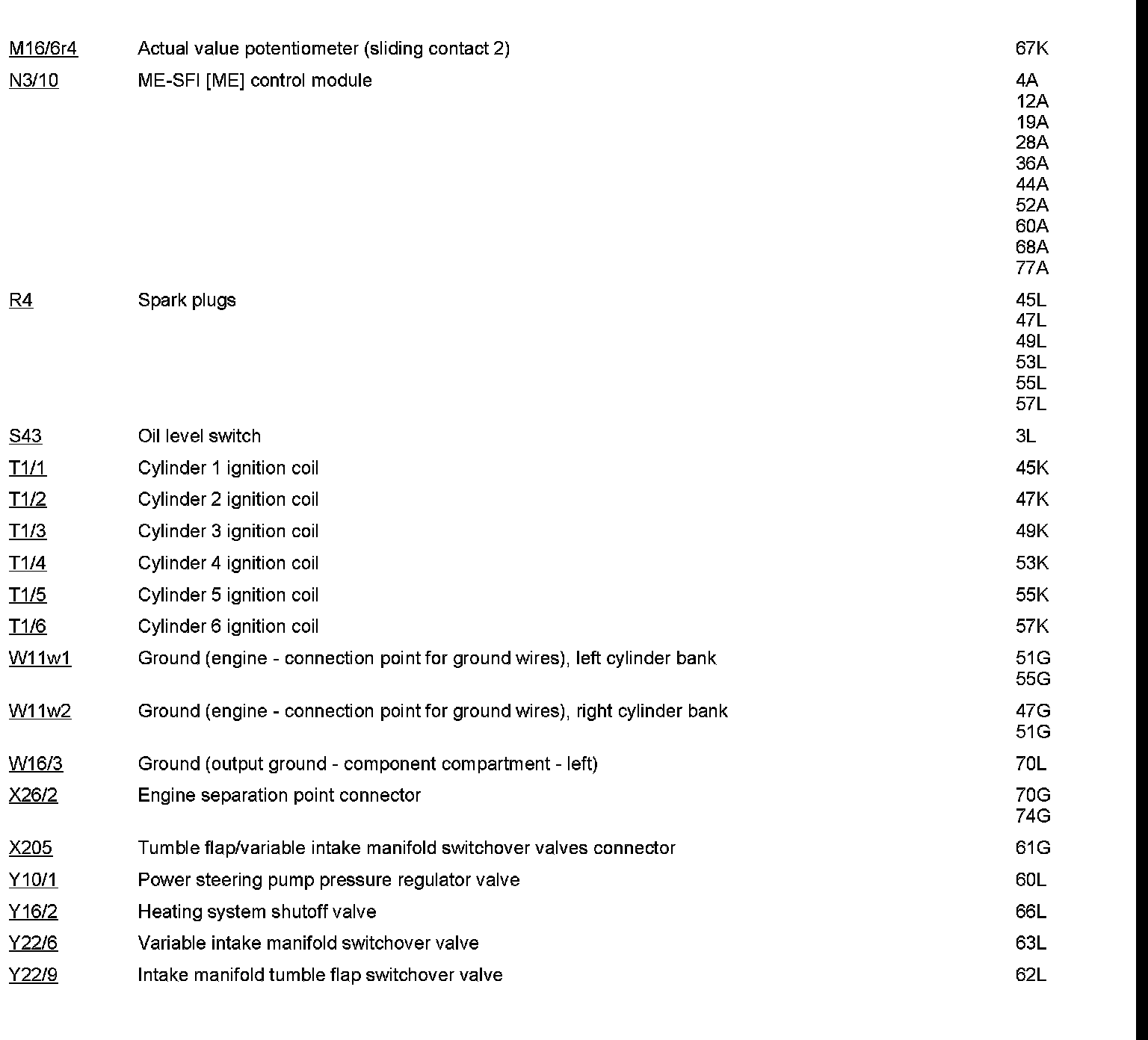

Component Description/Coordinates, M16/6r4 - Y22/9:

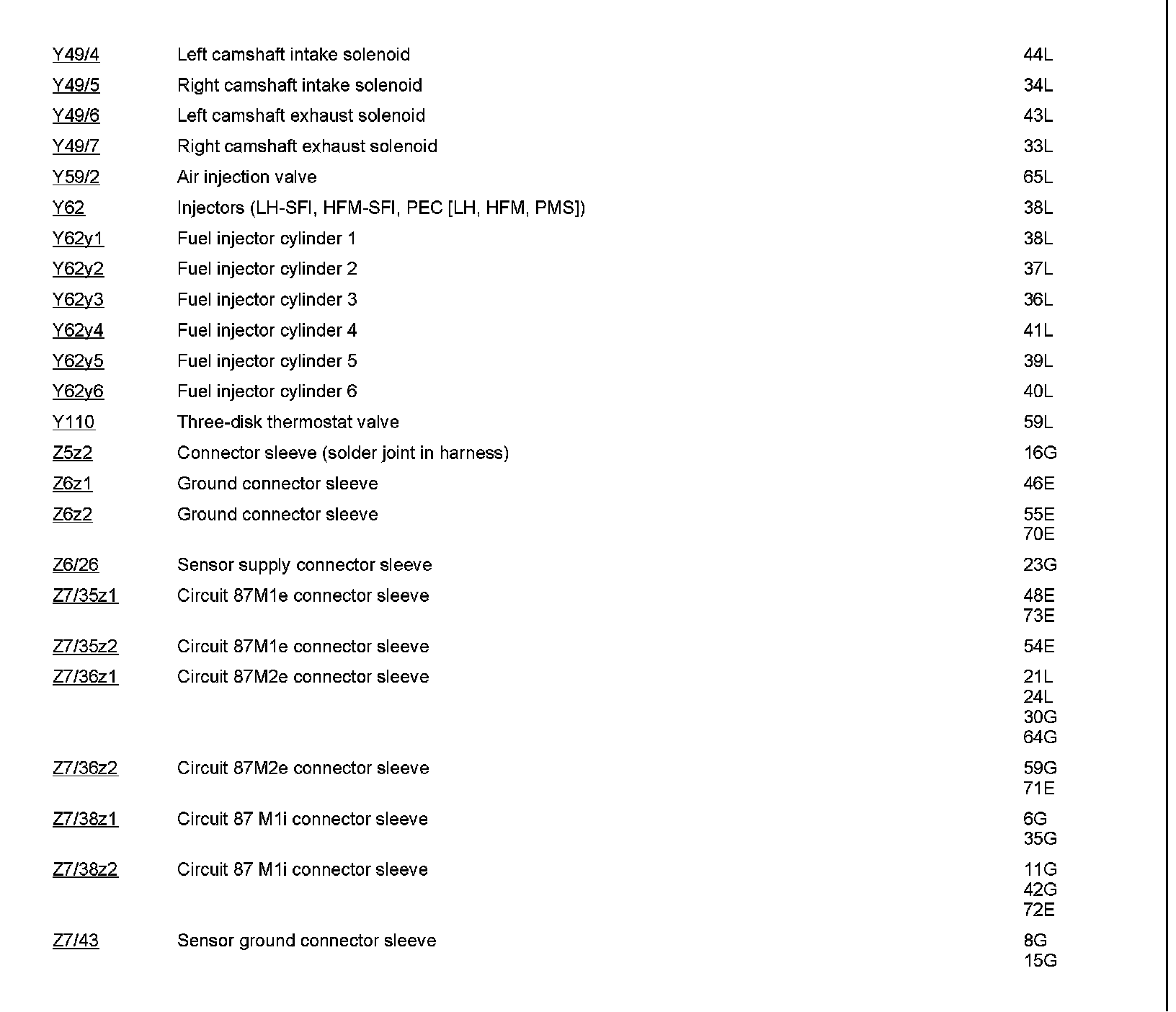

Component Description/Coordinates, Y49/4 - Z7/43:

Component Description/Coordinates, Z7/44:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
