Flex Plate: Service and Repair
AR03.30-P-8001QB Remove, install
flywheel
/ drive plate

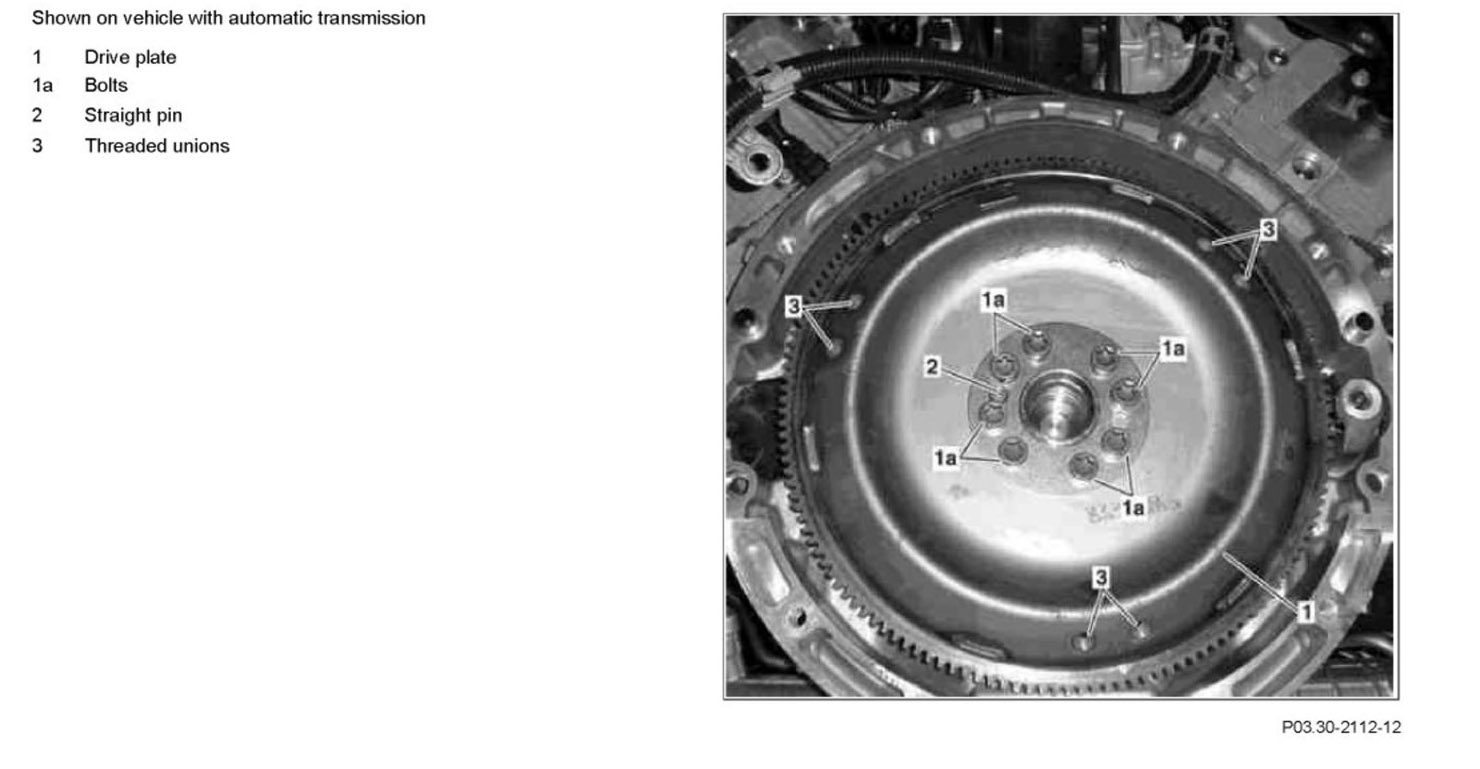

Component Identification:

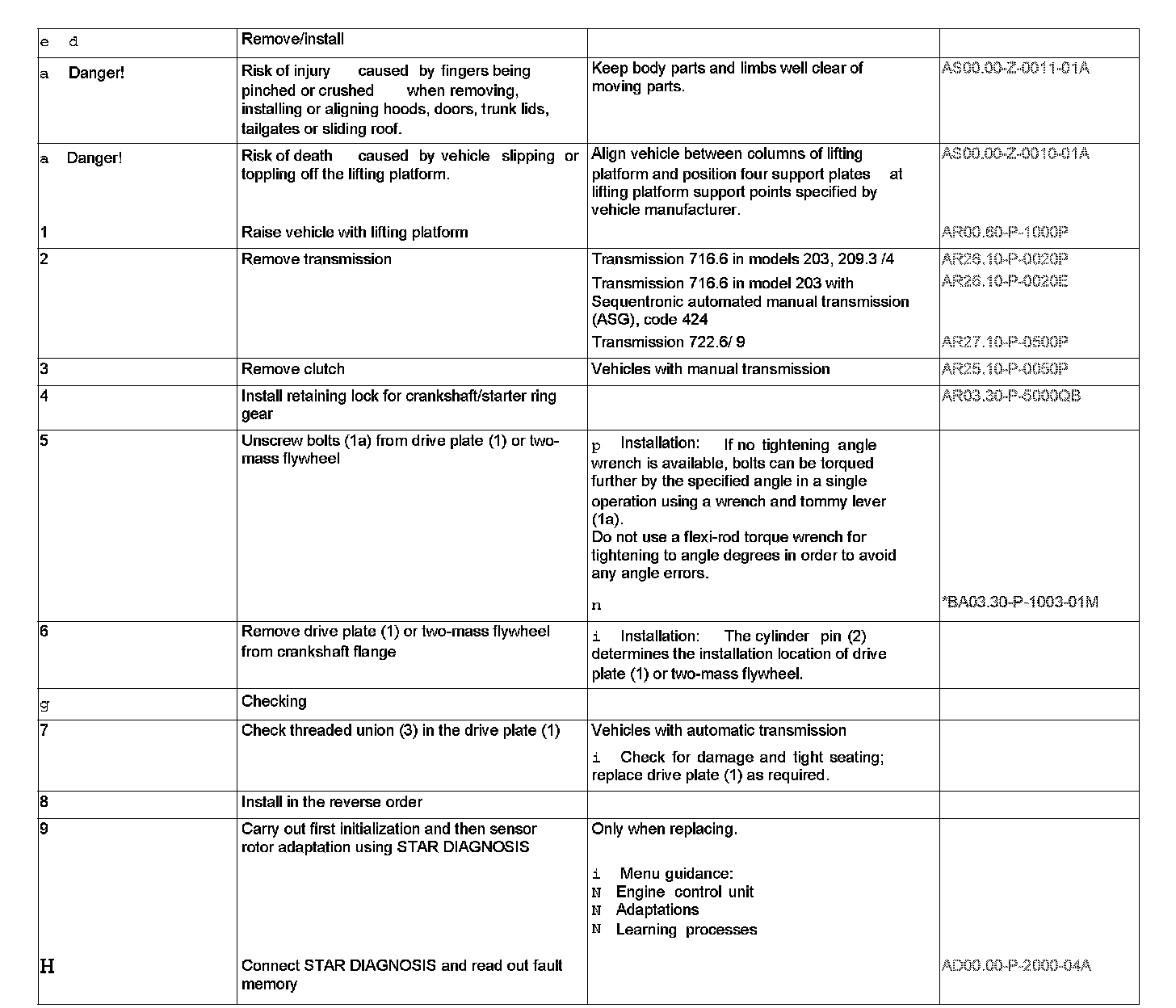

Steps 1 - 9:
Flywheel, Driven Plate, Vibration Damper, Starter Ring Gear:
