Flywheel: Service and Repair
AR03.30-P-8001TS Remove, install
flywheel
/ drive plate

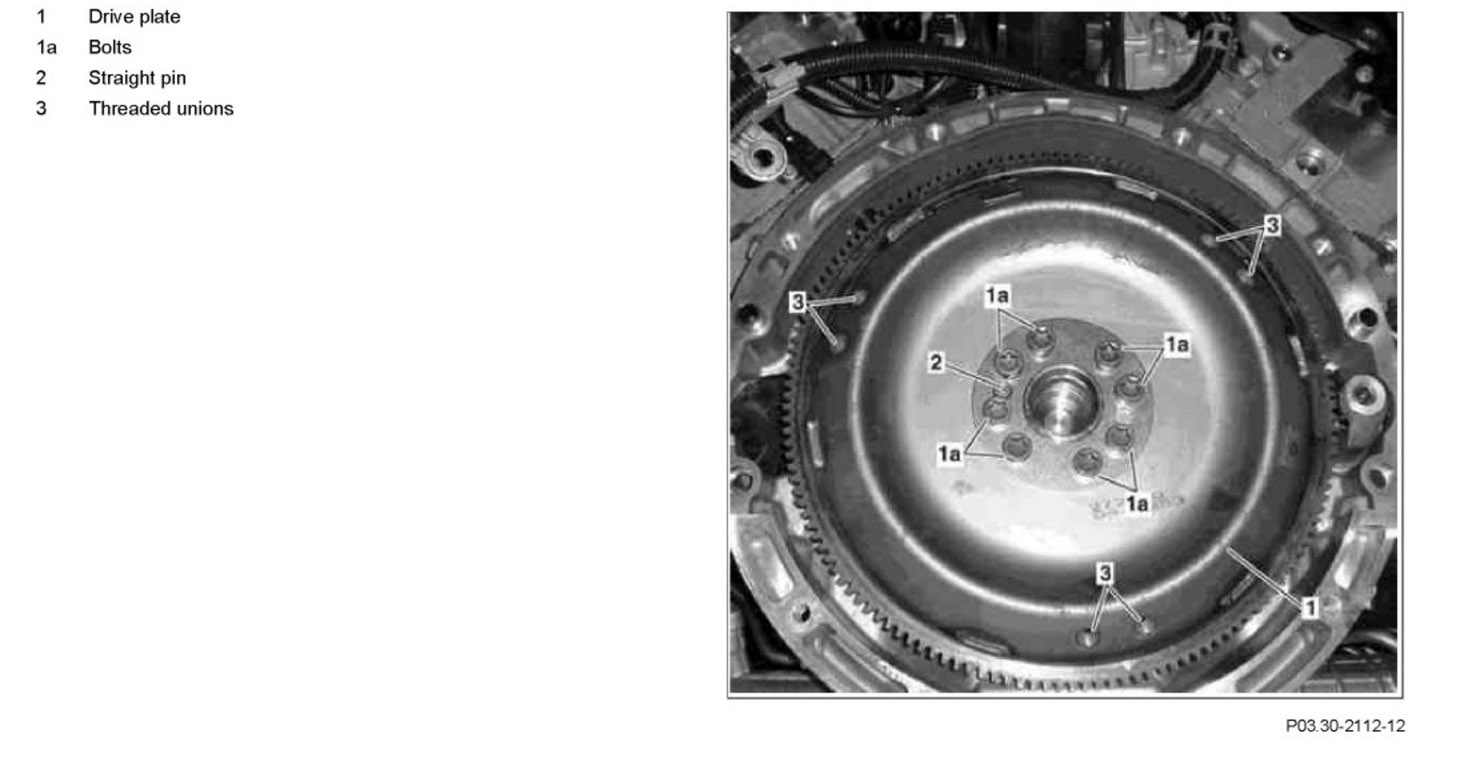

Component Identification:

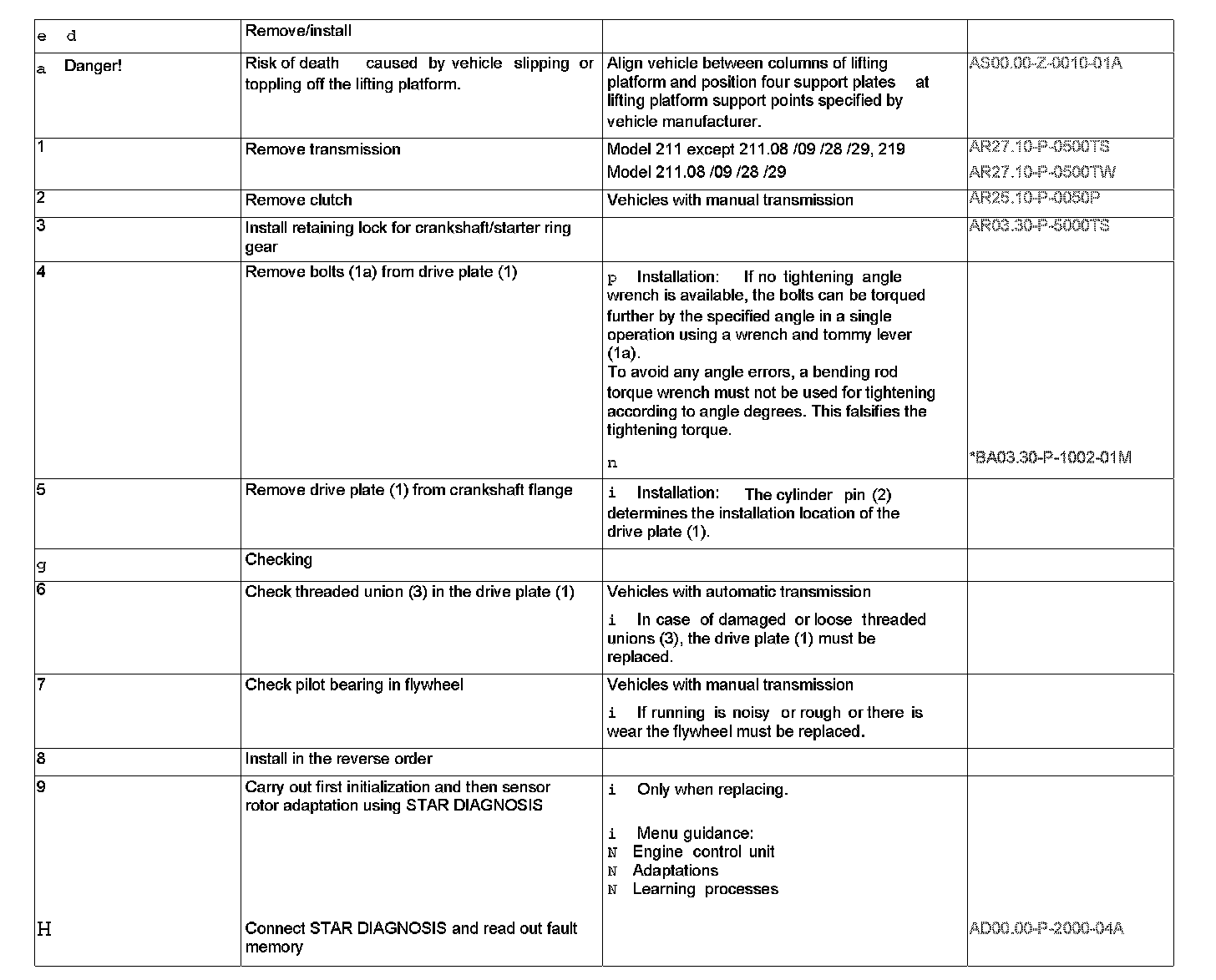

Steps 1 - 9:

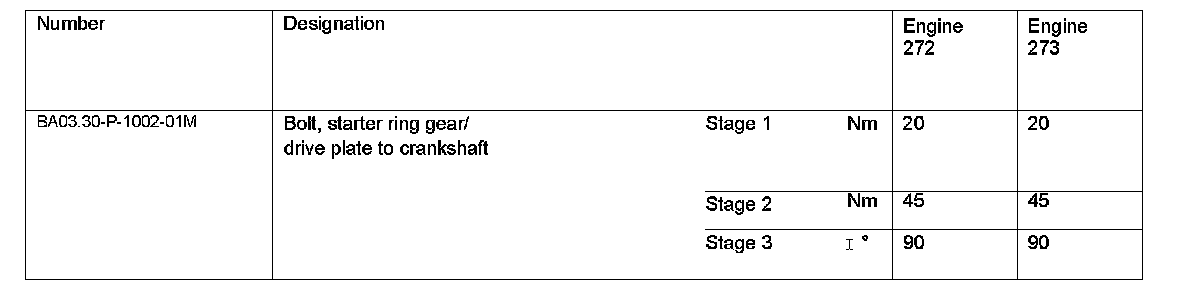

Flywheel, driven plate, vibration damper, starter ring gear:
