Wiring Diagram ME-SFI Fuel Injection and Ignition System PE07.61-P-2101DL

Wiring Diagram For ME-SFI [ME] Gasoline Injection And Ignition System Control Unit pe07.61-P-2101-99dl

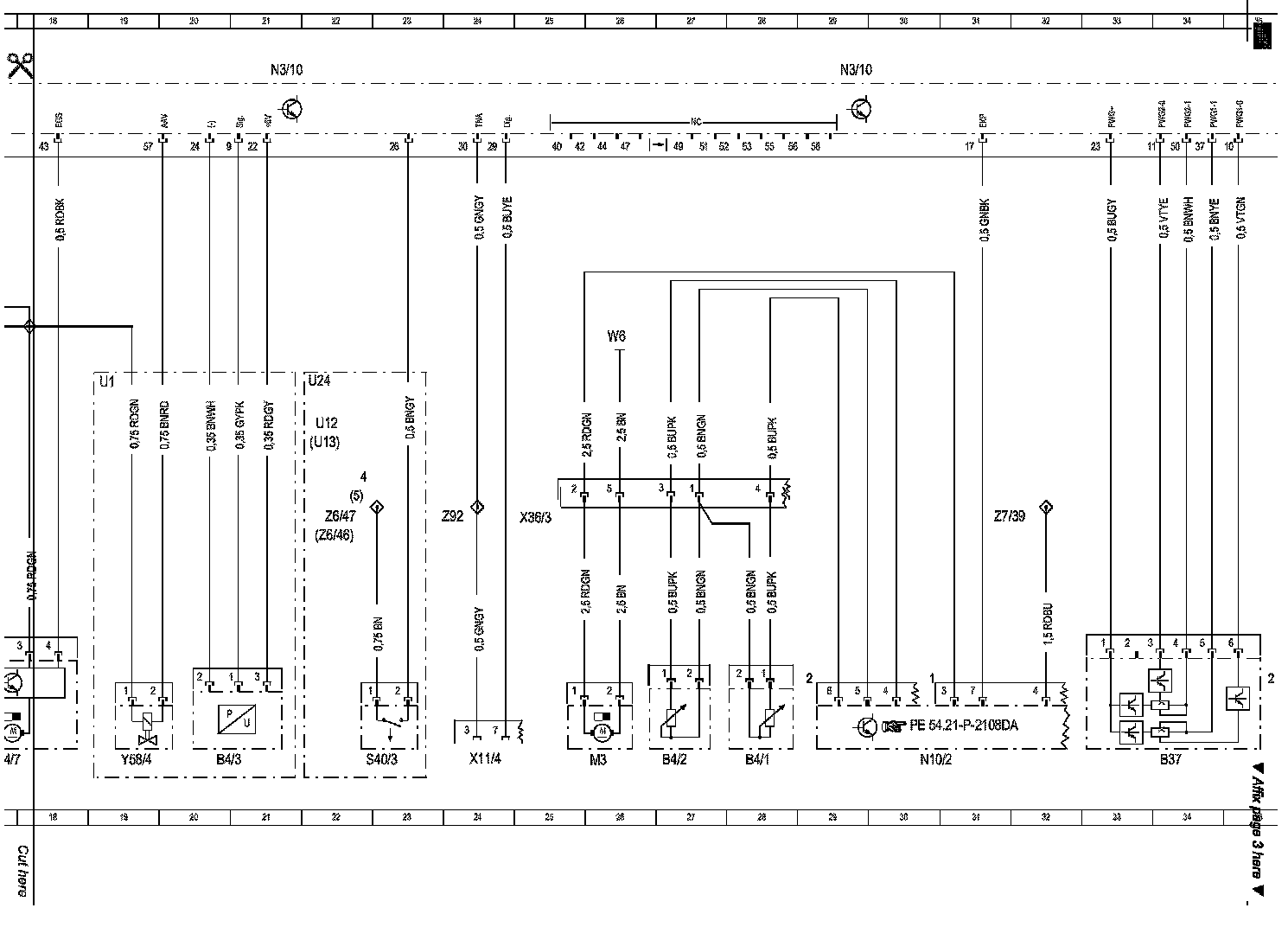

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Component Description/Coordinates, A0 To Z92:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
