AR01.00-P-1300TMG Inspect Cylinders For Leaks

Component Identification:

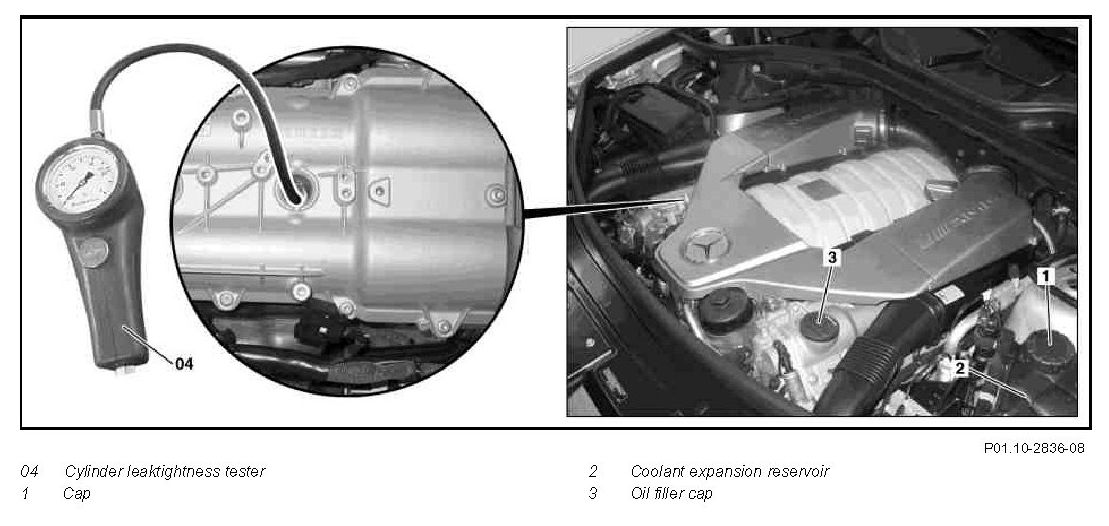

Remove/install Steps 1-10:

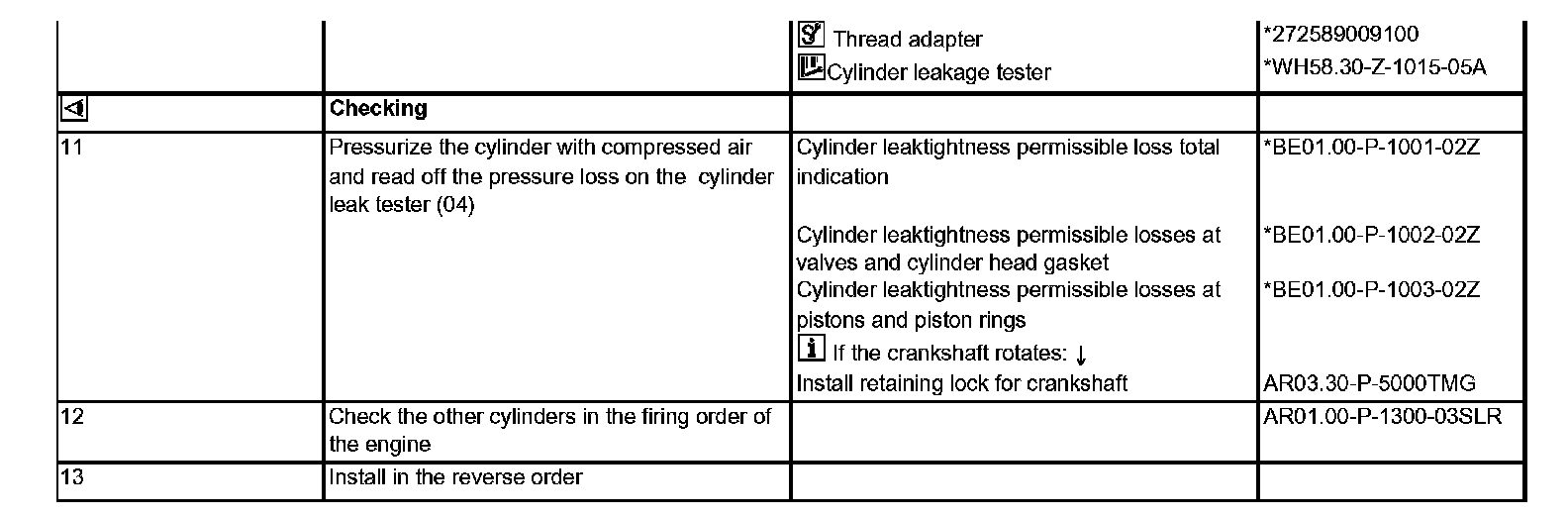

Remove/install Steps 10 (Continued)-13:

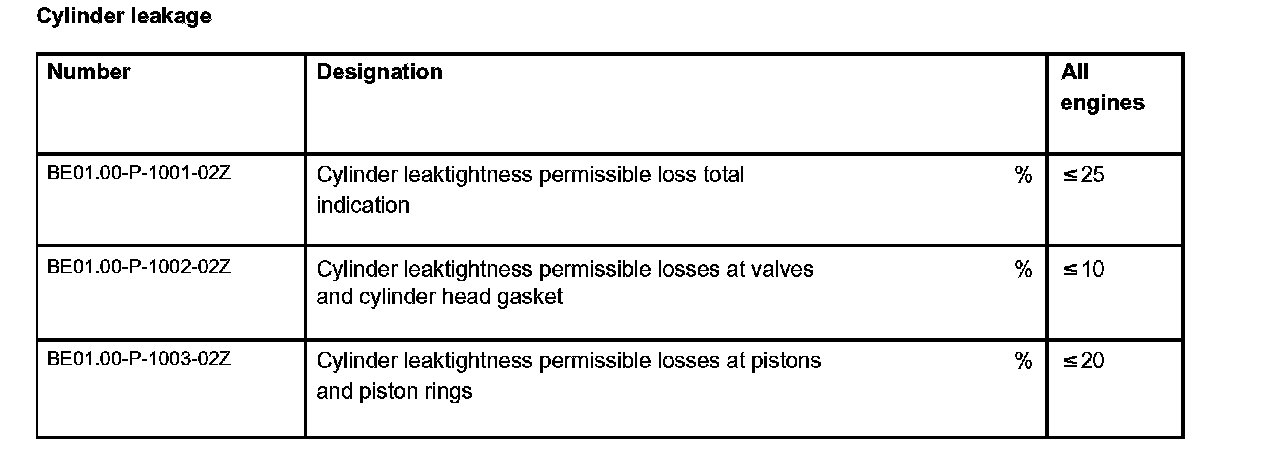

Cylinder leakage:

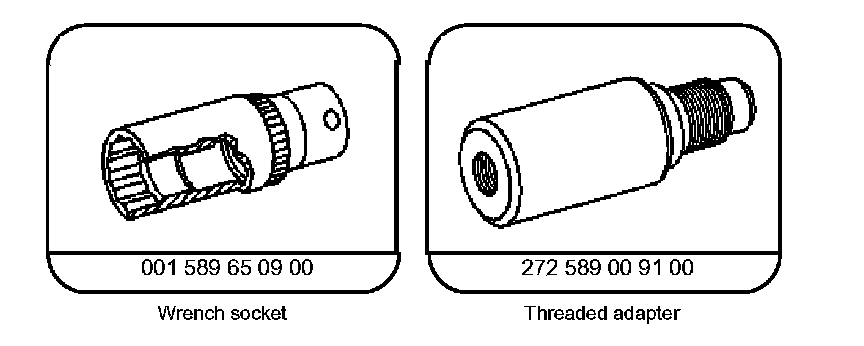

Special Tools:

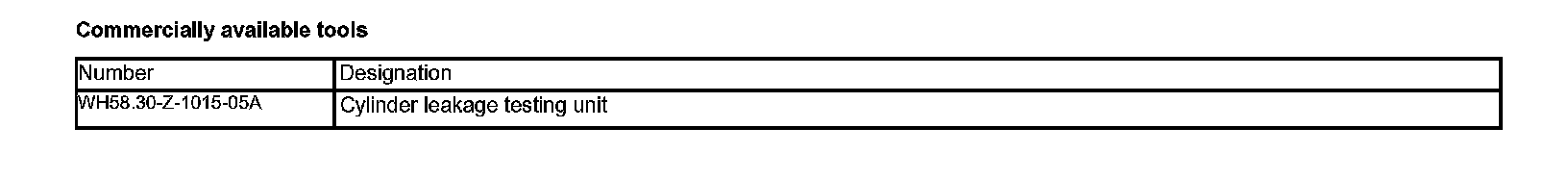

Commercially available tools:
