Drive Belt: Service and Repair
AR13.22-P-1202TMG Remove/Install Poly V-Belt
Component Identification:

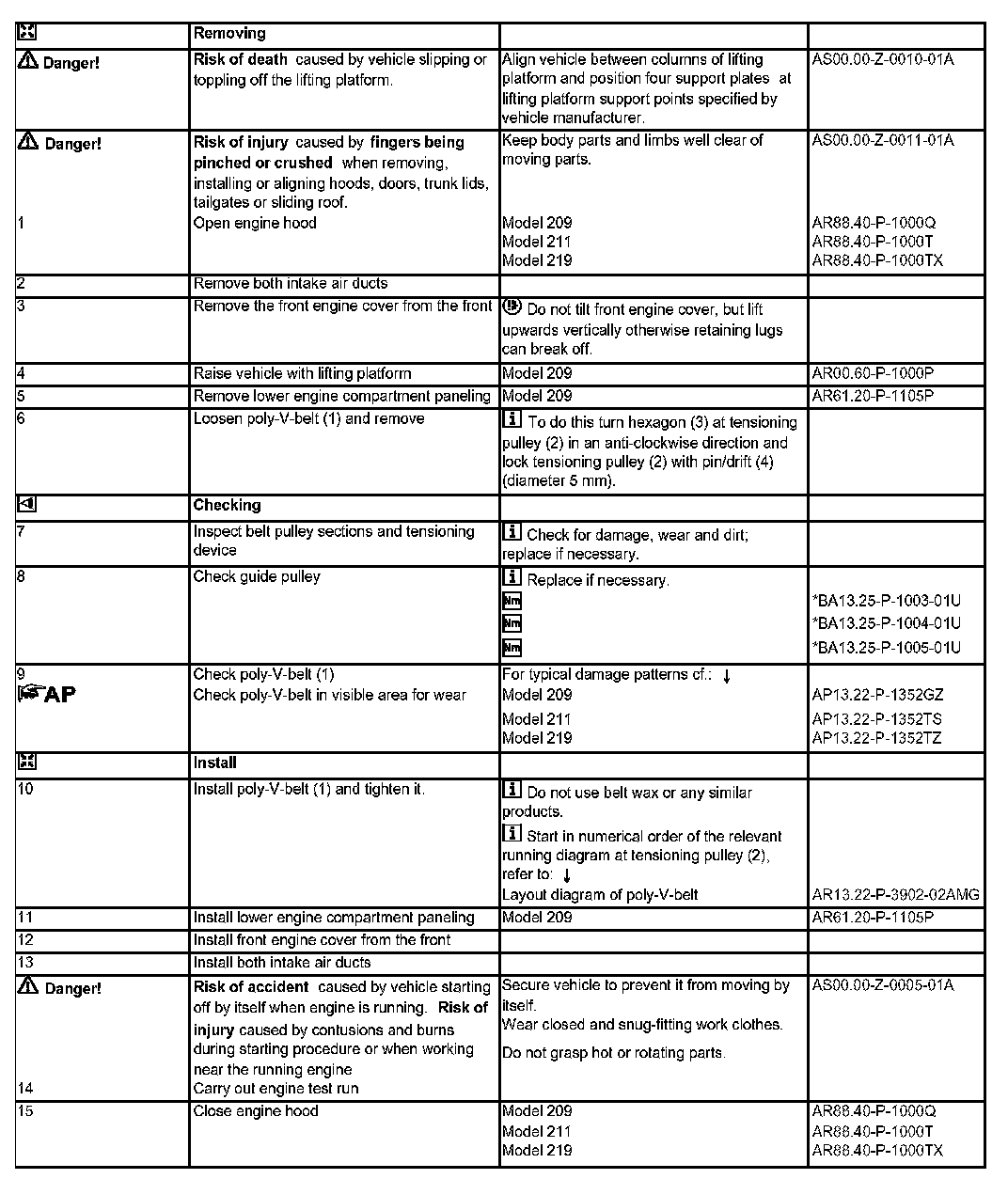

Steps 1 - 15:

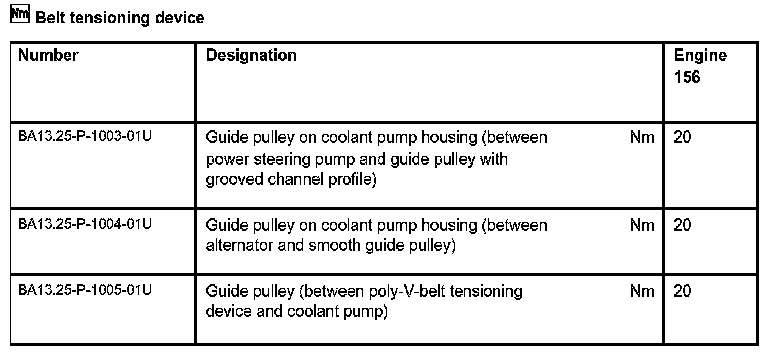

Belt Tensioning Device:
