AR03.30-P-8001TMG Remove, Install Flywheel/Drive Plate



AR03.30-P-8001TMG Remove, install flywheel/drive plate

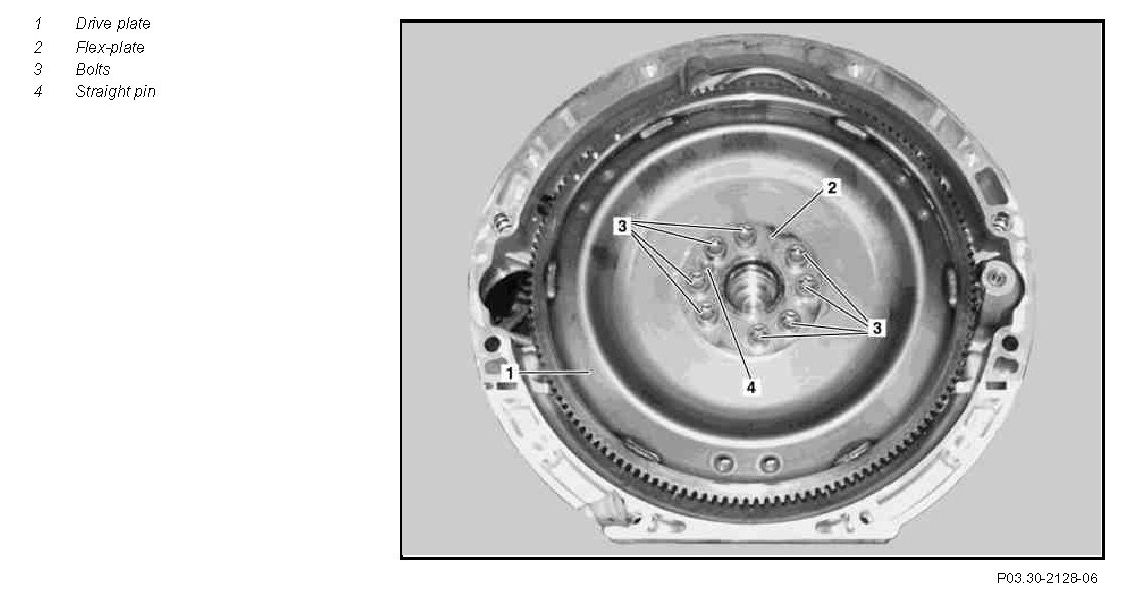

Component Identification:

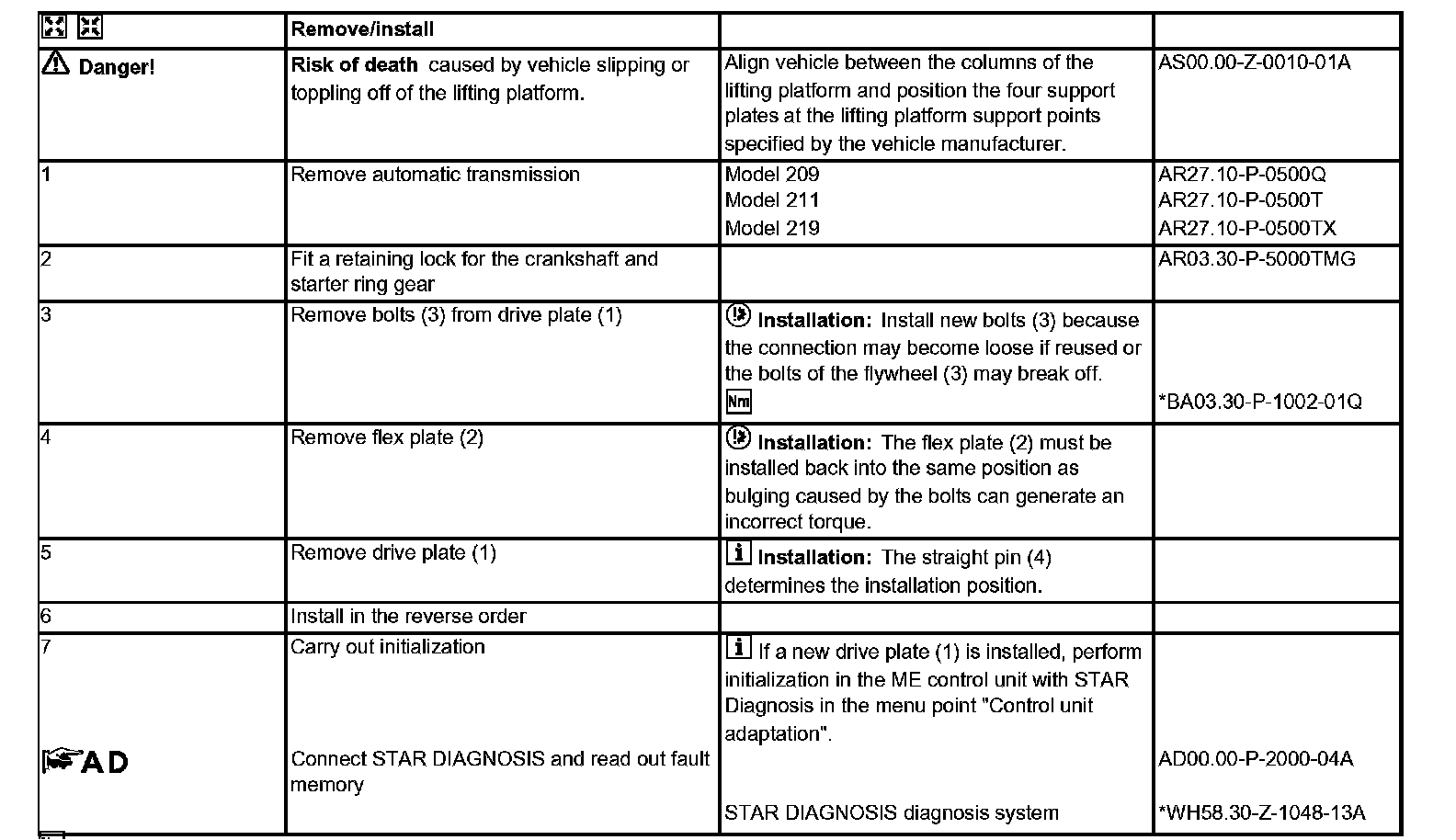

Remove/install Steps 1-7:

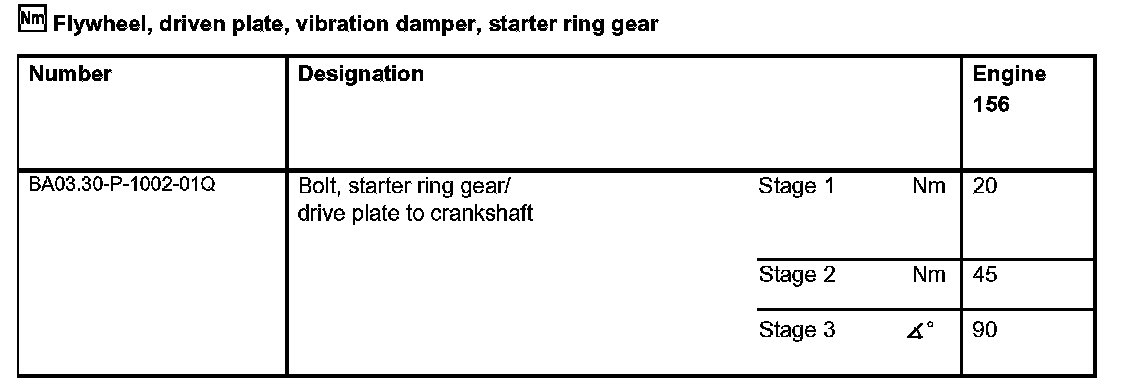

Flywheel, driven plate, vibration damper, starter ring gear:

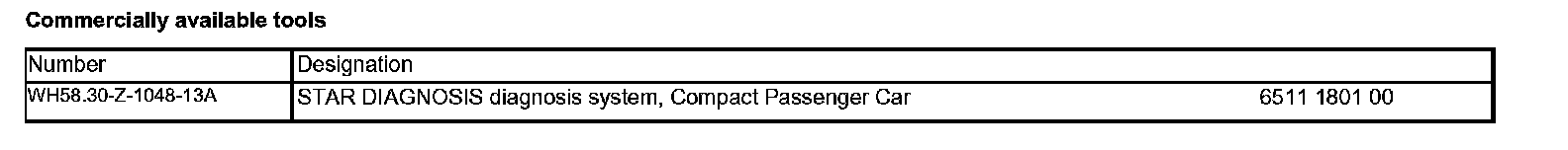

Commercially available tools:
