PE82.20-P-2200SAA Rear Reading Lamps Wiring Diagram

Rear Reading Lamps Wiring Diagram PE82.20-P-2200SAA
- with CODE (Z19) S600 Pullman Guard state sedan cardanic reading lamps

Wiring Diagram (Part 1):

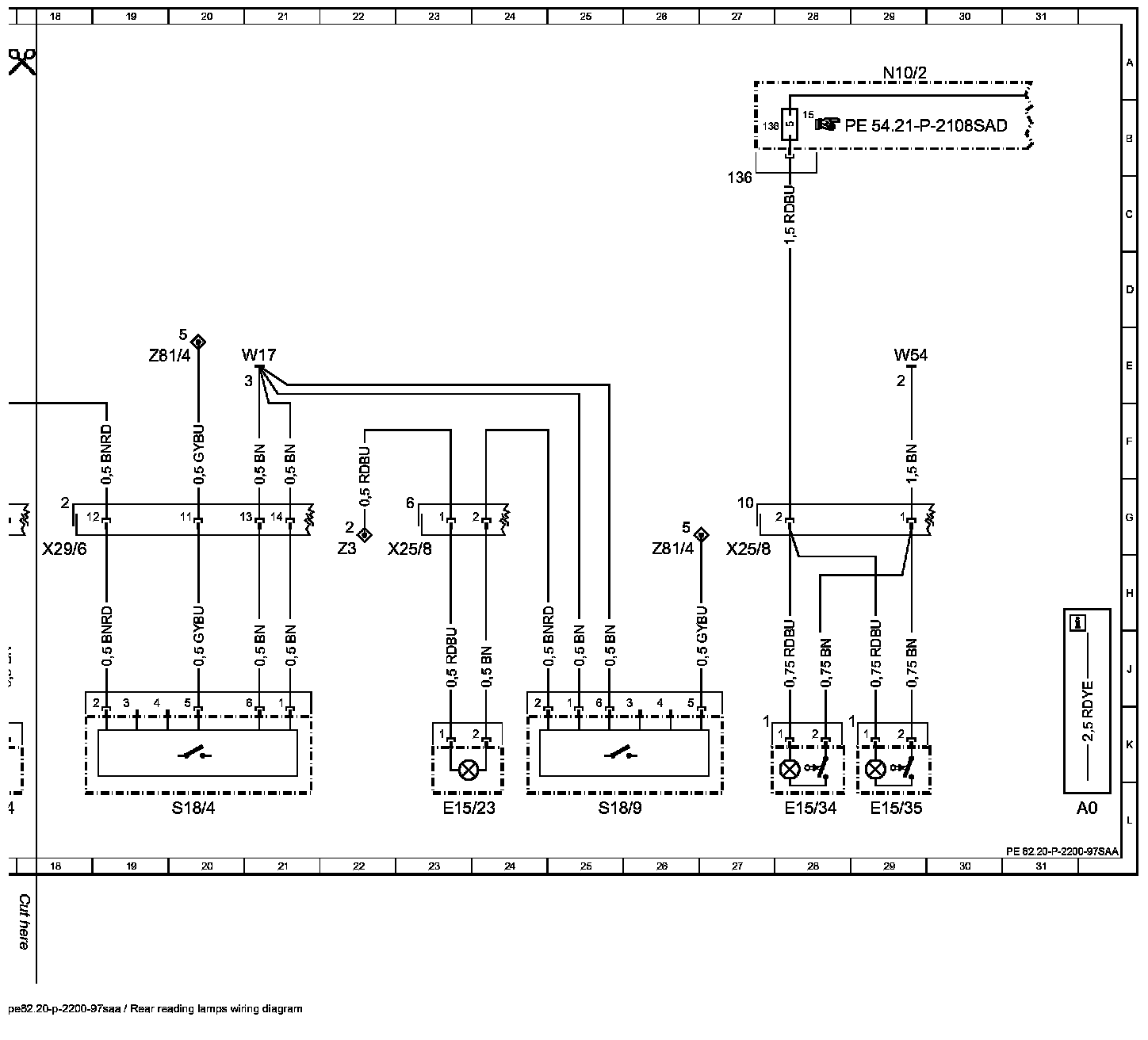

Wiring Diagram (Part 2):

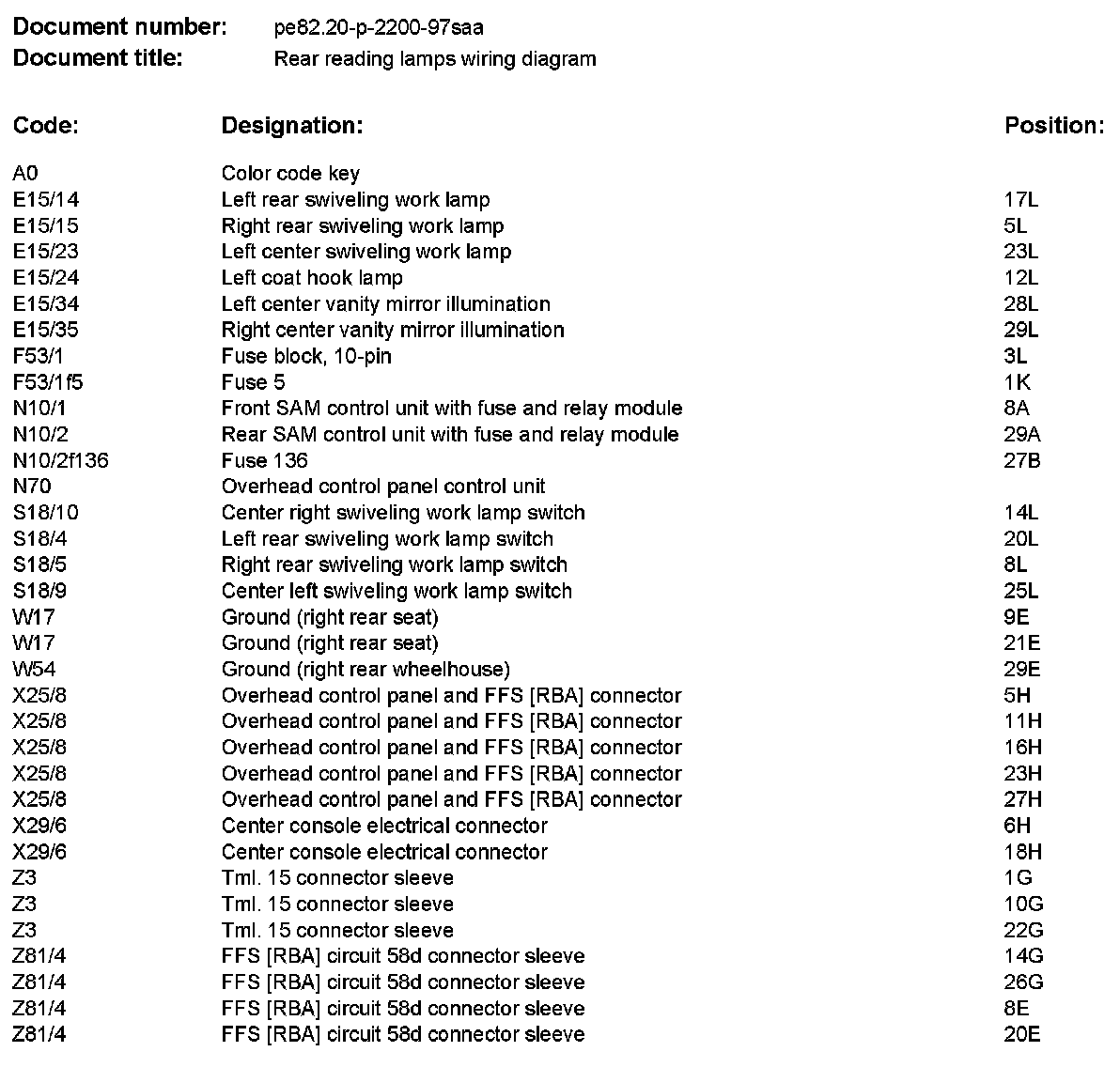

Component Description/Coordinates, A0 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
