PE54.15-P-2511SAC Wiring Diagram, Left Dashboard Fuse Box

PE54.15-P-2511SAC Wiring Diagram, Left Dashboard Fuse Box
- with CODE (Z19) Pullman Guard state sedan
- Fuse box F1/7

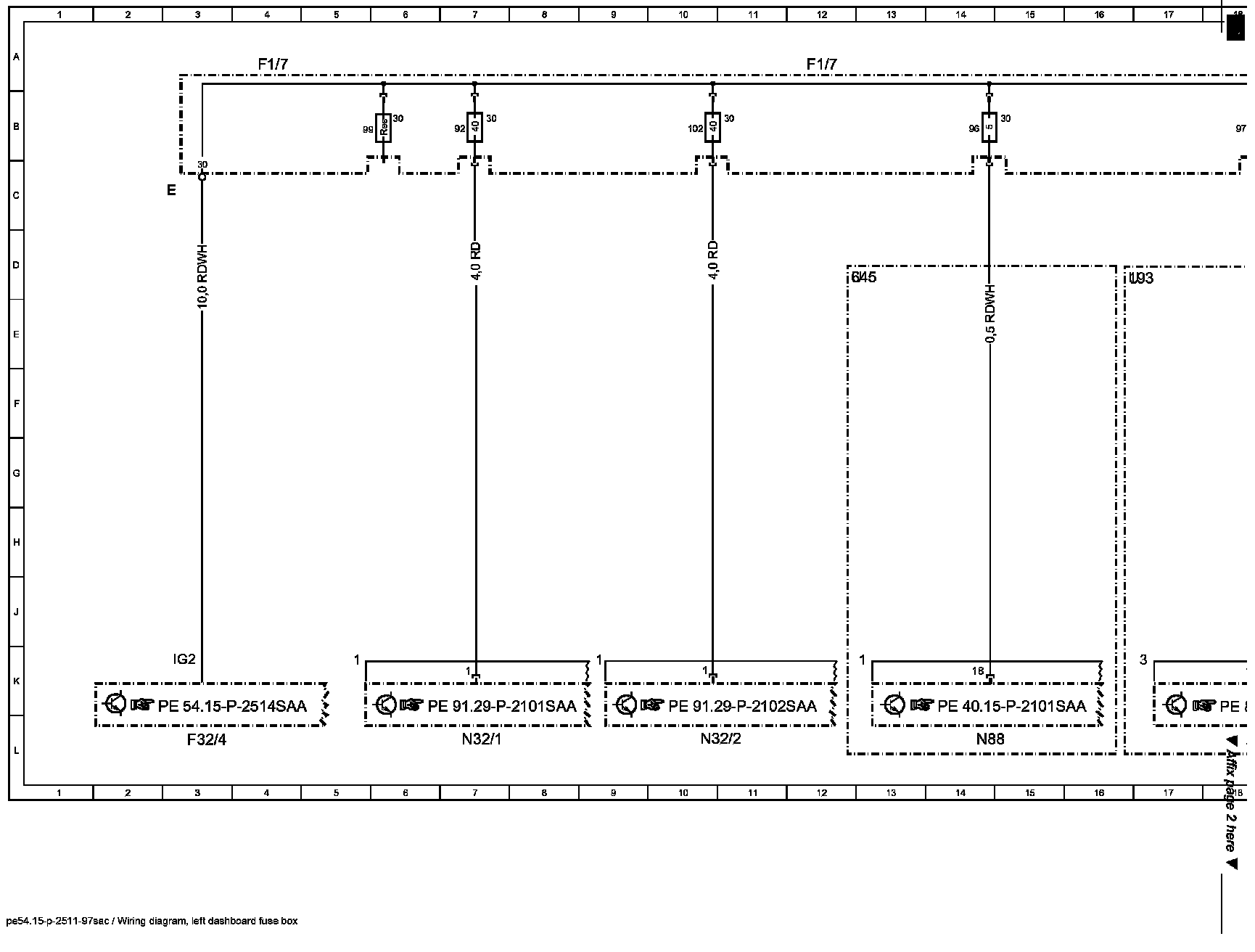

Wiring Diagram (Part 1):

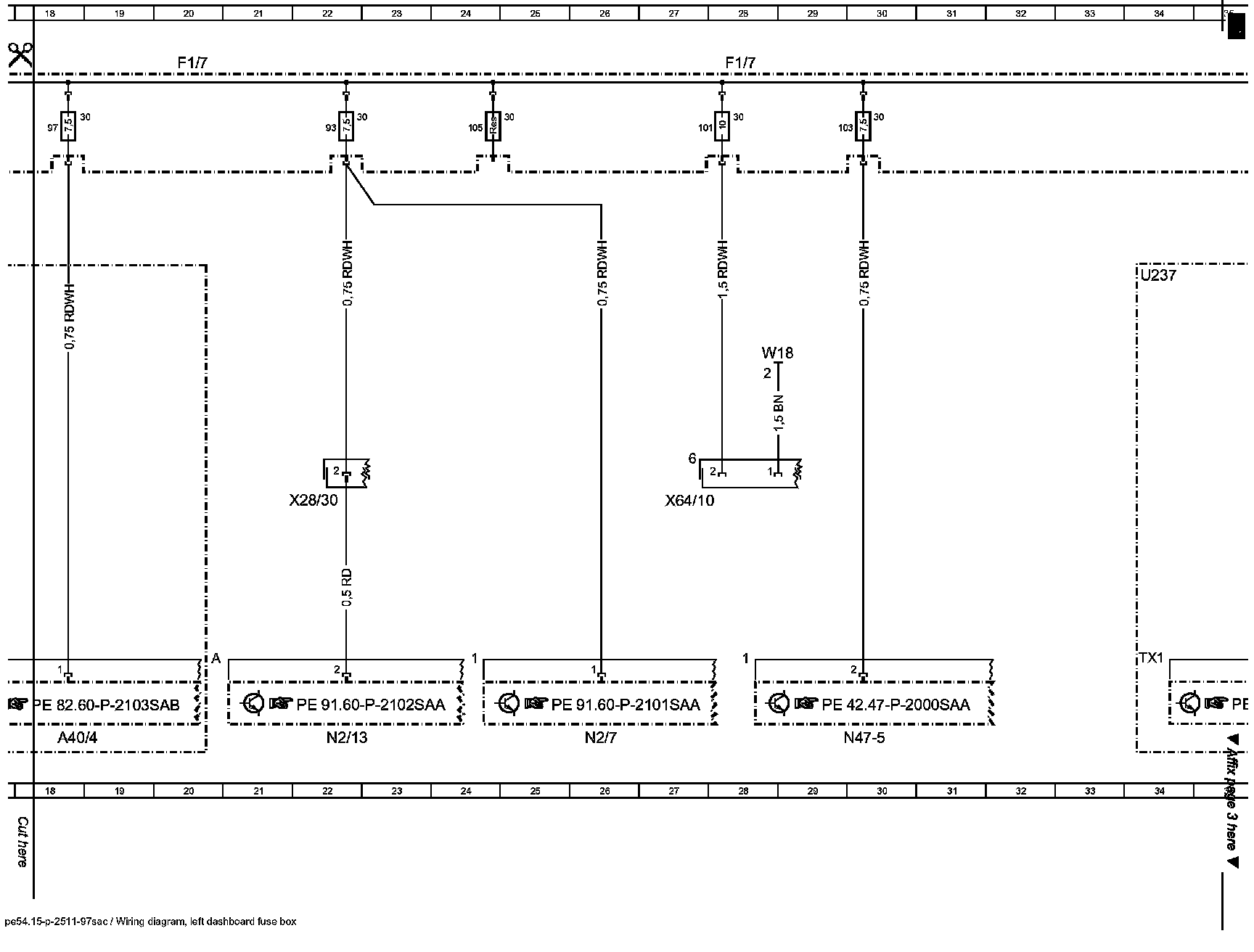

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

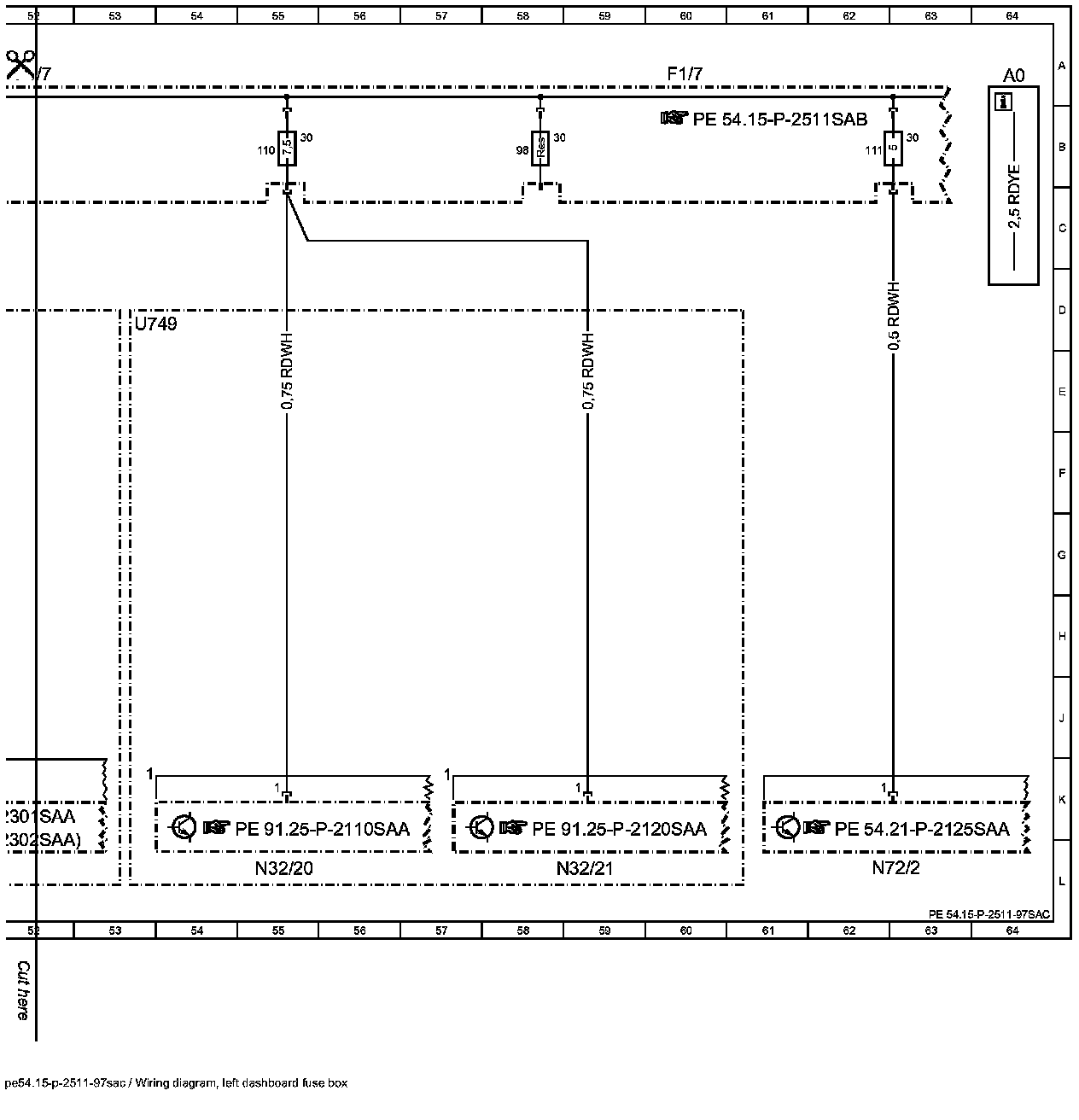

Wiring Diagram (Part 4):

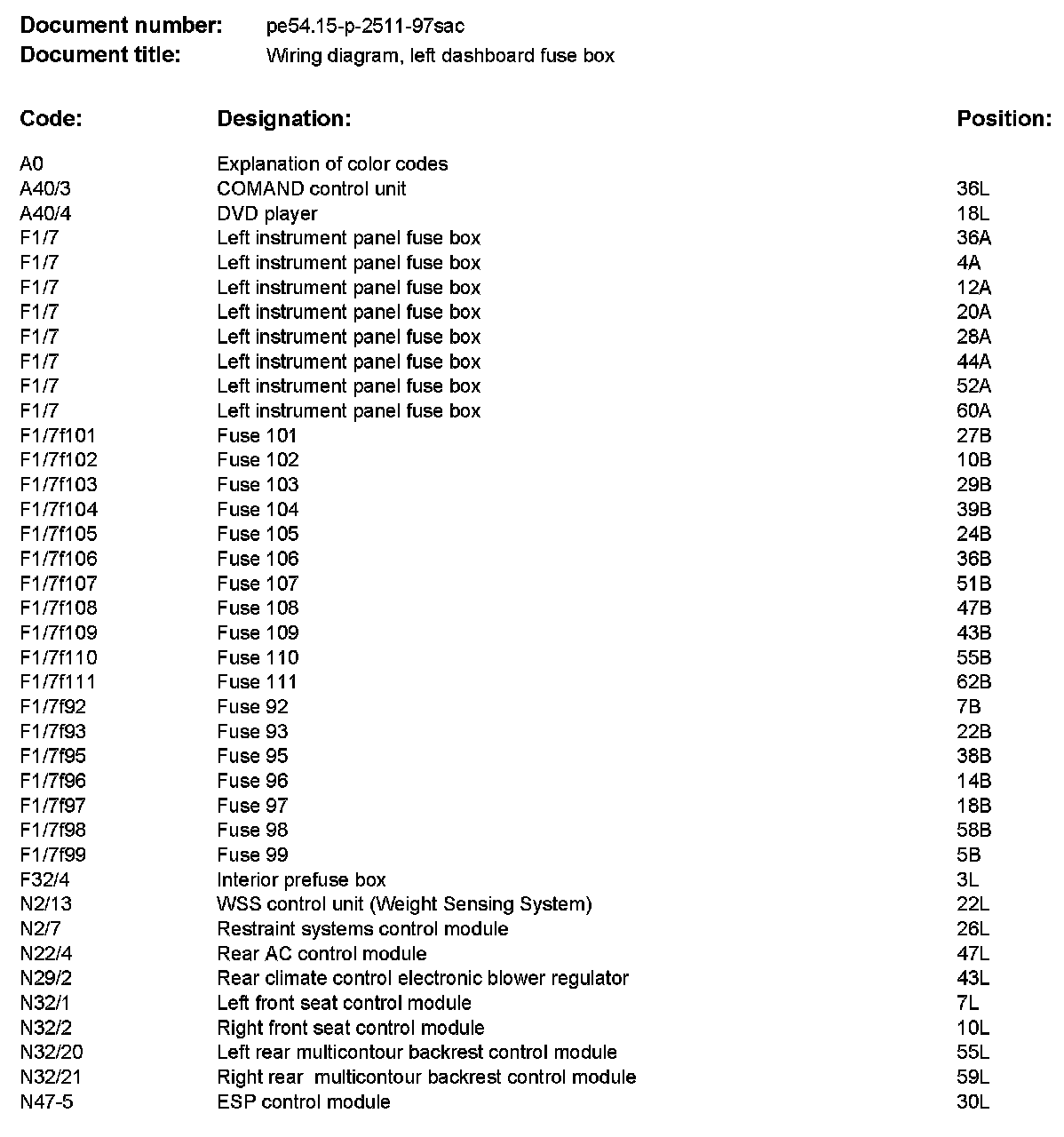

Component Description/Coordinates, A0 To N47-5:

Component Description/Coordinates, N72/2 To X64/10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
