GF91.30-P-0002-02LE Electric Seat Ventilation, Location of Components



GF91.30-P-0002-02LE Electric Seat Ventilation, Location Of Components
- with CODE (401) Front comfort seats, including seat heating and seat ventilation
- with CODE (402) Rear comfort seats, including seat heating and seat ventilation

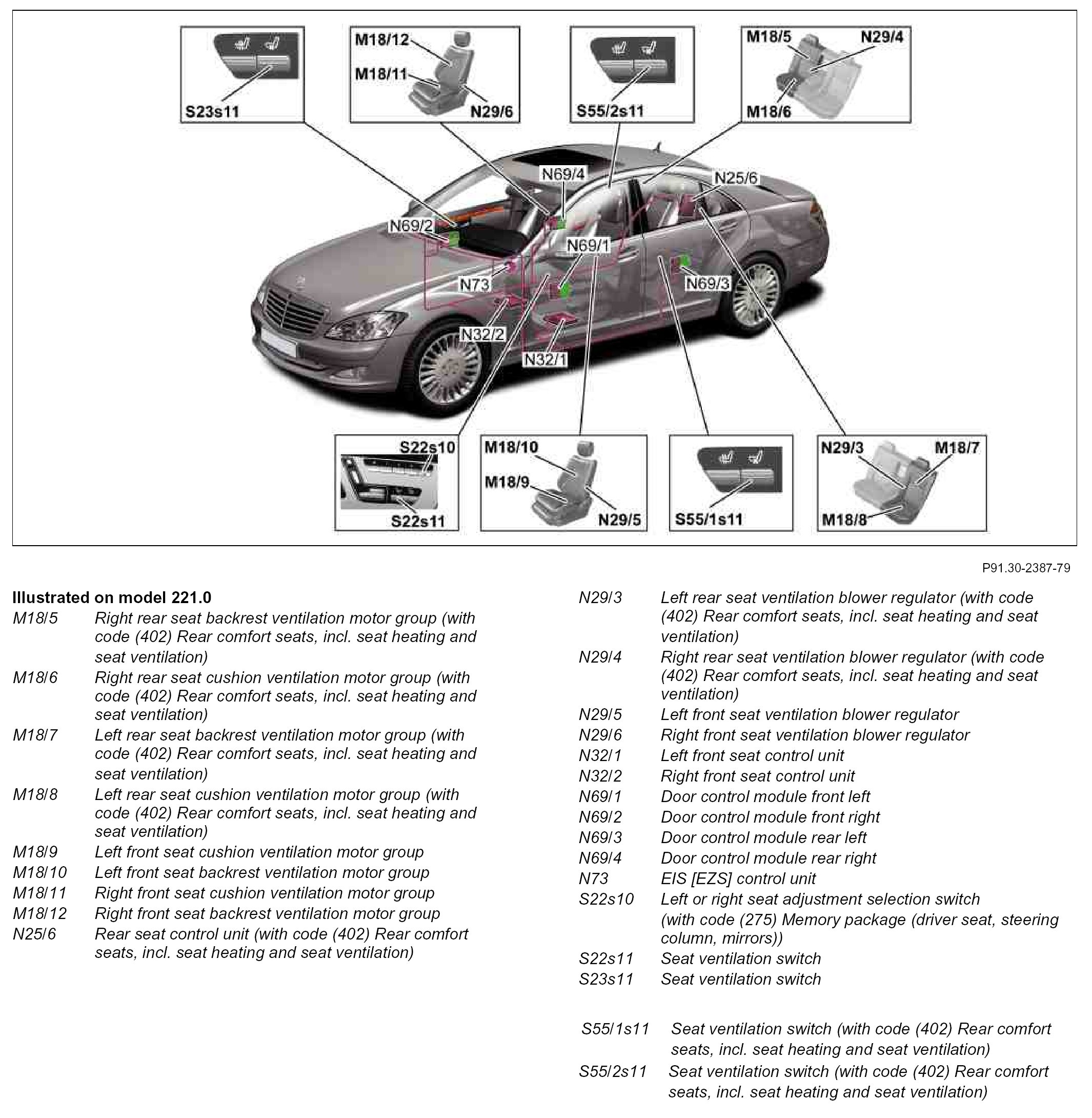

Component Identification:
