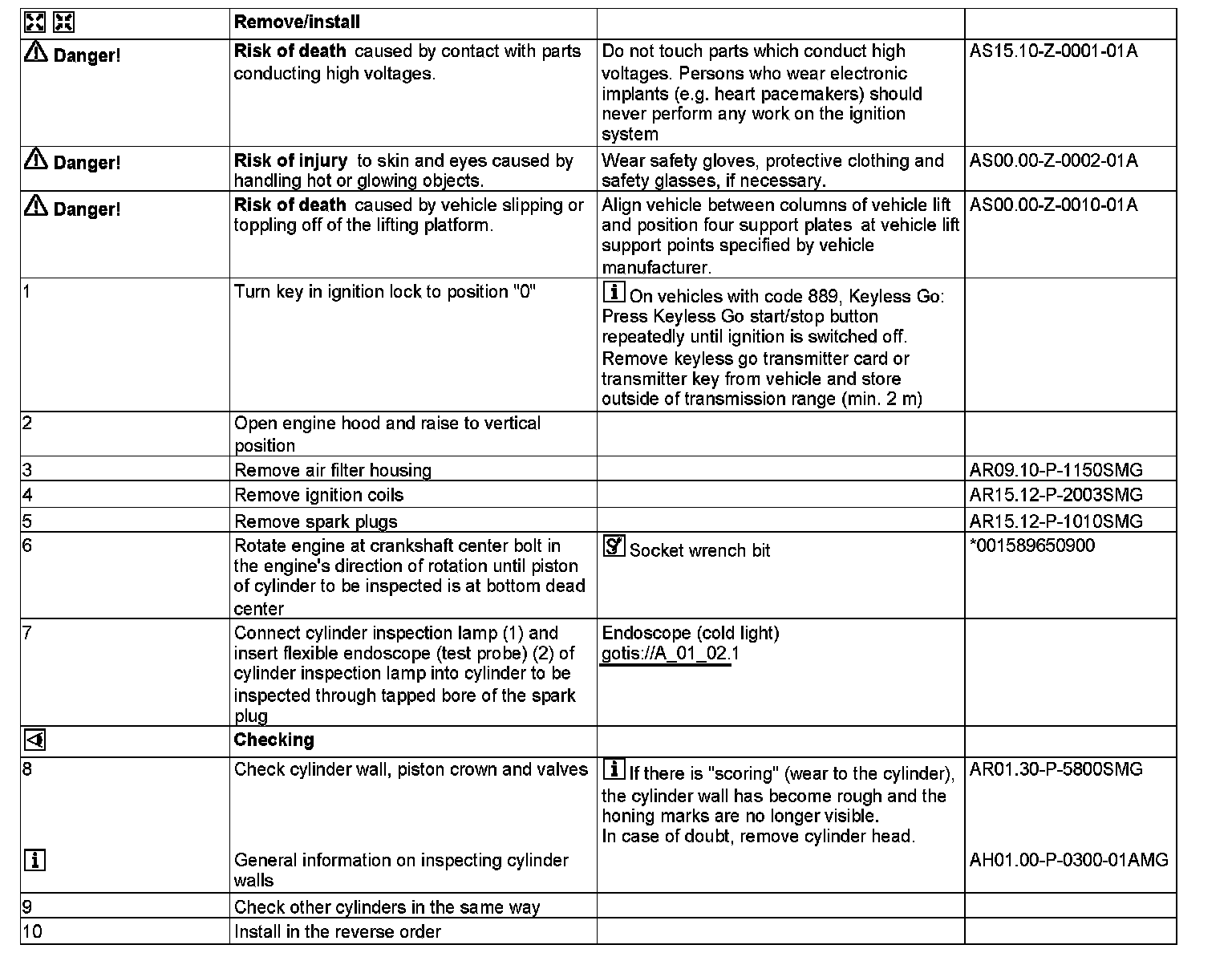

AR01.00-P-0200SMG Inspecting Cylinders With A Light Probe
AR01.00-P-0200SMG Inspecting Cylinders With A Light Probe
AR01.00-P-0200SMG Inspecting Cylinders With A Light Probe
ENGINES 156 in MODEL 216, 221

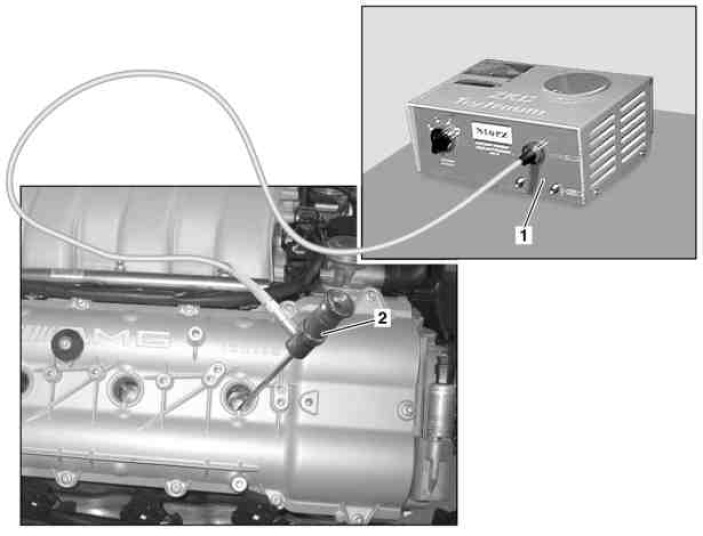

1 Cylinder inspection lamp
2 Flexible endoscope (test probe)
001 589 65 09 00
Wrench socket
