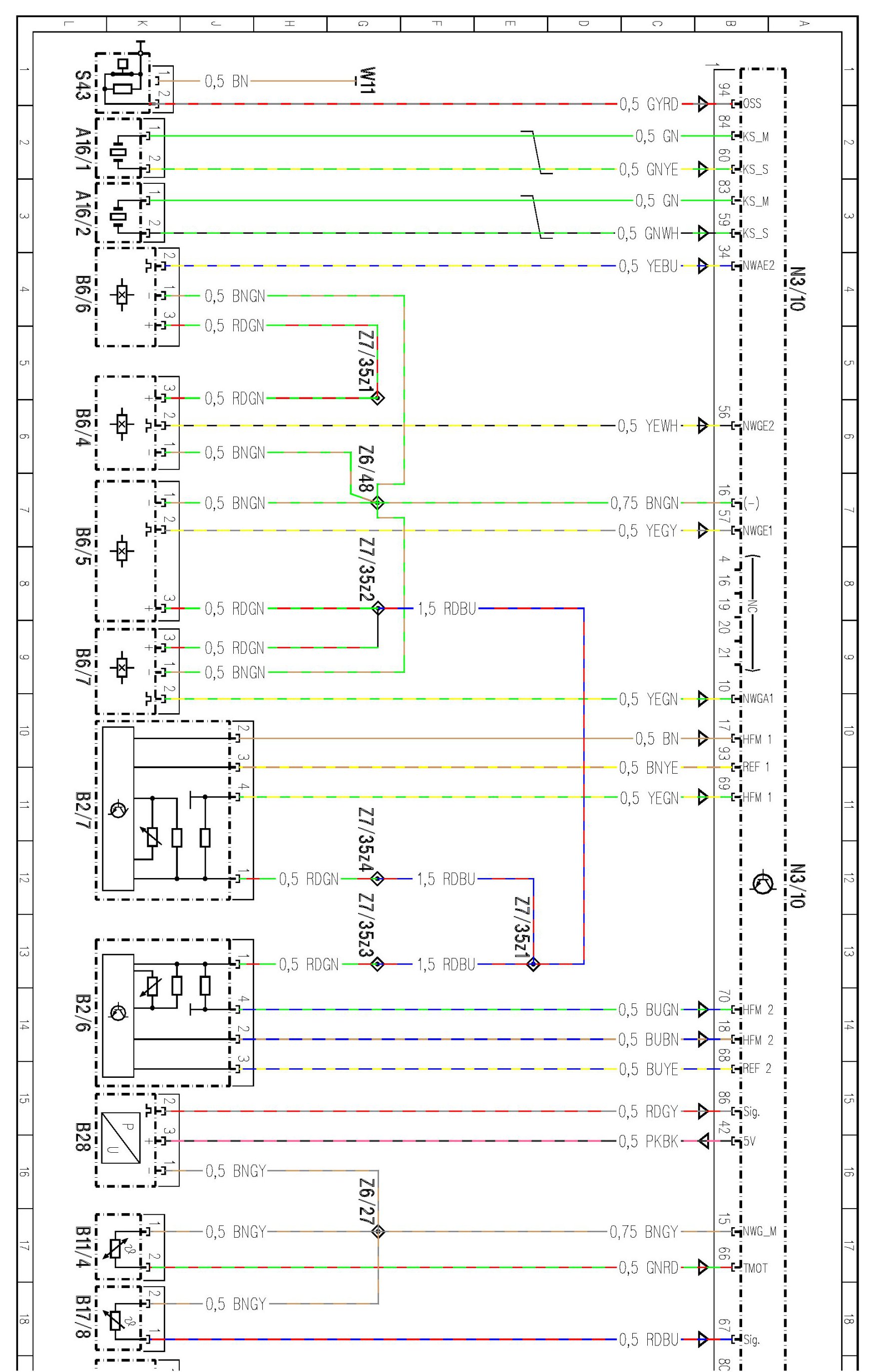

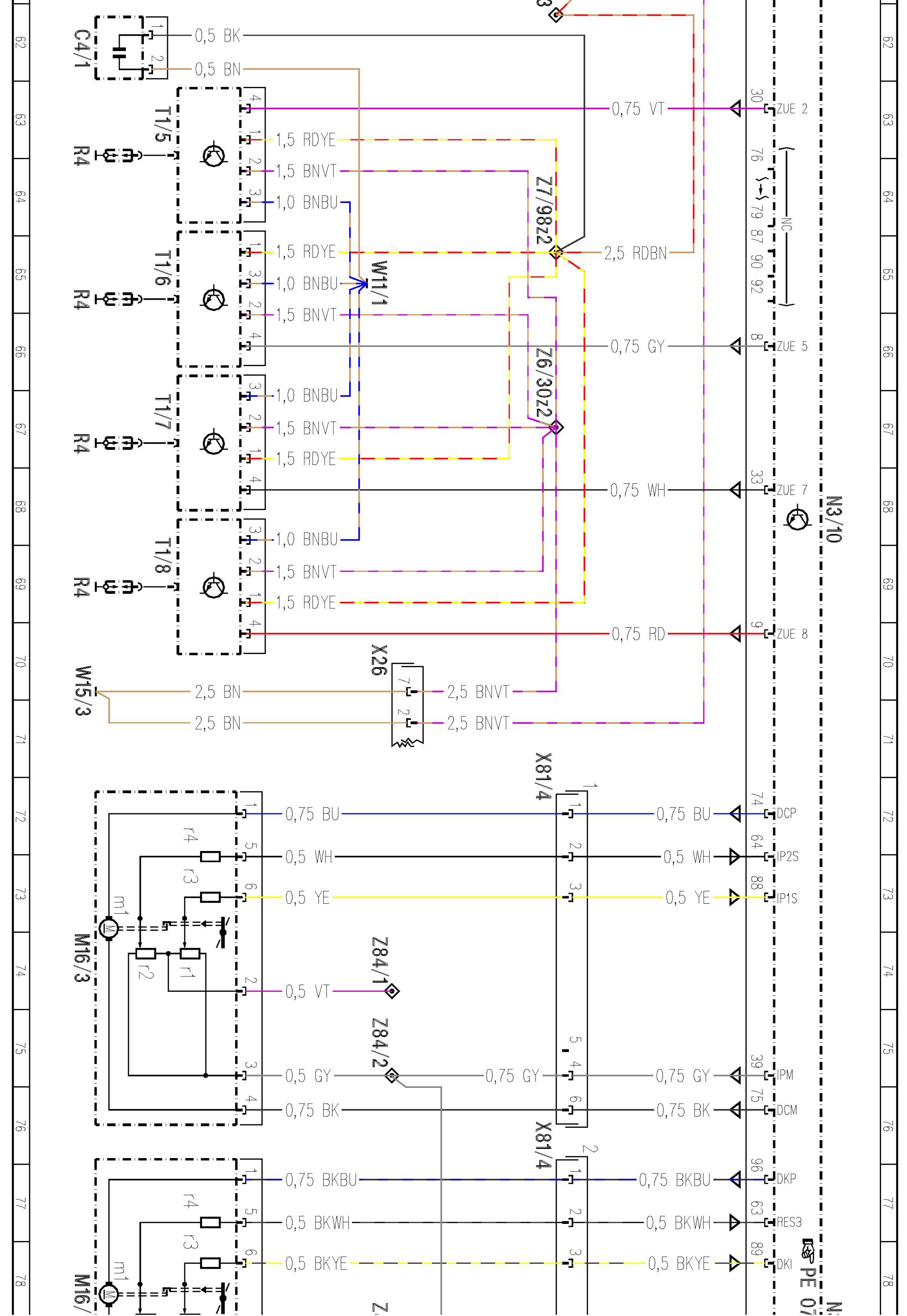

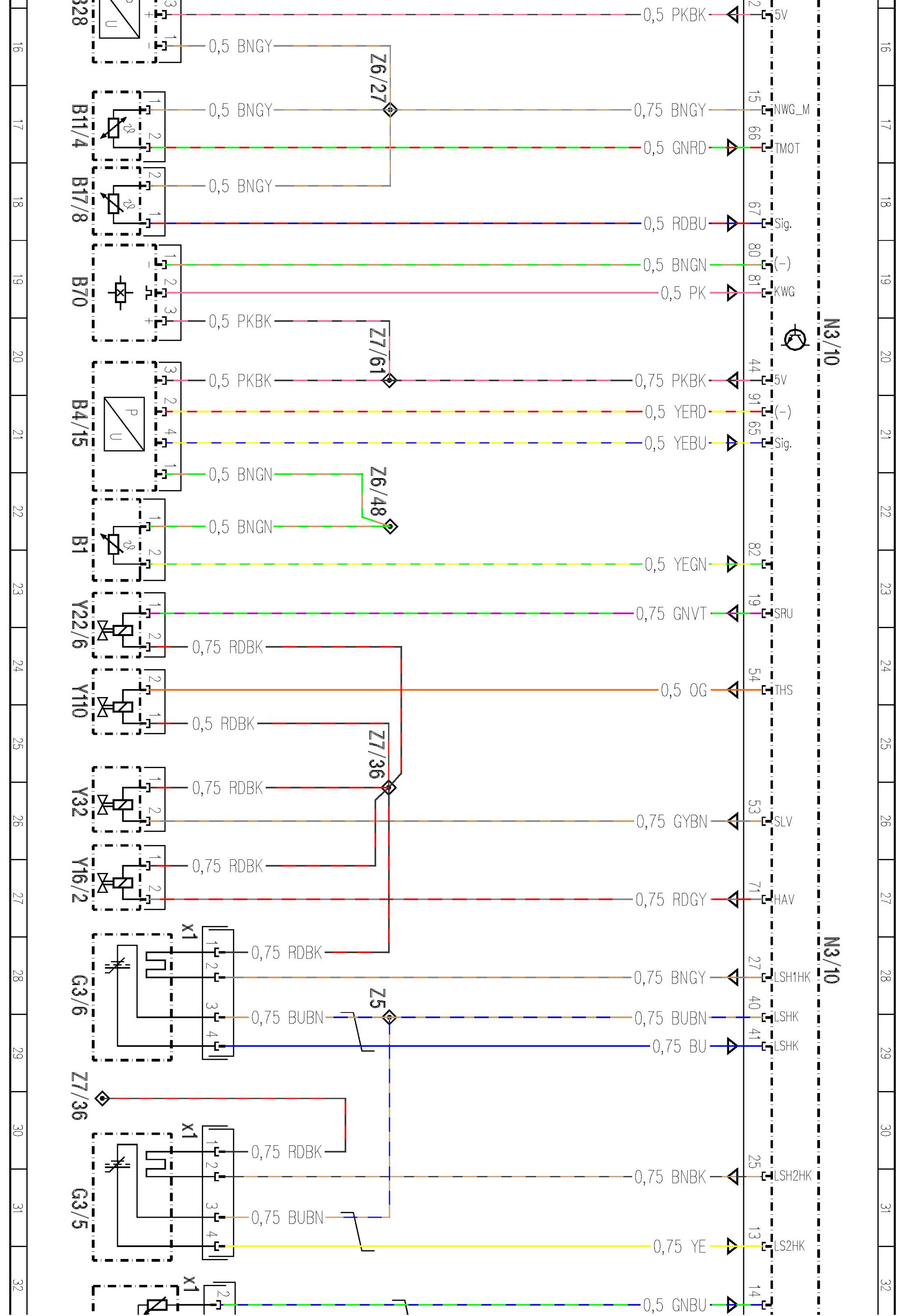

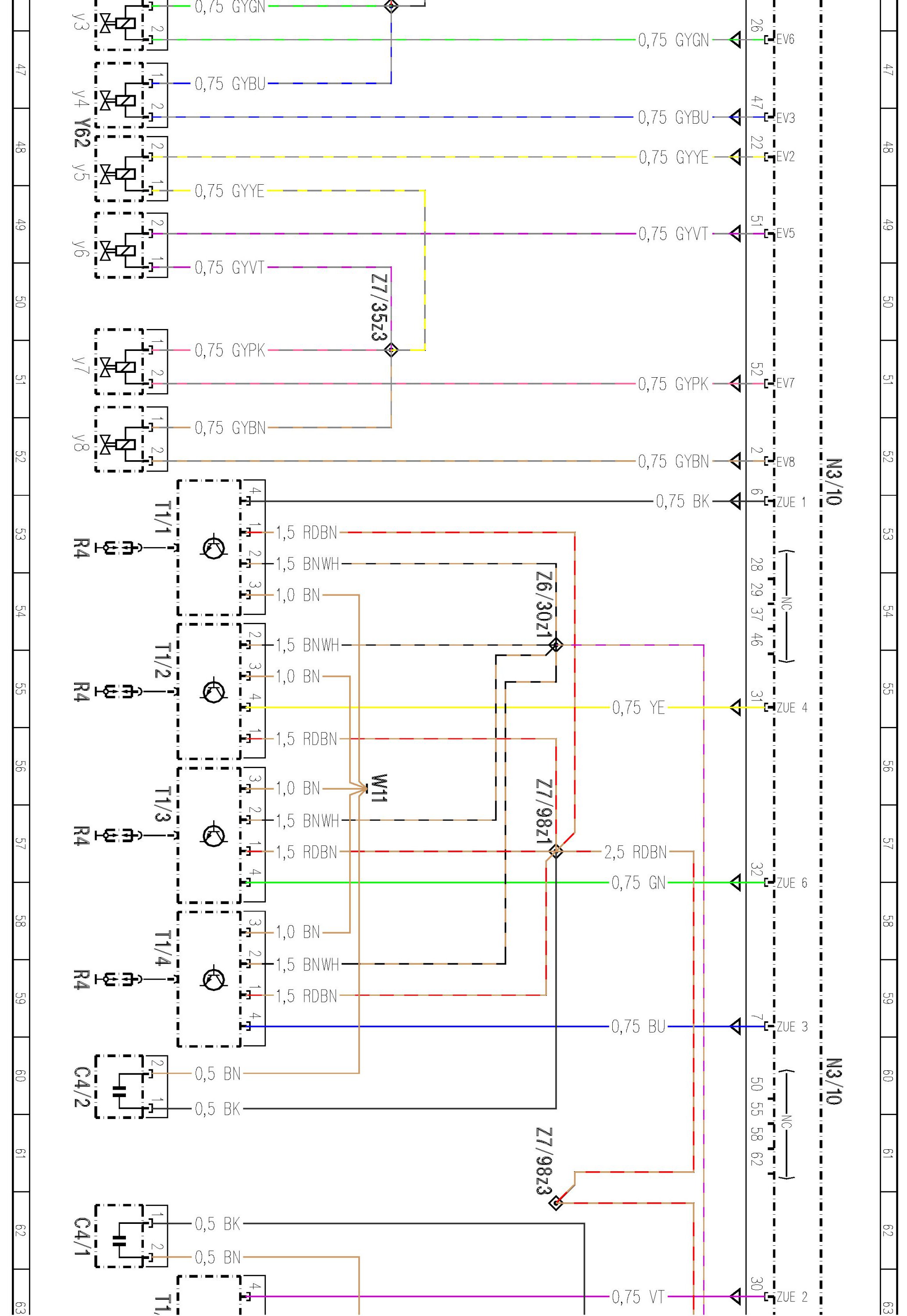

PE07.61-U-2101SAG ME-SFI Fuel Injection and Ignition System Control Module

PE07.61-U-2101SAG ME-SFI Fuel Injection and Ignition System Control Module

ENGINE 156.984 in MODEL 221

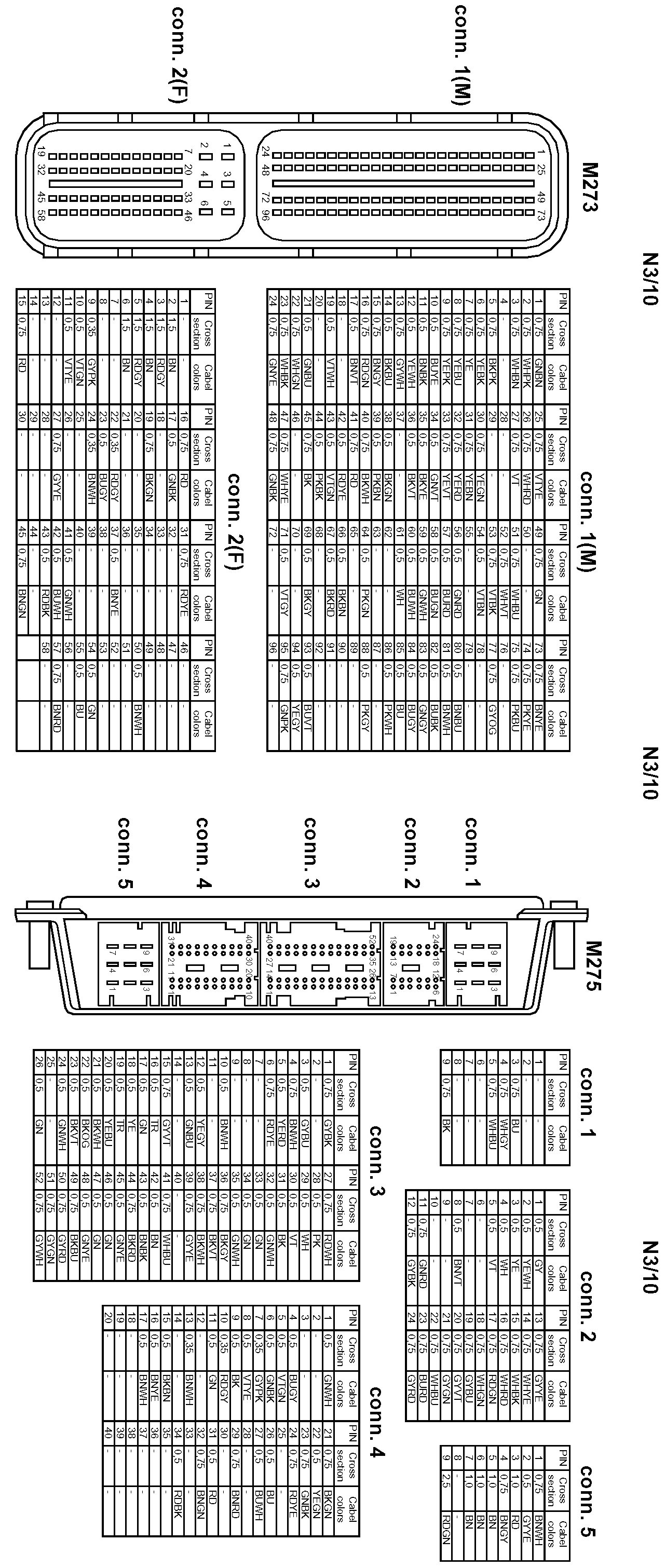

- ME 9.7, control unit N3/10, vehicle side

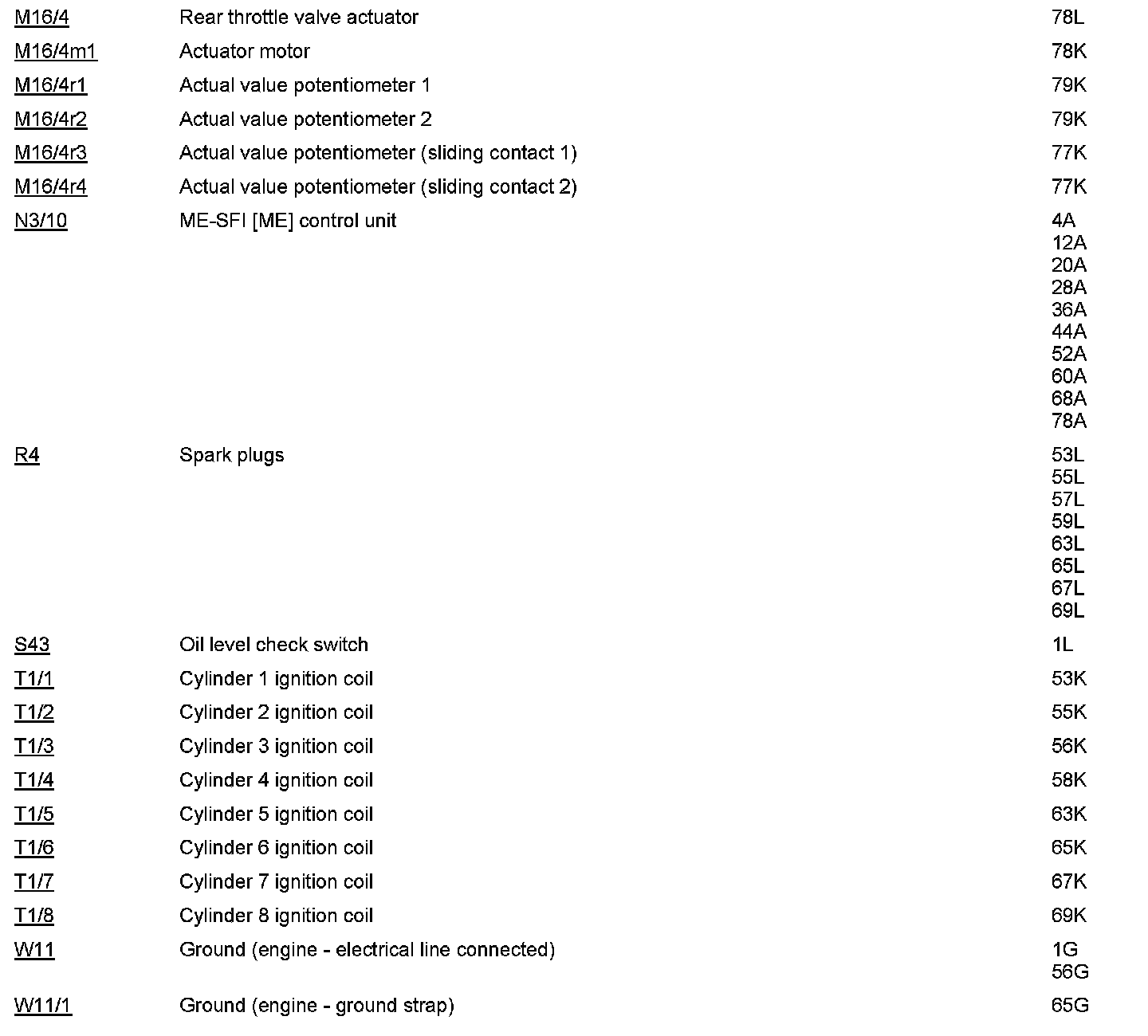

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
