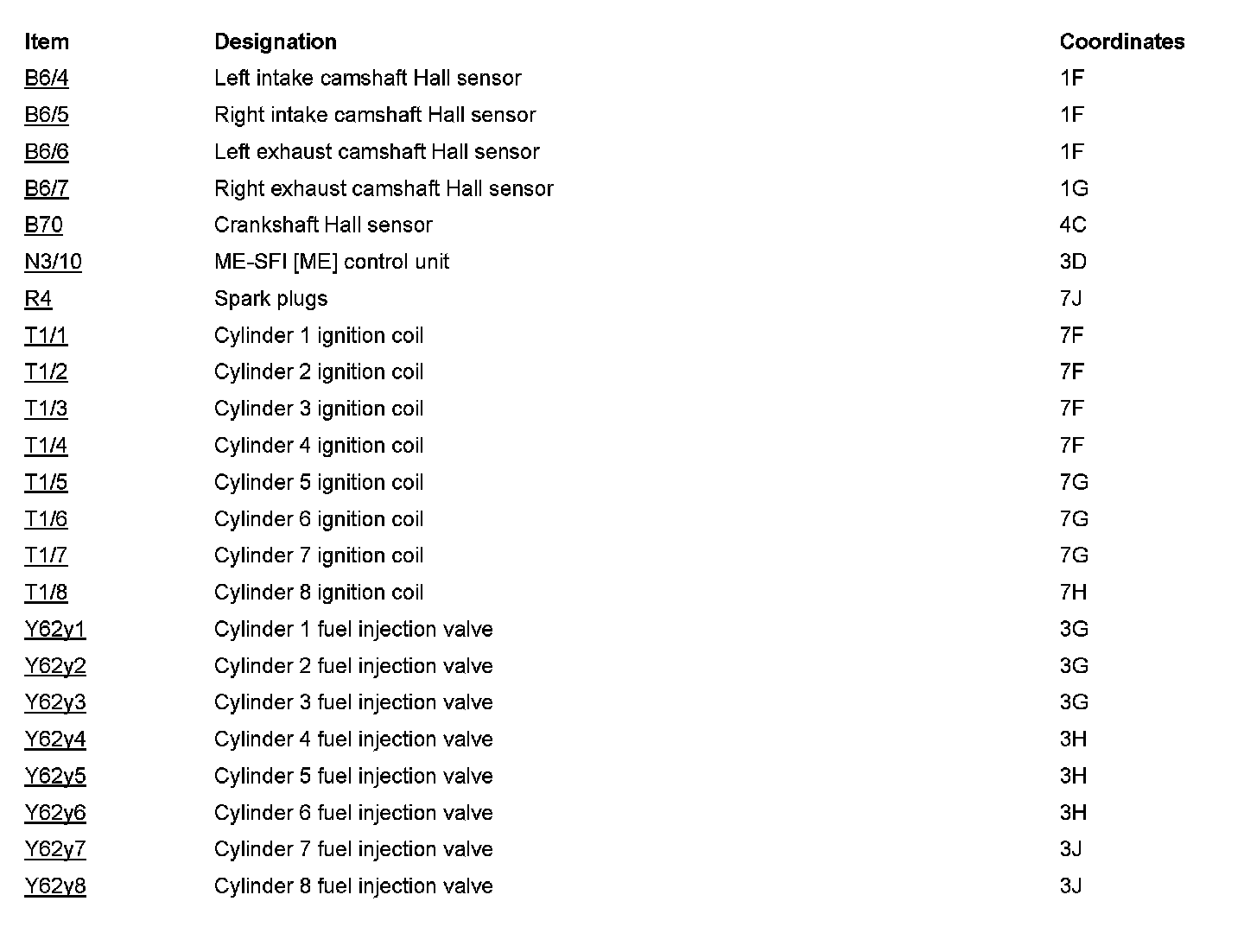

PE07.61-U-2771SAC Electrical Function Diagram For Synchronization of ME Injection and Firing Order

PE07.61-U-2771SAC Electrical Function Diagram For Synchronization of ME Injection and Firing Order

ENGINE 156 in MODEL 221
- as of Model Year 2009















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
