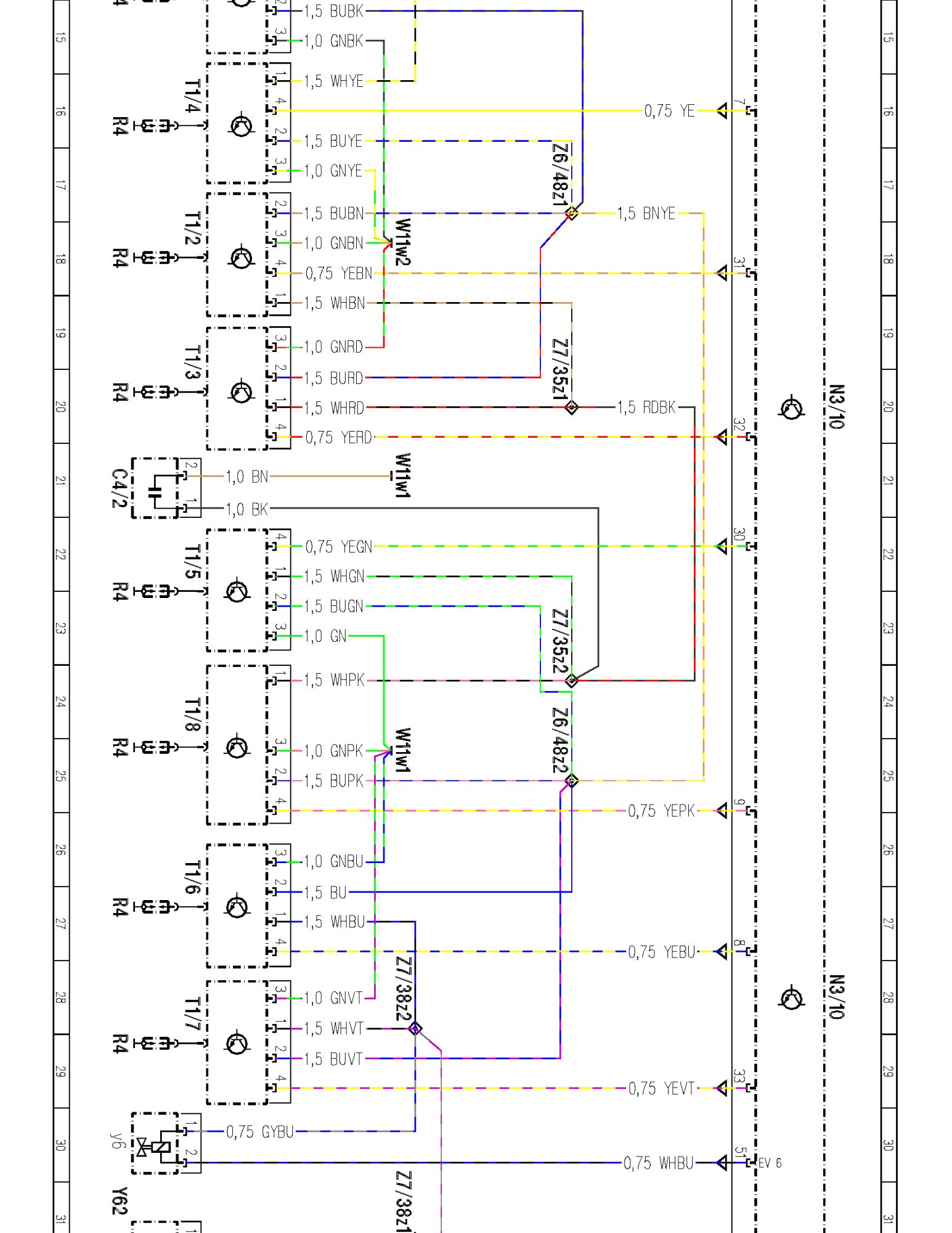

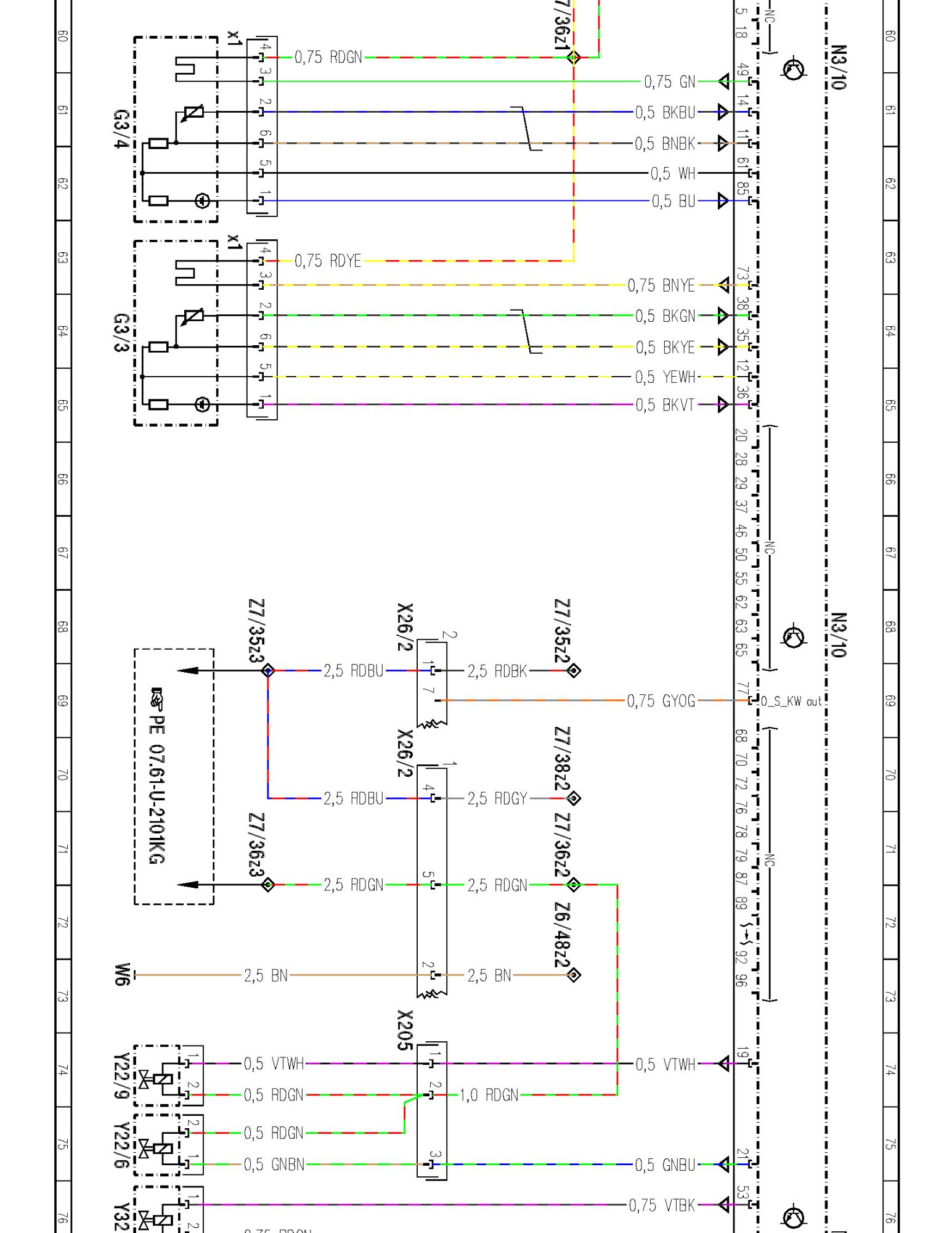

PE07.61-U-2101KI ME-SFI Fuel Injection and Ignition System, Control Module

PE07.61-U-2101KI ME-SFI Fuel Injection and Ignition System, Control Module
- 273 as of 03/01/06
- ME 9.7
- Sheet 2











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
