PE54.15-P-2103KF Rear Fuse and Relay Box Wiring Diagram

Rear Fuse And Relay Box Wiring Diagram PE54.15-P-2103KF
- Feed-in of fuses in fuse box in rear
- K40/5
- refinement package
- as of model year 2009

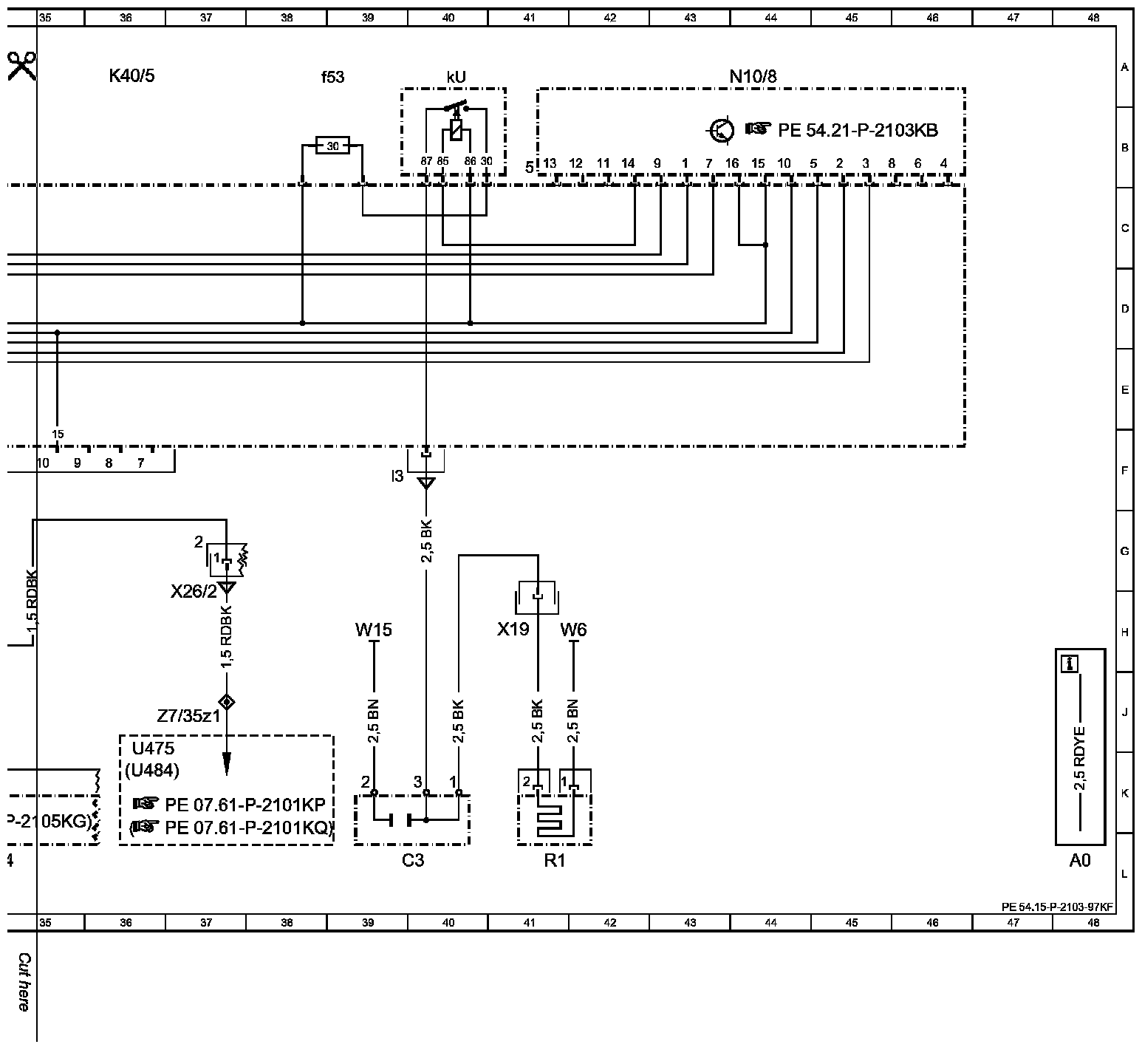

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

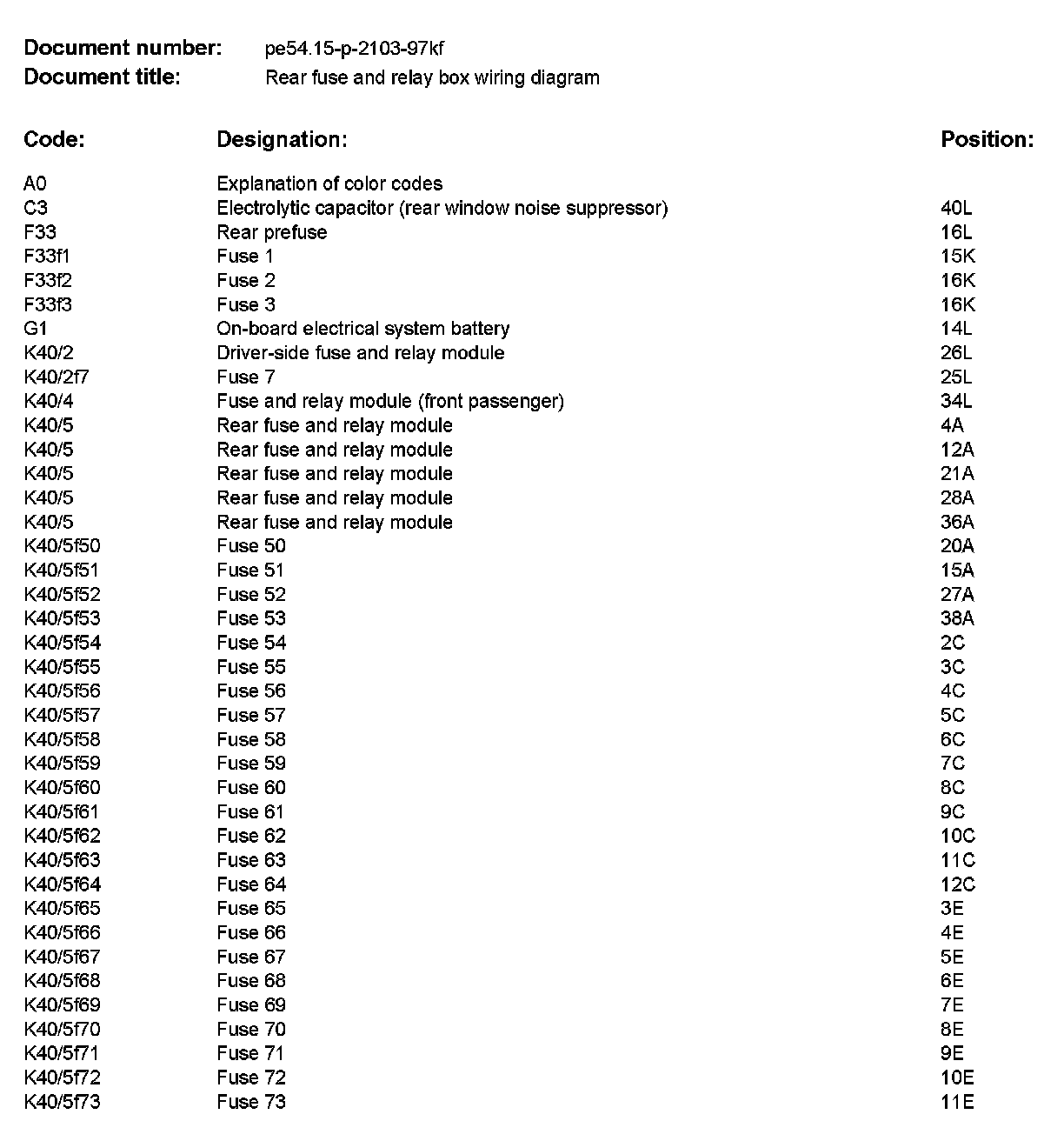

Component Description/Coordinates, A0 To K40/5f73:

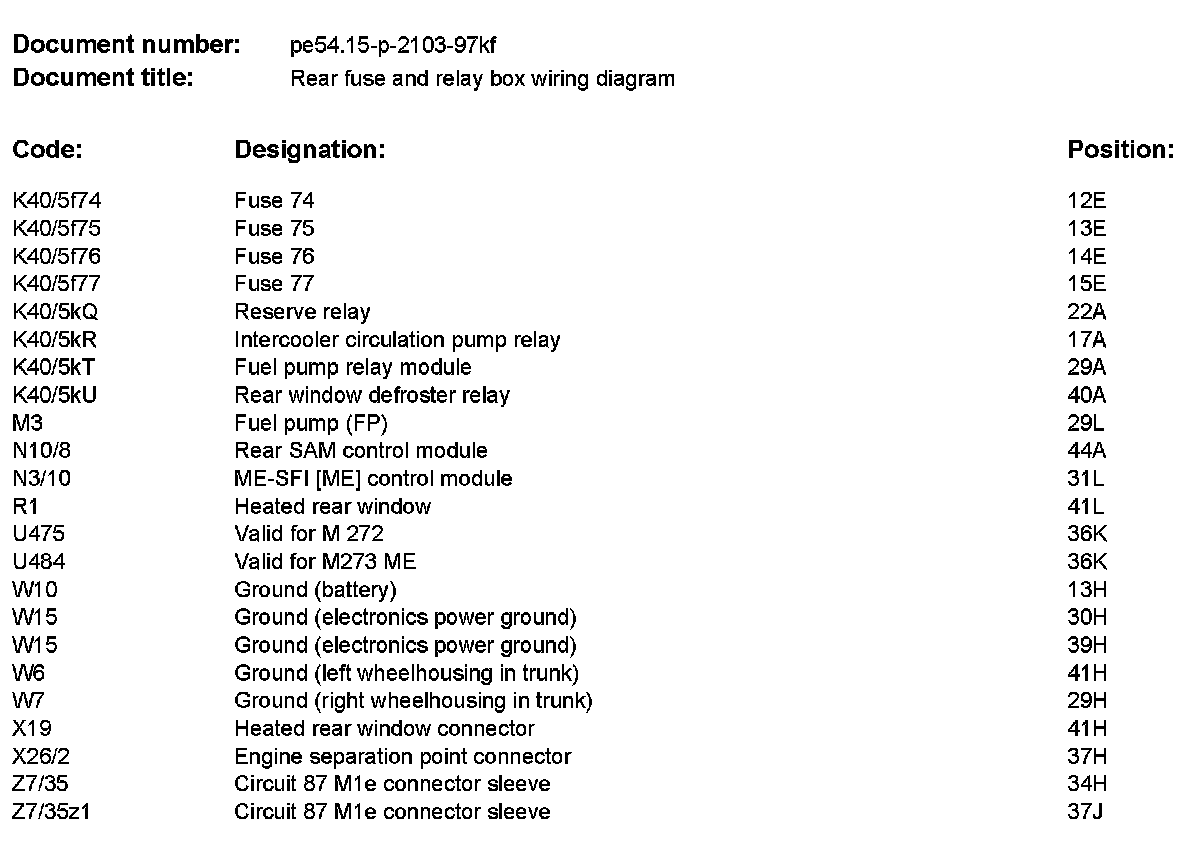

Component Description/Coordinates, K40/5f74 To Z7/35z1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
