PE54.15-P-2105KG Wiring Diagram of Passenger-Side Fuse and Relay Box

Wiring Diagram Of Passenger-Side Fuse And Relay Box PE54.15-P-2105KG
- Feed-in of fuses in front passenger fuse box
- K40/4
- as of 1.3.08

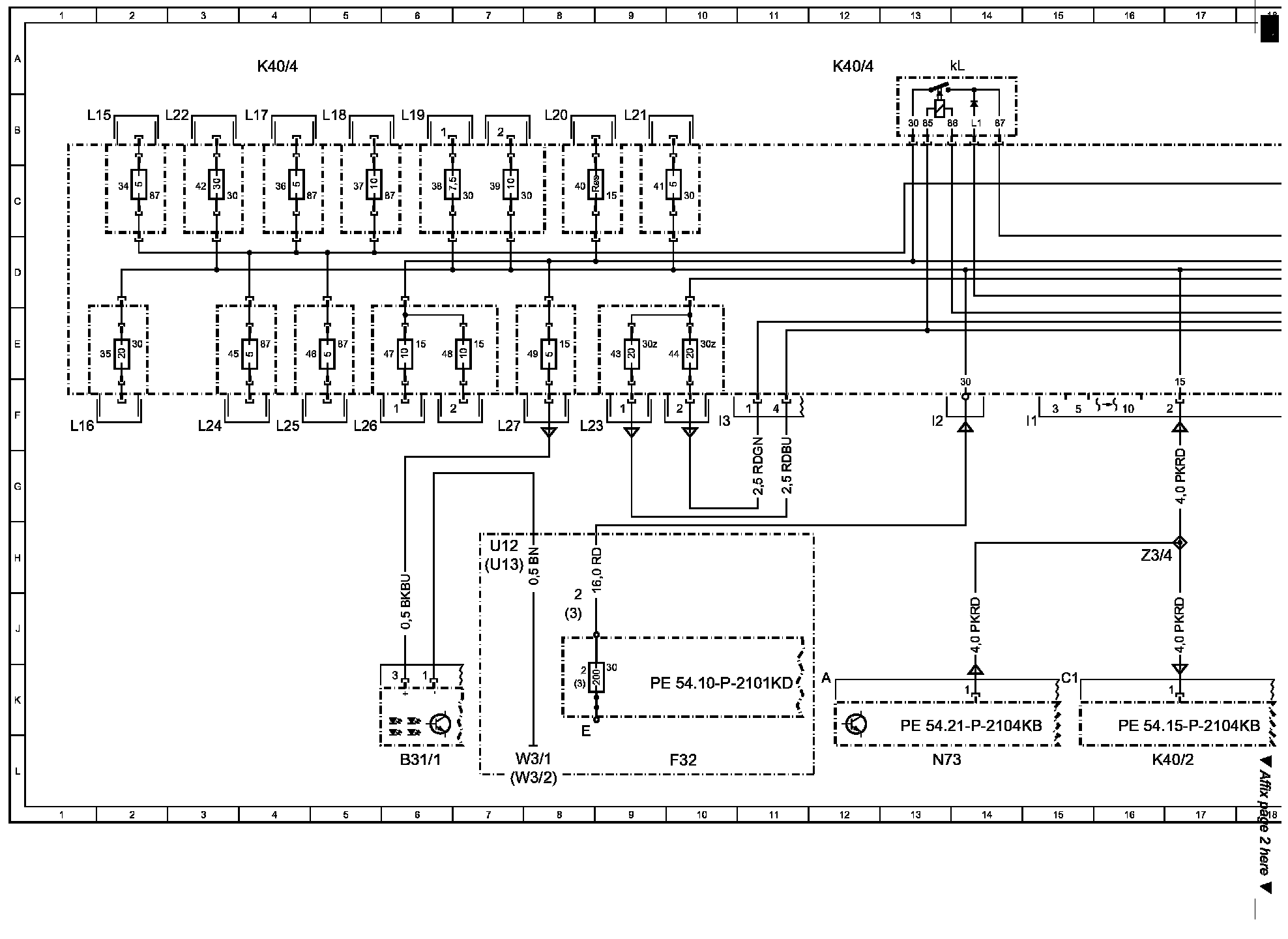

Wiring Diagram (Part 1):

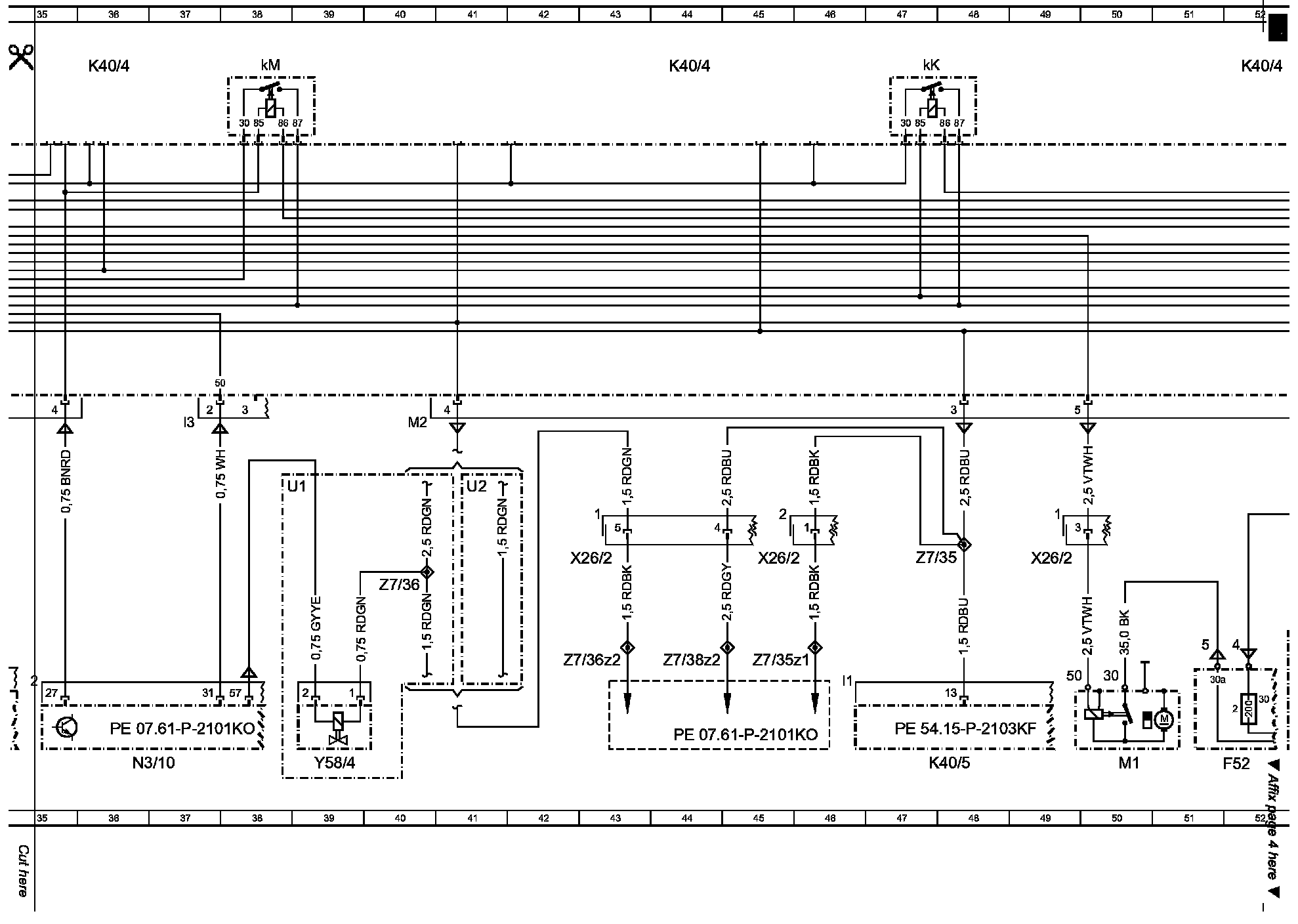

Wiring Diagram (Part 2):

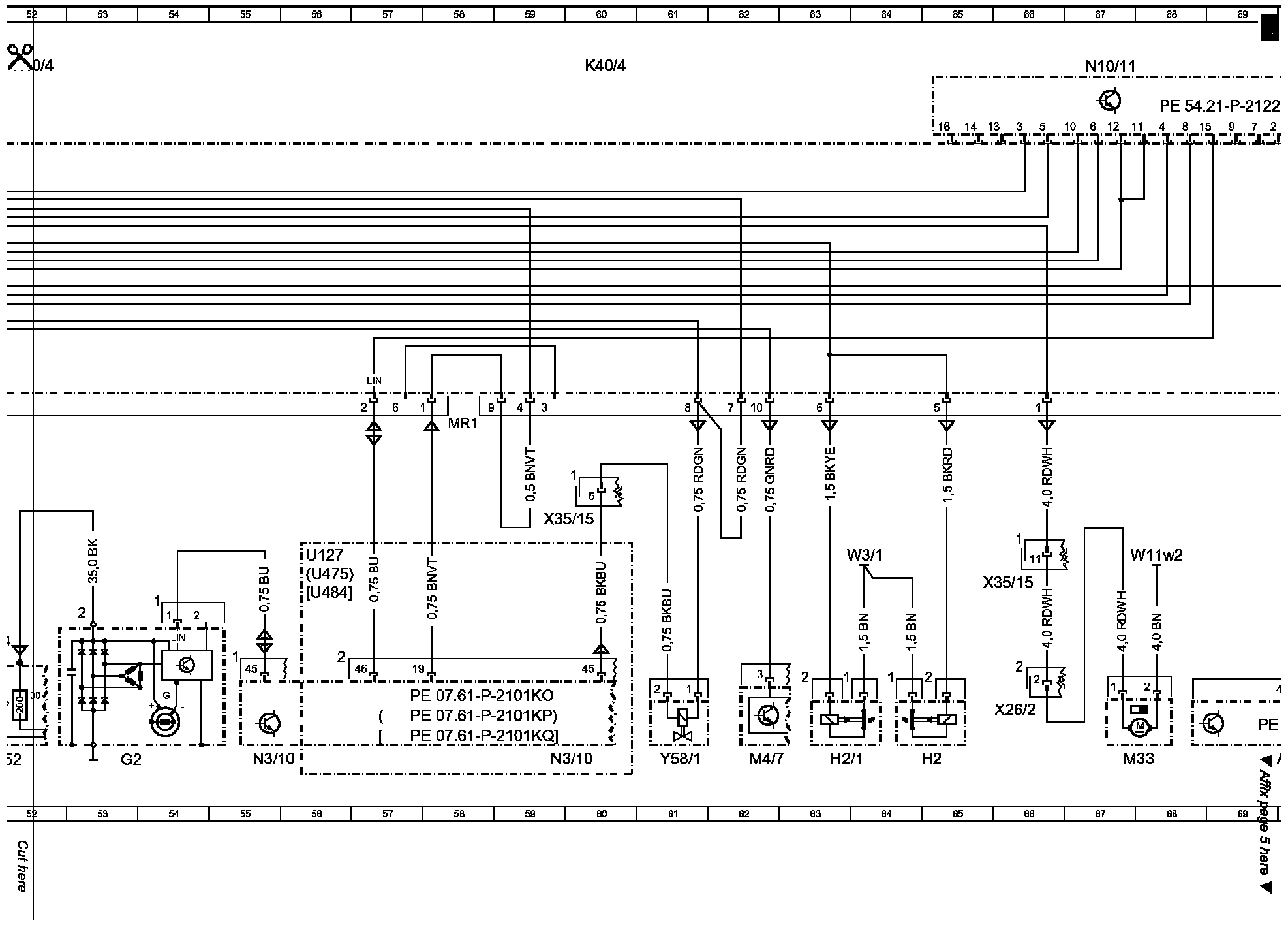

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

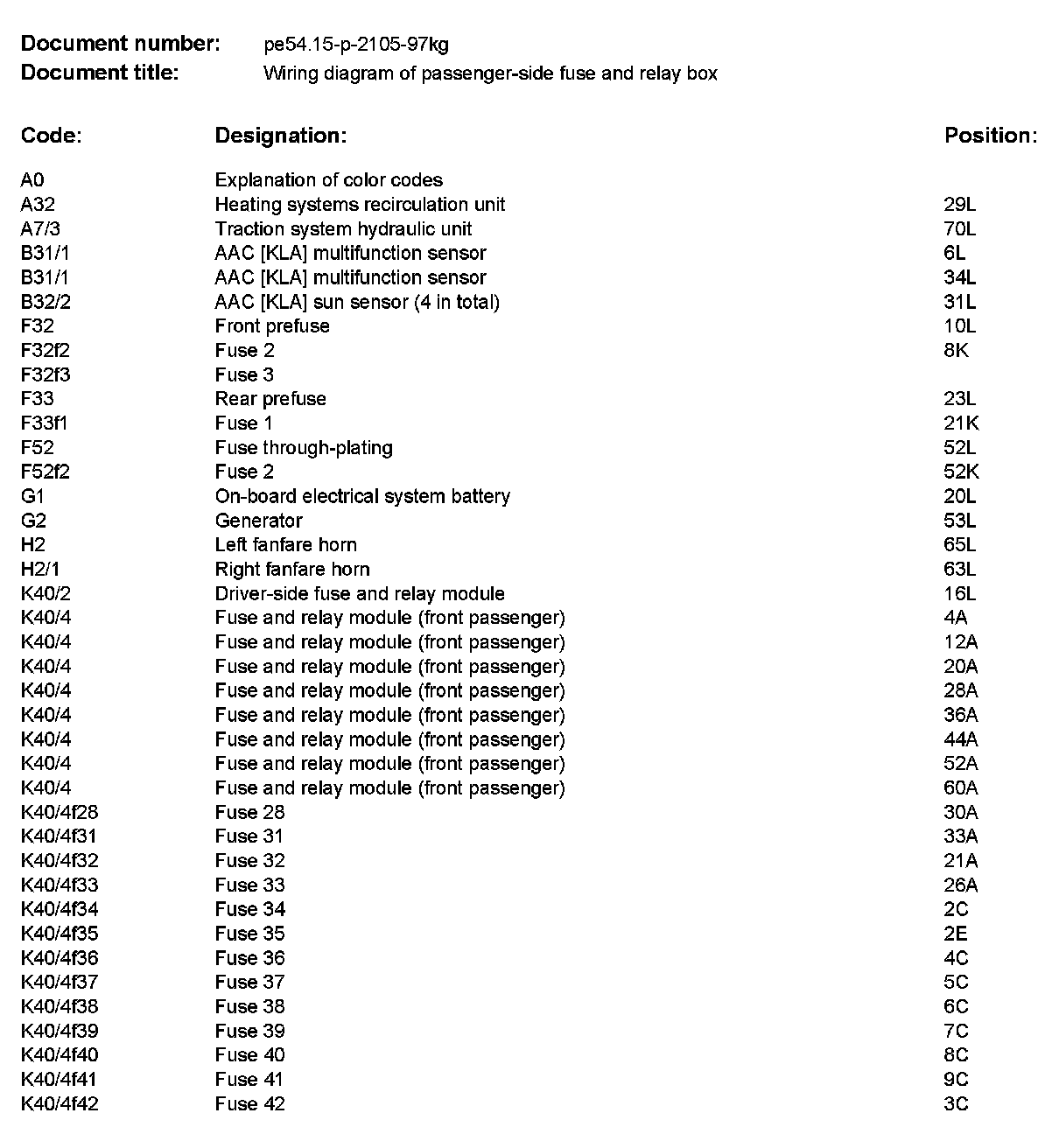

Component Description/Coordinates, A0 To K40/4f42:

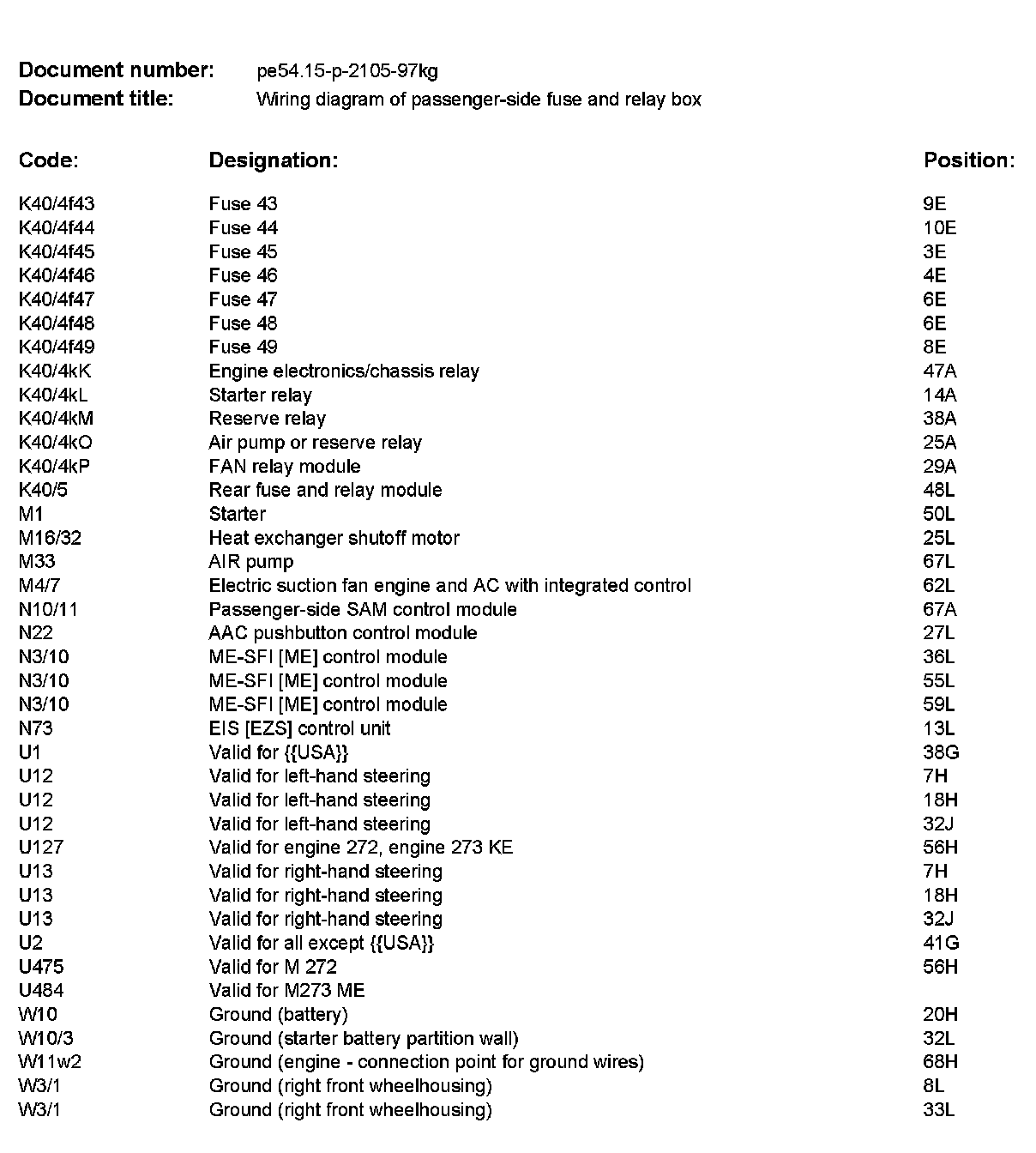

Component Description/Coordinates, K40/4f43 To W3/1:

Component Description/Coordinates, W3/1 To Z7/38z2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
