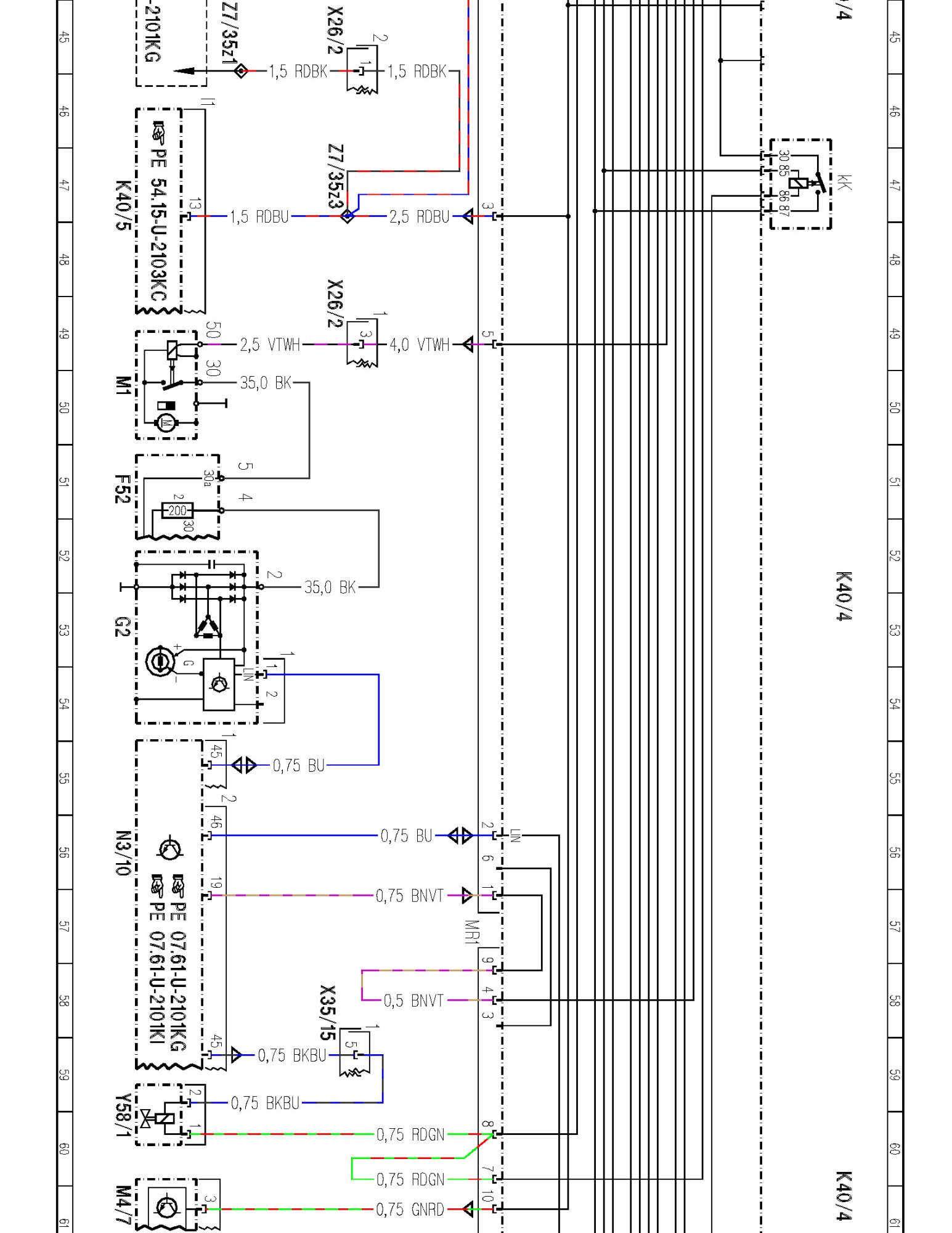

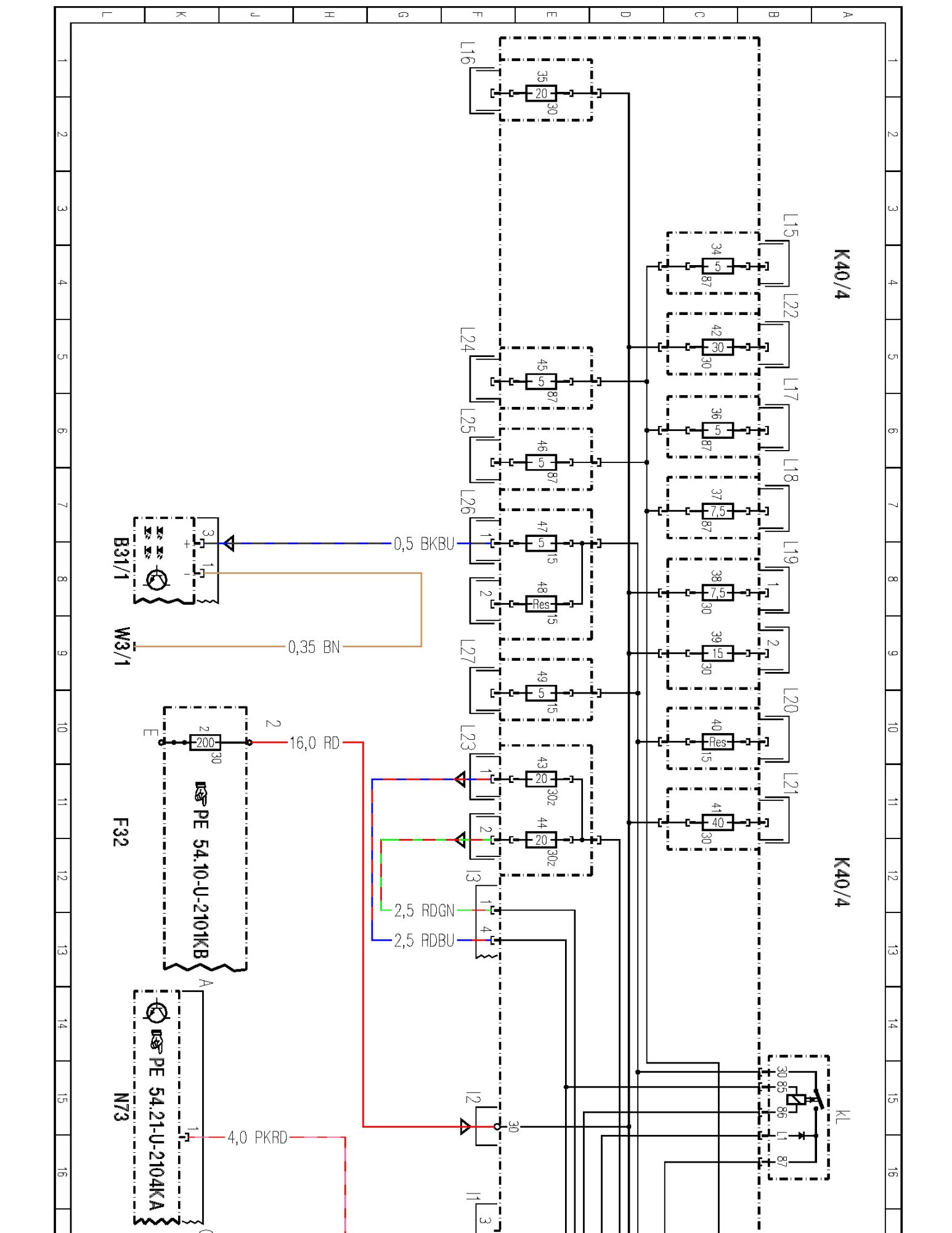

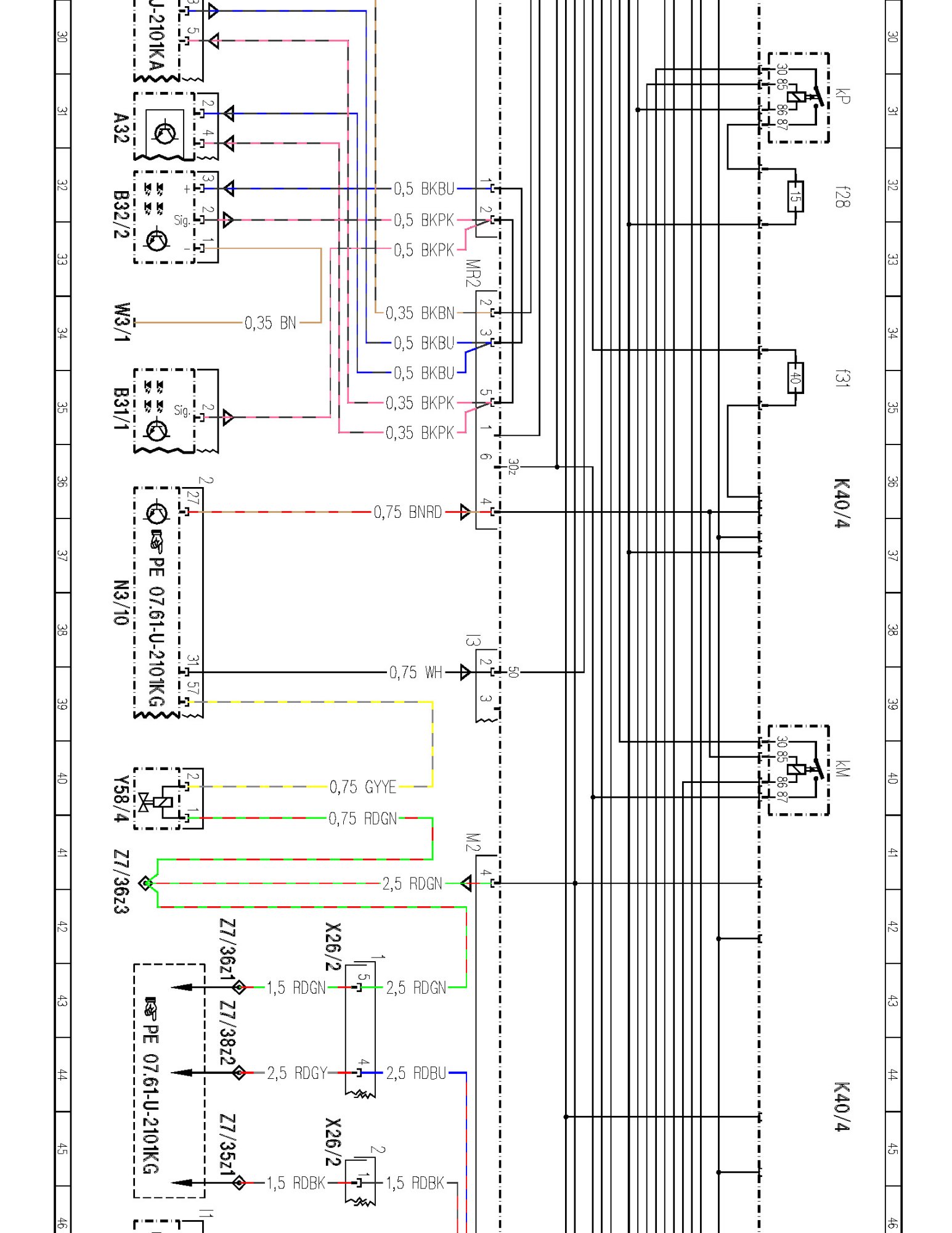

PE54.15-U-2105KD Passenger-Side Fuse and Relay Box

PE54.15-U-2105KD Passenger-Side Fuse and Relay Box
- as of 03/01/06



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
