Vanity Lamp: Description and Operation

GF82.20-P-5075RI Vanity Mirror Illumination, Component Description

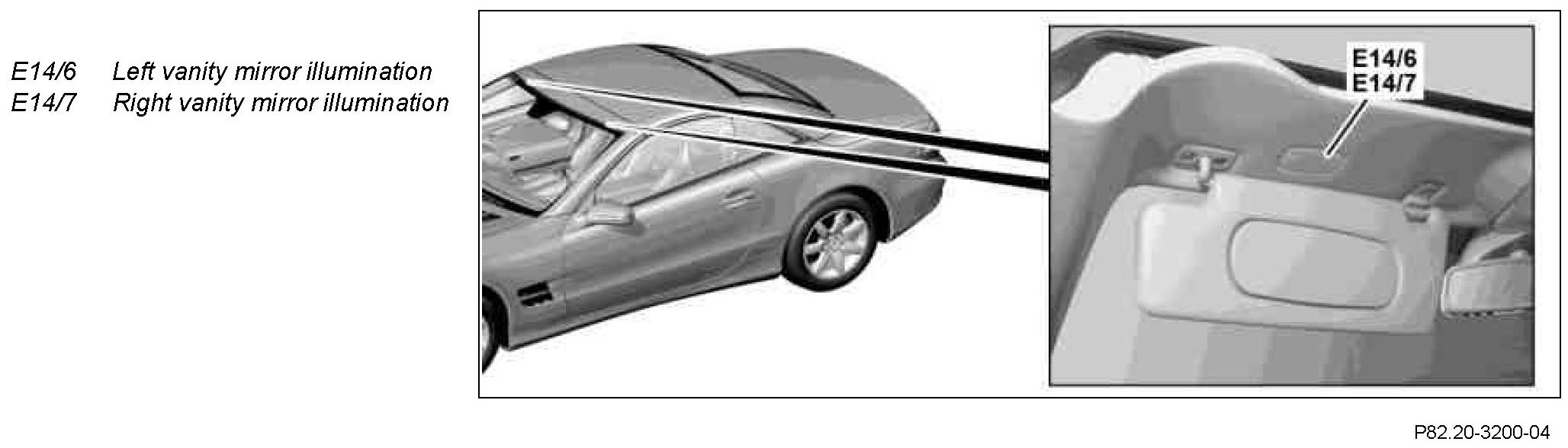

Component Identification:

Location
The vanity mirror illumination is located above the sun visors in the windshield trim.

Task
The vanity mirror illumination is used to illuminate the facial area when using the vanity mirrors that are integrated in the sun visor.

The power supply to the vanity mirror illumination comes from the overhead control panel control unit (N70).
